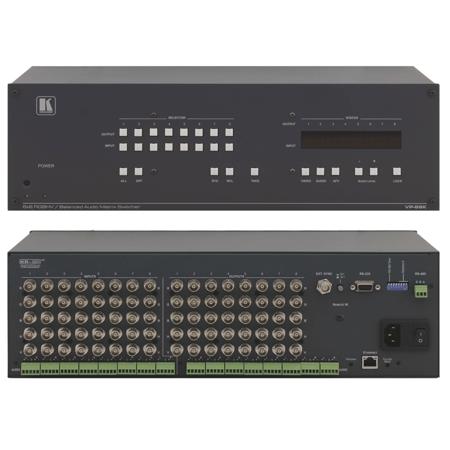

Kramer Electronics VP-88K 8x8 RGBHV and Balanced Stereo Audio Matrix Switcher
See all Kramer Electronics items
20% Off

Kramer Electronics VP-88K 8x8 RGBHV and Balanced Stereo Audio Matrix Switcher

SKU: KRVP88K110V MFR: VP-88K/110V
Be the first to review this itemAsk a Question
$2,980.00
$3,725.00
Save: $745 (20%)
OR
$249/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Easily manage your AV setup with this 8x8 RGBHV video matrix switcher.
  • Enjoy high-quality video with a wide 350MHz bandwidth for crisp images.
  • This audio matrix supports balanced stereo, perfect for pro audio setups.
  • Control via front panel, RS-232, RS-485, or Ethernet for easy integration.
  • Minimize signal interference with a crosstalk of -47dB at 5MHz for video.
  • Achieve reliable connections in presentation and production applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics VP-88K Specifications

  • Applications

    Professional display systems requiring true 8x8 computer graphics and audio matrix operation
    Multimedia and presentation source and acceptor selection
    Presentation and production applications

  • Inputs

    8x3 RGB video, 0.7Vpp/75 Ohms on BNC connectors
    1x Sync genlock with sync select switch, 1Vpp on a BNC connector
    8x2 Hs & Vs, TTL level/510 Ohms on BNC connectors
    8x Balanced stereo audio, 2.2V at 10 kOhms on detachable terminal blocks

  • Outputs

    8x3 RGB video, 0.7Vpp/75 Ohms on BNC connectors
    8x2 Hs & Vs, TTL level/75 Ohms on BNC connectors
    8x Balanced stereo audio, 2.2V at 150 Ohms on detachable terminal blocks

  • Maximum Output Level

    Video: 2.4Vpp (RGB)
    Audio: 15Vpp at 150 Ohms

  • Bandwidth (-3dB)

    Video: 350MHz, fully loaded
    Audio: 22kHz

  • S/N Ratio

    Video: 74dB
    Audio: 81dB at1kHz

  • Crosstalk (all Hostile)

    Video: -47dB at 5MHz
    Audio: <-57dB at 20kHz

  • Diff. Gain

    0.0005

  • Diff. Phase

    0.05 deg.

  • Controls

    Front panel buttons, RS-232, RS-485 or Ethernet

  • Audio THD

    0.089% (1V, 1kHz)

  • Power Consumption

    100-240V AC, 50/60Hz, 23VA

  • Dimensions (WxDxH)

    43.6 x 18.40 x 13.25cm (17.17 x 7.24 x 5.22")

  • Weight

    8.4 lbs (3.81kg)

  • UPC Code

    7291063007799

About Kramer Electronics VP-88K

The VP-88K is a high-performance matrix switcher for RGBHV video and balanced stereo audio signals. The unit can route any or all inputs to any or all outputs simultaneously.

High Bandwidth
350MHz (-3dB) fully loaded.

Kr-isp Advanced Sync Processing
Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp advanced sync processing can be enabled or disabled.

Audio Gain Level Controls
Independent gain control of each input and output channel, to match various source levels.

Take Button
Executes a queue of multiple switches all at once.

Memory Locations
Stores multiple switches as presets (salvos) to be recalled and executed when needed.

Flexible Control Options
Front panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, IR remote control (included), external IR remote receiver (optional).

Worldwide Power Supply
100-240V AC.

Standard 19" Rack Mount Size
3U. Rack "ears" included.

Kramer Electronics VP-88K Features

  • HDTV Compatible
  • Vertical Interval Switching
  • Audio Breakaway Switching
  • Kr-isp Sync Processing
  • Genlock Input
  • Control: RS-232, RS-485, Ethernet & IR

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easily manage your AV setup with this 8x8 RGBHV video matrix switcher.
  • Enjoy high-quality video with a wide 350MHz bandwidth for crisp images.
  • This audio matrix supports balanced stereo, perfect for pro audio setups.
  • Control via front panel, RS-232, RS-485, or Ethernet for easy integration.
  • Minimize signal interference with a crosstalk of -47dB at 5MHz for video.
  • Achieve reliable connections in presentation and production applications.

What's in the box:

  • Kramer Electronics VP-88K 8x8 RGBHV and Balanced Stereo Audio Matrix Switcher
  • Power Cord
  • Rack Ears
  • Windows Based Configuration Software
  • User Manual
  • Kramer Electronics 7 Year Limited Warranty
