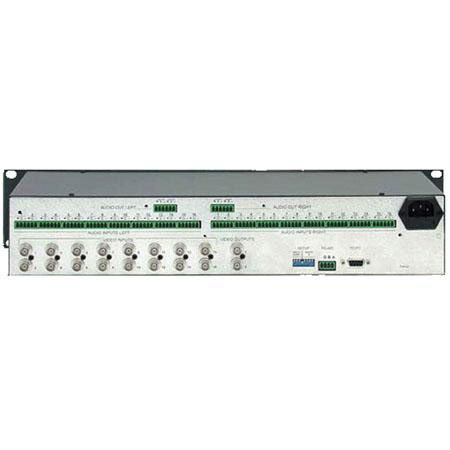

Kramer Electronics Kramer VS1002XL 10x2 Video/Audio Stereo Matrix Switcher
See all Kramer Electronics items

Kramer Electronics VS-1002XL 10x2 Composite Video & Balanced Stereo Audio Matrix Switcher

SKU: KRVS1002XL
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics VP-553: Picture 1 regular
Kramer Electronics VP-553 Boardroom Presentation Switcher/Dual Scaler
$3,595.00

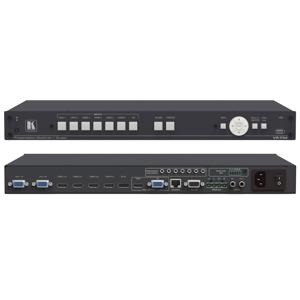

Kramer Electronics VP-734: Picture 1 regular
Kramer Electronics VP-734 7-Input ProScale Presentation Switcher/4K30 UHD Scaler
$2,145.00$1,716.00

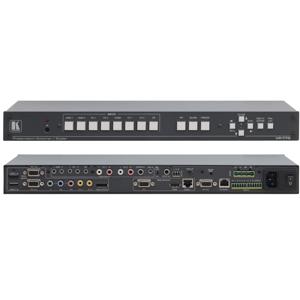

Kramer Electronics VP-770: Picture 1 regular
Kramer Electronics VP-770 8-Input ProScale Presentation Switcher/Scaler
$1,864.00$1,099.00

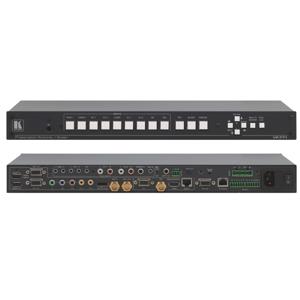

Kramer Electronics VP-771: Picture 1 regular
Kramer Electronics VP-771 9-Input ProScale Switcher/Scaler with Speaker Outputs
$2,664.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary function of the Kramer VS-1002XL 10x2 Composite Video & Balanced Stereo Audio Matrix Switcher?

The primary function of the Kramer VS-1002XL is to manage and control multiple composite video and balanced stereo audio signals. It offers glitch-free transitions during the vertical interval, making it ideal for professional AV setups.

What makes the Kramer VS-1002XL Matrix Switcher stand out in the realm of audio and video equipment?

The Kramer VS-1002XL stands out due to its high-performance capabilities, robust design, and advanced features. It ensures seamless integration for broadcasting and multimedia presentations, making it a reliable solution for controlling multiple signal sources.

Who can benefit from using the Kramer VS-1002XL 10x2 Composite Video & Balanced Stereo Audio Matrix Switcher?

The Kramer VS-1002XL is perfect for anyone looking to manage multiple audio and video sources with ease and precision. It is ideal for use in home entertainment systems, professional broadcasting, and multimedia presentations.

What does 'genlocked source compatibility' mean?

Genlocked source compatibility means the Kramer VS-1002XL can synchronize with other devices that are genlocked, or synchronized to a common signal, to ensure glitch-free transitions and superior performance.

What does 'vertical interval switching' mean?

Vertical interval switching refers to the process of switching signals during the vertical interval, or the brief period when a video signal is not visible on the screen. This ensures glitch-free transitions when changing between different sources.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VS-1002XL Specifications

  • Input

    10 composite video, 1Vpp/75 Ohm on BNC connectors. 10 balanced (or unbalanced) audio stereo, + 4dBu/47k Ohm on detachable terminal blocks

  • Outputs

    2 composite video, 1Vpp/75 Ohm on BNC connectors. 2 balanced (or unbalanced) audio stereo, + 4dBu/50 Ohm (20 Vpp max.) on detachable terminal blocks

  • Video Bandwidth (-3dB)

    200MHz

  • Audio Bandwidth (-3dB)

    100kHz

  • Diff. Gain

    0.04%

  • Diff. Phase

    0.04 Deg

  • K-factor

    0.05%

  • Video S/N

    73dB

  • Audio S/N

    82dB unweighted, (1Vpp)

  • Video Crosstalk

    <60dB @ 5MHz

  • Non-linearity

    0.05%

  • Control

    Manual, RS-232 or RS- 485

  • Audio THD

    0.021% (1V, 1kHz)

  • 2nd Harmonic

    0.004%

  • Switching

    Vertical interval

  • Power Source

    230V AC, 50/60 Hz, (115V AC, U.S.A.) 10VA

  • Dimensions

    19-inch (W), 7-inch (D) 2U (H) rack mountable

  • Weight

    3.4 Kg (7.5 Lbs.) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VS-1002XL

The Kramer VS-1002XL 10x2 Composite Video & Balanced Stereo Audio Matrix Switcher is a top-tier, high-performance device designed to manage composite video and balanced stereo audio signals with precision and efficiency. This advanced matrix switcher, ideal for professional audio and video setups, offers glitch-free switching during the vertical interval, ensuring seamless transitions and superior performance with genlocked sources.

Engineered for optimal signal management, the Kramer VS-1002XL Matrix Switcher stands out in the realm of audio and video equipment, providing a reliable solution for controlling multiple signal sources. This high-quality device is perfect for those seeking to enhance their audio-visual experience, whether it's for home entertainment systems, professional broadcasting, or multimedia presentations.

With its robust design and advanced features, the Kramer VS-1002XL 10x2 Composite Video & Balanced Stereo Audio Matrix Switcher is a must-have tool for anyone looking to manage multiple audio and video sources with ease and precision. Experience the difference in quality and performance with this exceptional matrix switcher from Kramer.

Kramer Electronics VS-1002XL Features

  • Bandwidth - 200MHz (-3dB) fully loaded
  • Control - Front panel, RS-232 (K-Router Windows-based software is included) & RS-485
  • Take Button - Execute multiple switches all at once
  • Memory Locations - Store multiple switches as presets to be recalled and executed when needed
  • Audio Breakaway Switching
  • Vertical Interval Switching
  • Standard 19" Rack Mount Size - 2U

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-performance 10x2 matrix switcher for composite video and balanced audio
  • Ensures glitch-free transitions with vertical interval switching
  • Ideal for professional AV setups with genlocked source compatibility
  • Robust design for efficient signal management and control
  • Seamless integration for broadcasting and multimedia presentations
  • Precision-engineered for optimal audio-visual signal distribution

What's in the box:

  • Kramer VS-1002XL 10x2 Composite Video & Balanced Stereo Audio Matrix Switcher
  • Power Cord
  • Windows
  • Based Control Software
  • Null Modem Adapter
  • Kramer 7 Years Limited Warranty
