What types of signals can the Kramer VS-1604 Matrix Switcher handle?

The Kramer VS-1604 Matrix Switcher is designed to handle composite video and balanced stereo audio signals, suitable for professional audio-visual environments.

Can the Kramer VS-1604 switch between sources without causing disruptions?

Yes, the Kramer VS-1604 features switching during the vertical interval, which ensures glitch-free transitions between genlocked sources, providing a smooth and uninterrupted experience.

Is the Kramer VS-1604 suitable for live event production?

Absolutely, the Kramer VS-1604 is an ideal choice for live events due to its high-performance switching capabilities and reliability in managing audio-visual signals.

How user-friendly is the Kramer VS-1604 for operators?

The Kramer VS-1604 has been designed with a user-friendly interface, making it accessible and easy to operate for users with varying levels of technical expertise.

What makes the Kramer VS-1604 a preferred choice for professional AV setups?

Its combination of glitch-free switching, high-quality signal management, and ease of use make the Kramer VS-1604 a preferred choice for professionals in the AV industry.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics VS-1604 Specifications

  • Input

    16 composite video, 1Vpp/75 Ohm on BNC connectors; 16 balanced audio stereo, +4dBu/47k Ohm on detachable terminal blocks

  • Output

    4 composite video, 1Vpp/75 Ohm on BNC connectors; 4 balanced audio stereo, +4dBu/50 Ohm (20Vpp max.) on detachable terminal blocks

  • Video Bandwidth (-3dB)

    208MHz

  • Audio Bandwidth (-3dB)

    100kHz to 0.7dB

  • Diff. Gain

    0.04%

  • Diff. Phase

    0.04Deg

  • K-factor

    <0.05%

  • Video S/N

    73dB

  • Audio S/N

    82dB unweighted, (1Vpp)

  • Video Crosstalk

    -60dB @5MHz

  • Non-linearity

    0.05%

  • Control

    Manual, RS-232 and RS-485

  • Audio THD

    0.021% (1V, 1kHz)

  • 2nd Harmonic

    0.004%

  • Switching

    Vertical interval

  • Power Source

    230V AC, 50/60Hz, (115V AC, U.S.A.) 10VA

  • Dimensions

    19" x 7" x 2U W x D x H, rack mountable

  • Weight

    3.4kg (7.5lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VS-1604

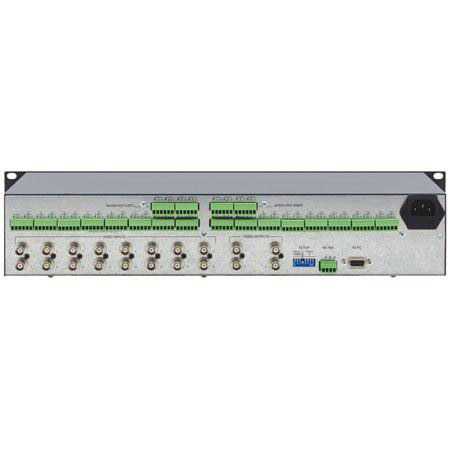

After extensive research and development, the Kramer VS-1604 16x4 Composite Video & Balanced Stereo Audio Matrix Switcher emerges as a high-performance, professional-grade solution for seamless audio-visual signal management. This advanced matrix switcher is meticulously designed to handle composite video and balanced stereo audio signals, making it an ideal choice for broadcasting, live events, and professional AV setups.

The Kramer VS-1604 stands out in the market with its unique feature of switching during the vertical interval. This innovative technology ensures glitch-free switching even with genlocked sources, providing a smooth, uninterrupted audio-visual experience. This feature not only enhances the performance but also increases the reliability of the device, making it a preferred choice for professionals dealing with high-stakes audio-visual setups.

In addition to its superior performance, the Kramer VS-1604 16x4 Composite Video & Balanced Stereo Audio Matrix Switcher is built with a user-friendly interface. This makes it easy to operate, even for those who may not be technically inclined, ensuring a seamless user experience across all levels of operation.

In conclusion, the Kramer VS-1604 16x4 Composite Video & Balanced Stereo Audio Matrix Switcher is a high-quality, reliable, and efficient solution for managing composite video and balanced stereo audio signals. Its unique features and user-friendly design make it a valuable addition to any professional audio-visual setup.

Kramer Electronics VS-1604 Features

  • Bandwidth - 208MHz (-3dB) fully loaded
  • Control - Front panel, RS-232 (K-Router Windows-based Kramer software is included) & RS-485
  • Take Button - Execute multiple switches all at once
  • Memory Locations - Store multiple switches as presets to be recalled and executed when needed
  • Audio Breakaway Switching
  • Vertical Interval Switching
  • Standard 19" Rack Mount Size - 2U

Key Features

  • High-performance matrix switcher for composite video and balanced stereo audio signals
  • Advanced technology ensures glitch-free switching with genlocked sources
  • Ideal for broadcasting, live events, and professional AV setups
  • User-friendly interface for easy operation across all levels of technical proficiency
  • Reliable and efficient solution for managing complex audio-visual setups
  • Enhances the audio-visual experience with seamless, uninterrupted performance

What's in the box:

  • Kramer VS-1604 16x4 Composite Video & Balanced Stereo Audio Matrix Switcher
  • Power Cord
  • Windows-Based Kramer Control Software
  • Null-Modem Adapter
  • Kramer 7 Years Limited Warranty
