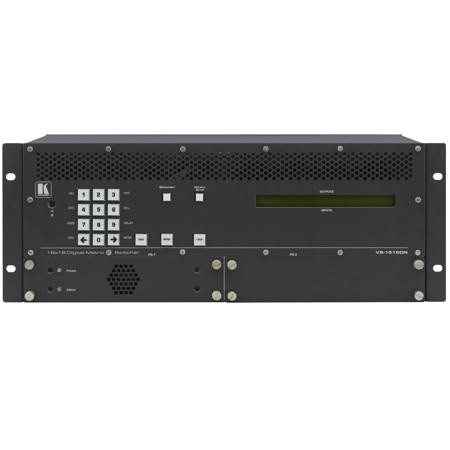

Kramer Electronics VS-1616DN-EM 2x2 to 16x16 Modular 4K60 4:2:0 Multi-Format Managed Digital Matrix Switcher

Why settle for less when you can have the advanced VS-1616DN-EM 2x2 to 16x16 Modular 4K60 4:2:0 Multi-Format Managed Digital Matrix Switcher This high-tech device from Kramer Electronics is a high-performance modular matrix switcher chassis for AV signals, capable of handling 4K at 60Hz (4:2:0) resolution.

The VS-1616DN-EM is a sophisticated multi-format digital switcher that can be populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. This innovative product includes optional dual, redundant power supplies, a control module, and a test module, allowing you to monitor and test any input and output in the matrix.

This professional-grade switcher supports a wide range of input and output cards for different AV signals, offering unparalleled versatility. With the Kramer Core FLEXIBLE INFRASTRUCTURE CONVERSION, you can use Copper, Fiber, or Twisted Pair simultaneously, depending on your input/output module selection.

The VS-1616DN-EM receives signals from compatible Kramer transmitters, automatically converts between available infrastructure options, and sends the signals to compatible Kramer receivers. This high-tech device supports a maximum data rate of 10.2Gbps (3.4Gbps per graphic channel) when using compatible cards.

The switcher is also equipped with Kramer Network Management for automatic discovery through the network, firmware upgrade management for matrix and cards, and card status indication. It is HDCP compliant with DVI (HDCP), HDMI, F670, HDBaseT, HDMI with audio, and DGKat modules.

For optimum range and performance, use recommended Kramer cables. The device also features Kramer Equalization & re-Klocking Technology for rebuilding the digital signal to travel longer distances.

The VS-1616DN-EM offers optional fast switching support for fraction of a second switching. Its modular and easily configurable platform allows you to mix and add input or output module types in increments of 2 from 2x2 up to 16x16.

The switcher also offers flexible configuration to disable HDCP support and convert between HDMI and DVI. It has a default EDID for each input and an EDID Capture feature that copies and stores the EDID from a display device.

The device also includes a 'Take Button' for executing multiple switches all at once and memory locations for storing multiple switches as presets to be recalled and executed as needed. It also features a test pattern module with 4 output resolutions for troubleshooting video problems and an additional monitor port with audio embedding and de-embedding.

The VS-1616DN-EM also includes a second power supply that is redundant and hot-swappable, a modular cooling system with 2 easily replaceable, low-noise, hot-swappable fan racks, and flexible control options including front panel, IR remote (included), RS-232, Ethernet, mini USB port for communicating with the unit and firmware upgrade, in/out audio jacks for unit testing, and a reset button for convenient unit reset.

The device comes with a worldwide power supply of 100-240V AC. Experience the ultimate in versatility and performance with the VS-1616DN-EM 2x2 to 16x16 Modular 4K60 4:2:0 Multi-Format Managed Digital Matrix Switcher.
