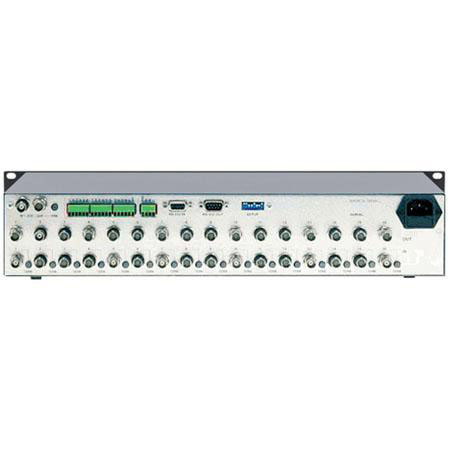

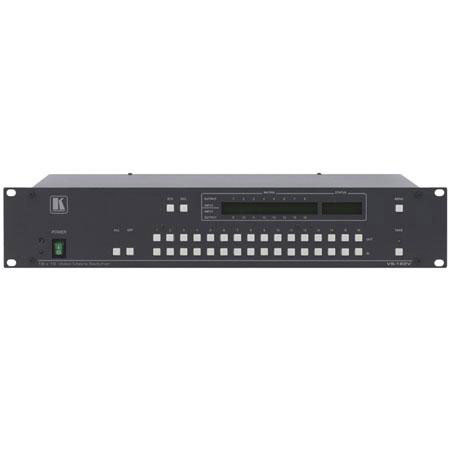

Kramer Electronics Kramer VS-162V 16x16 Composite Video Matrix Switcher
See all Kramer Electronics items

Kramer Electronics VS-162V 16x16 Composite Video Matrix Switcher

SKU: KRVS162V
(1)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Kramer Electronics VP-16X18AK 16x18 Video & Audio Matrix Switcher
$10,350.00
$8,995.00
undefined undefined: Picture 1 regular
Kramer Electronics VP-28 14-Input Multi-Format Presentation Switcher
$2,265.00
$1,810.40
undefined undefined: Picture 1 regular
Kramer Electronics Kramer VS1616A 16x16 Stereo Audio Matrix Switcher
$2,935.00
$2,348.00
undefined undefined: Picture 1 regular
Kramer Electronics Kramer VS1616AV 16x16 Video/Audio Matrix Switcher
$5,150.00
$4,120.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-11-02T09:03:50

Rated 5 out of 5

Great Product

Very good experience and product was exactly as advertised

ROBERT K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VS-162V Specifications

  • Input

    16 composite video, or 8 s-Video (YC), or 4 RGBS, or 5 YUV, 1Vpp/75 Ohm, on BNC connectors

  • Outputs

    16 composite video, or 8 s-Video (YC), or 4 RGBS, or 5 YUV, 1Vpp/75 Ohm, on BNC connectors

  • Non-linearity

    <0.01%

  • Video Bandwidth (-3dB)

    100MHz

  • Diff. Gain

    0.01%

  • Diff. Phase

    0.01Deg

  • K-factor

    <0.05%

  • Video S/N Ratio

    70.2dB

  • Video Crosstalk

    <-52dB @5MHz

  • Controls

    38 selector switches; RS-232, RS-485, IR remote, dry keyboard extension

  • Switching

    Vertical interval

  • Power Source

    230V AC, 50/60Hz, (115V AC, U.S.A.) 10VA

  • Dimensions

    19" x 7" x 2U W x D x H, rack mountable

  • Weight

    3.5kg (7.8lbs) approx

  • Warranty

    Kramer 7 years limited warranty

  • UPC Code

    7291063004781

About Kramer Electronics VS-162V

The Kramer VS-162V is a high-performance matrix switcher for composite video signals. It can be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS switcher.

Kramer Electronics VS-162V Features

  • Bandwidth - 100MHz (-3dB) fully loaded
  • Multi-Mode - Configure as either a 16x16 composite, an 8x8 s-Video (Y/C), a 5x5 component (YUV), or 4x4 RGBS switcher
  • Looping Inputs and Sync
  • Selectable Input and Sync Signal Termination
  • Control - Front panel, RS-232 (K-Router Windows-based Kramer software is included), RS-485, contact closure & IR remote (included)
  • Take Button - Execute multiple switches all at once
  • Memory Locations - Store multiple switches as presets to be recalled and executed when needed
  • Standard 19" Rack Mount Size - 2U

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enjoy wide compatibility with this video switcher, supporting composite, S-Video & more!
  • Achieve reliable connection using Kramer's video matrix switcher for seamless performance.
  • This 16x16 composite video matrix offers easy setup, perfect for any A/V environment.
  • Minimize latency with vertical interval switching, ensuring smooth transitions every time.
  • Control your video distribution via RS-232, RS-485, or IR remote for added convenience.
  • Get good value with this high-resolution video switcher, backed by a 7-year warranty!

What's in the box:

  • Kramer VS-162V 16x16 Composite Video Matrix Switcher
  • Power Cord
  • Null-Modem Adapter
  • Windows-Based Kramer Control Software
  • Kramer Electronics 7 Year Limited Warranty
