Kramer Electronics VS-44HDXL Specifications

  • Input

    4 SMPTE-259M/292M/424M serial video, 75 Ohm on a BNC connector; 1 genlock 75 Ohm/Hi-Z on a BNC connector, bi-level or tri-level sync

  • Outputs

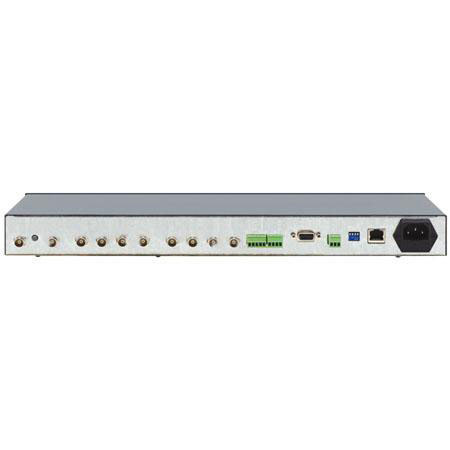

    4 equalized and reclocked SMPTE-259M, 292M outputs 75 Ohm on BNC connectors; 1 looped genlock 75 Ohm/Hi-Z on a BNC connector

  • Max. Output Level

    800mVpp/75 Ohm

  • Data Rate

    Up to 2.97Gbps

  • Controls

    Front-panel, RS-232; RS 485, Ethernet, infrared remote, dry contact and panel lock

  • Power Source

    Universal, 100-240V AC, 50/60Hz, 22VA

  • Dimensions

    19" x 7" x 1U (W x D x H), rack mountable

  • Weight

    2.6kg (5.7lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VS-44HDXL

The Kramer VS-44HDXL is a high-performance matrix switcher for SD-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), dual link (SMPTE 372M) and 3G HD-SDI (SMPTE 424M) signals. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.

Kramer Electronics VS-44HDXL Features

  • Max Data Rate - 3Gbps
  • HDTV Compatible
  • Multi-Standard Operation - SD/HD-SDI, 3G HD-SDI and dual-link HD-SDI
  • Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
  • Switching Synchronization - Synchronizes either to external reference or incoming video
  • Active Input Type Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high-definition (HD-SDI) input signal
  • Multiple Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed when needed
  • Take Button - Executes multiple switches all at once
  • Flexible Control Options - Front Panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure & IR Remote (included)
  • Analog Sync Type - Bi-level, tri-level
  • Selectable Sync Signal Termination
  • Vertical Interval Switching - SMPTE RP-168
  • Front Panel Control Lockout
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDTV Compatible

What's in the box:

  • Kramer VS-44HDXL 4x4 3G HD-SDI Matrix Switcher
  • Power Cord
  • Null-Modem Adapter
  • Kramer 7 Years Limited Warranty
