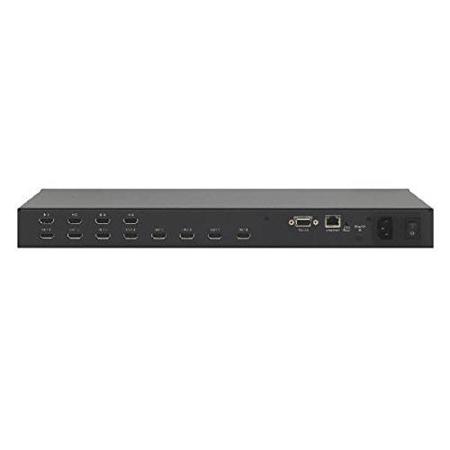

Kramer Electronics VS-48HN 4x8 HDMI Matrix Switcher

The VS-48HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

• Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
• HDTV Compatible
• HDCP Compliant
• HDMI Support: Deep Color, x.v.Color, Dolby TrueHD, Dolby Digital Plus, DTS-HD and linear PCM 7.1 surround sound
• 3D Pass-Through
• Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal to travel longer distances
• EDID Capture: Copies and stores the EDID from a display device
• Output Disconnect: For each output
• Front Panel Control Lockout
• Memory Locations: Stores multiple switches as presets to be recalled and executed when needed
• Communication Support: Support for Kramer Protocol 2000 and Protocol 3000
• Worldwide Power Supply: 100-240V AC

Flexible Control Options
Front panel, IR remote, RS-232 (K-Router Plus Windows-based software is included), Ethernet (Windows-based Ethernet Configuration Manager & Virtual Serial Port Manager is included)

Applications
• Conference room presentations
• Advertising applications
• Rental and staging
