Kramer Electronics Kramer VS606XL 6x6 Video/Audio Stereo Matrix Switcher
See all Kramer Electronics items

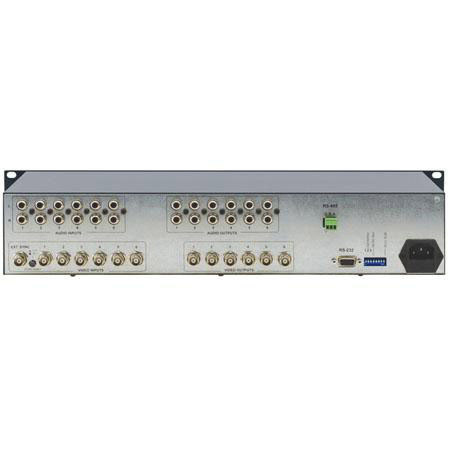

Kramer Electronics VS-606XL 6x6 Composite Video & Stereo Audio Matrix Switcher

SKU: KRVS606XL
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Kramer Electronics VP-553 Boardroom Presentation Switcher/Dual Scaler
$3,595.00
undefined undefined: Picture 1 regular
Kramer Electronics VP-770 8-Input ProScale Presentation Switcher/Scaler
$1,864.00
$1,099.00
undefined undefined: Picture 1 regular
Kramer Electronics VP-771 9-Input ProScale Switcher/Scaler with Speaker Outputs
$2,664.00
undefined undefined: Picture 1 regular

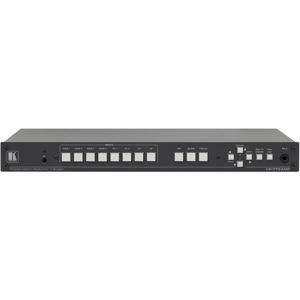

Kramer Electronics VP-773A 8-In HDMI & HDBaseT ProScale Switcher/Scaler
$2,695.00
$2,328.80
undefined undefined: Picture 1 regular

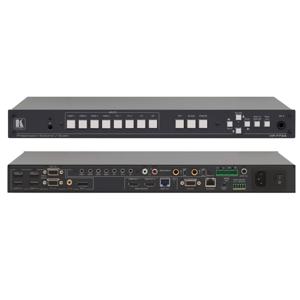

Kramer Electronics VP-773A 8-Input HDMI & HDBaseT ProScale Switcher/Scaler
$2,750.00
$2,200.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VS-606XL Specifications

  • Input

    6 composite video, 1Vpp/75 Ohm on BNC connectors; 1 sync/video genlock 1Vpp/75 Ohm with sync select switch; 6 audio stereo, +4dBu/33k Ohm on RCA connectors

  • Output

    6 composite video, 1Vpp/75 Ohm on BNC connectors. 6 audio stereo, +4dBu/50 Ohm (24Vpp max.) on RCA connectors

  • Video Bandwidth (-3dB)

    200MHz

  • Audio Bandwidth (-3dB)

    100kHz

  • Non-linearity

    0.1%

  • Video Crosstalk

    -50dB

  • Diff. Gain

    0.05%

  • Diff. Phase

    0.03Deg

  • K-factor

    0.05%

  • Video S/N

    74dB

  • Audio S/N

    88dB unweighted (1Vpp)

  • Audio THD

    0.016% (1V, 1kHz)

  • Switching

    Vertical interval

  • Control

    Manual, RS-232 and RS-485

  • Power Source

    230V AC, 50/60Hz, (115V AC, U.S.A.) 11VA

  • Dimensions

    19" x 7" x 2U (W x D x H), rack mountable

  • Weight

    3.4kg (7.5lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VS-606XL

The Kramer VS-606XL is a high-performance matrix switcher for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Kramer Electronics VS-606XL Features

  • Bandwidth - 200MHz (-3dB) fully loaded
  • Control - Front panel, RS-232 (K-Router Windows-based software is included), RS-485, IR remote (included) & remote IR receiver (optional)
  • Take Button - Executes multiple switches all at once
  • Memory Locations - Stores multiple switches as presets for recall and execution when needed
  • Audio Breakaway Switching
  • Vertical Interval Switching
  • Switching Synchronization - Synchronize either to external reference or the incoming video
  • Selectable Sync Signal Termination
  • Standard 19" Rack Mount Size - 2U

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Memory Locations

What's in the box:

  • Kramer VS-606XL 6x6 Composite Video & Stereo Audio Matrix Switcher
  • Power Cord
  • Windows-based Kramer Control Software
  • Null-Modem Adapter
  • IR Remote Control
  • Kramer 7 Years Limited Warranty
