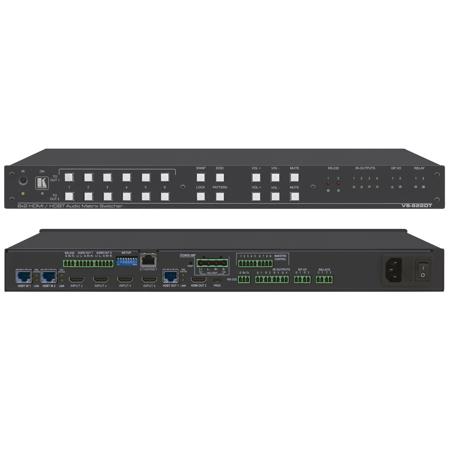

Kramer Electronics VS-622DT All-in-One Presentation System with 6x2 4K60 4:2:0 HDMI/HDBaseT Matrix Switching, Control Gateway, PoE, Power Amplifier & Maestro Room Automation

Let the VS-622DT All-in-One Presentation System elevate your audiovisual experiences with its advanced 6x2 matrix switching capabilities, designed to deliver high-resolution 4K at 60Hz (4:2:0) content seamlessly. This sophisticated device is not just a matrix switcher; it's an integrated solution for comprehensive control and signal management in professional settings such as conference rooms and presentation environments.

The VS-622DT boasts state-of-the-art HDMI/HDBaseT matrix switching technology, ensuring that any input can be dynamically routed to either the HDMI or the HDBaseT output, or to both simultaneously, without compromising on signal quality. With support for resolutions up to 4K at 60Hz (4:2:0) and WUXGA, this system delivers crystal-clear images that are essential for high-impact presentations and meetings.

As a high-tech control gateway, the VS-622DT sends control signals across Ethernet or HDBT LINE, utilizing a variety of ports including RS-232, four IR, two GPI/O, and two relays. This allows for the centralized management of a wide array of AV devices, streamlining operations and reducing the complexity of your setup.

Power over Ethernet (PoE) capability provides the convenience of supplying power to compatible devices directly through the network cable, eliminating the need for additional power sources and reducing cable clutter. The system's maximum data rate of 10.2Gbps (3.4Gbps per graphics channel) ensures that high-bandwidth content is transmitted smoothly and without delay.

The HDBaseT extension reach is impressive, offering up to 100m at 4K at 60Hz (4:2:0), up to 130m (430') at full HD (1080p at 60Hz 36bpp), and up to 180m (590') at ultra-mode and full HD (1080p at 60Hz 24bpp). For optimal performance, it is recommended to use Kramer cables, which are specifically designed to complement the system's capabilities.

Innovative Maestro Room Automation provides a user-friendly interface for automating meeting room elements such as lights, shades, and devices. This feature can be triggered by various actions, including scheduling and button pressing, ensuring that your meeting space is ready for use with minimal setup time and reduced chance of human error.

The integrated power amplifier delivers robust audio with 1x120W at 70V/100V and 2x60W at 4/8©, along with line-level output. This allows for quick swapping between two de-embedded audio sources and individual gain control for each source, ensuring that your audio is as dynamic and engaging as your visuals.

Audio de-embedding capabilities allow the user to select and extract audio signals from two of the six inputs (2 HDBaseT + 4 HDMI), which are then output through two balanced analog audio outputs. Additionally, one of the de-embedded audio signals can be routed to the power amplifier for amplified sound output.

The VS-622DT supports advanced HDMI features such as 3D, Deep Color, x.v.Color, Lip Sync, and high-definition audio formats including Dolby TrueHD, Dolby Digital Plus, DTS-HD, and 7.1 PCM. EDID capture functionality ensures that the system can store and replicate the EDID from a display device for consistent signal integrity.

For enhanced user interaction, the system offers advanced auto AV switching options, independent audio routing, and programmable step-in functionality over HDMI. Kramer's reKlocking & Equalization Technology rebuilds the digital signal for longer transmission distances, while a lock button on the front panel prevents unauthorized adjustments.

Remote configuration and operation are made simple with embedded web pages, and flexible control options include front panel buttons, an IR remote (included), an optional external remote IR receiver, RS-232, Ethernet, and Kramer Protocol 3000 support. A USB port is also available for convenient firmware upgrades, ensuring that your system remains up-to-date with the latest features and improvements.

The VS-622DT All-in-One Presentation System is a testament to Kramer Electronics' commitment to producing innovative, high-quality audio and video equipment that meets the demands of modern presentation spaces.
