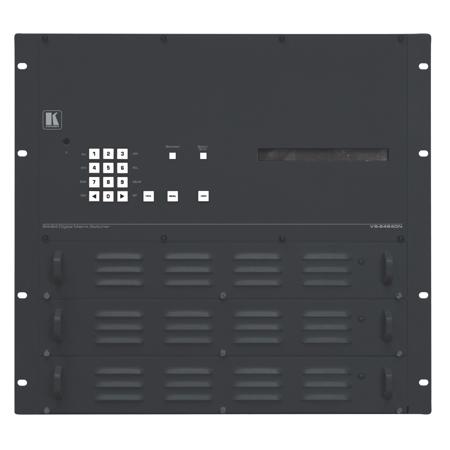

Kramer Electronics VS-6464DN-EM 8x8 to 64x64 Modular Multi-Format Managed Digital Matrix Switcher

VS-6464DN-EM is a high-performance 8x8 to 64x64 modular matrix switcher chassis for AV signals. The unit is a multi-format digital switcher, populated from 8x8 to 64x64 in increments of eight inputs and/or eight outputs. The chassis includes two (optional three) redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS-6464DN-EM supports a wide variety of input and output cards for different AV signals.

Kramer Core
FLEXIBLE INFRASTRUCTURE CONVERSION! Copper, Fiber or Twisted Pair all can be used at the same time, according to input/output module selection. The matrix receives signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receivers. Kramer Core solution is the ultimate in versatility!

Max. Data Rate
6.75Gbps (2.25Gbps per graphic channel) when using compatible cards.

Kramer Network Management
Automatic discovery through the network, FW upgrade management for matrix and cards, identify card type and location and indicate card status(module ID, actual firmware versions), matrix switching, specified card features configuration (for example, volume levels on audio cards), Store and Recall of predefined switching scenarios, integrated Maestro automation and more.

HDCP Compliant
With DVI (HDCP) and HDMI modules.

Kramer Equalization & re-Klocking Technology
Rebuilds the digital signal to travel longer distances.

Optional Fast Switching Support
For fraction of a second switching.

Modular & Easily Configurable Platform
Input or output module types can be mixed and added in increments of 8 from 8x8 up to 64x64.

Flexible Configuration
To disable HDCP support and convert between HDMI and DVI.

Default EDID
For each input.

EDID Capture
Copies and stores the EDID from a display device.

Take Button
Executes multiple switches all at once.

Memory Locations
Stores multiple switches as presets to be recalled and executed as needed.

Built-in Test Pattern Module
With 4 output resolutions for troubleshooting video problems and additional monitor port with audio embedding and de-embedding.

Optional Redundant Power Supply
Hot-swappable.

Modular Cooling System
2 easily replaceable, low-noise, hot-swappable fan racks.

Flexible Control Options
Front panel, IR remote (included), RS-232, Ethernet, mini USB port for communicating with unit and FW upgrade, in/out audio jacks for unit testing and reset button for convenient unit reset (for future use).

Worldwide Power Supply
100-240V AC.
