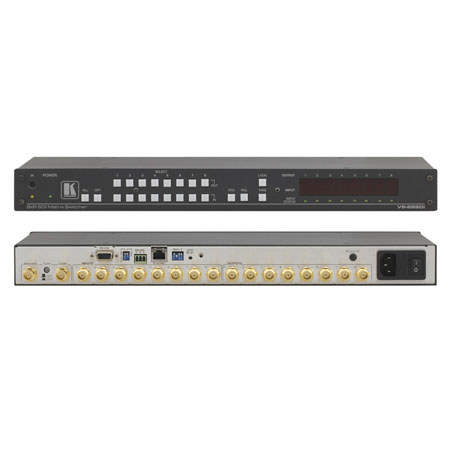

Kramer Electronics VS-88SDI 8x8 SDI Matrix Switcher, 540Mbps Data Rate
SKU: KRVS88SDI MFR: VS-88SDI
$2,396.00
$2,995.00
Save: $599 (20%)OR
Key Features
- Seamless SDI matrix switching: Route any of 8 inputs to any of 8 outputs.
- Ensure reliable connection with automatic cable equalization up to 540Mbps.
- Control your video switcher via front panel, RS-232, Ethernet, or IR remote.
- Multi-device support: Perfect for broadcast studios needing flexible routing.
- Enjoy high resolution video distribution in a compact, rack-mountable 1U design.
- Good value: Benefit from genlock & loop features for advanced SDI workflows.
Ships from Manufacturer?
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$99.99
3 Year
$159.99
4 Year
$191.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Kramer Electronics VS-88SDI
It's the Kramer Electronics VS-88SDI 8x8 SDI Matrix Switcher, a high-performance device designed to manage SDI digital video signals with precision and ease. This advanced switcher allows seamless switching between any of its 8 inputs and 8 outputs, supporting a maximum data rate of 540 Mbps for efficient data transmission.
Designed for professional broadcasting and presentation applications, this SDI Matrix Switcher enables you to route any or all inputs to any or all outputs simultaneously. Its Vertical Interval Switching, compliant with SMPTE RP-168, ensures glitch-free switching with genlocked sources, synchronizing output to external reference or incoming video.
The VS-88SDI 8x8 SDI Matrix Switcher is equipped with Active Input Indication Reporting, a feature that lights up the input button on the front panel when a video signal is detected on that input. This allows for easy monitoring and control of video and audio configurations.
The switcher also boasts preset memory locations, providing quick access to common video and audio configurations and audio gain status for each output. The Take Button feature enables the execution of multiple switches simultaneously, enhancing operational efficiency.
To prevent unauthorized adjustments, the Front Panel Lockout feature is included, securing your settings against tampering. The switcher also offers Selectable Sync Signal Termination and features Automatic Reclocking and Equalization for optimal signal integrity.
The Looping Analog Sync Input, compatible with bi-level and tri-level signals, further enhances its versatility. Control of the VS-88SDI 8x8 SDI Matrix Switcher is effortless, with options to use the front panel buttons or remote control via RS-232, RS-485, or an IR remote control.
Designed to fit into your professional setup, the switcher comes in a standard 19" rack mount size, occupying just 1U rack space. It operates on a 100-240V AC power supply, making it a reliable and essential tool for your broadcasting or presentation needs.
Kramer Electronics VS-88SDI Features
- Multi-Standard Operation: SDI (SMPTE 259M/344M)
- Switching Synchronization: Synchronizes either to external reference or incoming video
- Active Input Reporting: Each input button on the front panel automatically lights up when the unit detects a video signal on that input
- Memory Locations: Stores multiple switches as presets (salvos) to be recalled and executed when needed
- Reclocking & Equalization: Automatic
- Take Button: Executes multiple switches all at once
- Control: Front panel, RS-232 (K-Router Windows-based software is included), RS-485 and remote IR
- Looping Analog Sync Input: Bi-level or tri-level sync compatible
- Selectable Sync Signal Termination
- Vertical Interval Switching: Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources
- Front Panel Lockout
Warranty Information
This product has a limited warranty of 84 months.
