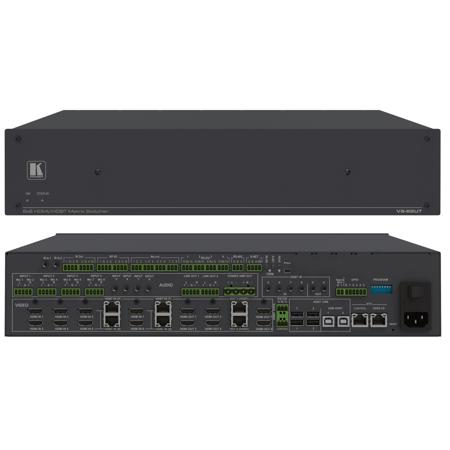

Kramer Electronics VS-88UT All-in-One Presentation System with 8x8 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switching, Master Room Controller, PoE & Power Amplifier

SKU: KRVS88UT110V MFR: 50-80355010
Earn VIP Reward Points

Key Features

  • Experience seamless 4K UHD video with this HDMI/HDBaseT Matrix Switcher for crisp, clear visuals.
  • Control your conference room with the master room controller feature, simplifying presentations.
  • Extend signals up to 330ft at 4K or 590ft at 1080p with HDBaseT 2.0 connectivity for flexibility.
  • Enjoy versatile audio options with balanced stereo and mic inputs, perfect for any AV setup.
  • Integrate easily with PoE and power amplifier features, streamlining your installation process.
  • Connect multiple devices via USB, Ethernet, and RS-232 ports for comprehensive connectivity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$749.99

3 Year

$1,124.99

4 Year

$1,249.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VS-88UT Specifications

  • Applications

    Classroom, lecture theaters and education application
    Projection systems in conference rooms, boardrooms, hotels and churches

  • Inputs

    6x HDMI: On female HDMI connectors
    2x HDBaseT: On RJ-45/female HDMI connectors
    4x Unbalanced Stereo Audio: On 3.5mm mini jacks
    4x Balanced Stereo Audio/8 Balanced Mic (Selectable): On 5-pin/3-pin terminal block connectors
    4x IR: On 3.5mm mini jacks for IR tunneling via HDBaseT
    2x IR (room controller): On 3.5mm mini jacks

  • Outputs

    2x HDMI: On female HDMI connectors
    2x HDBaseT: On female RJ-45 connectors
    2x Balanced Stereo Audio: On 5-pin terminal block connectors
    1x Stereo Speaker Output: On a 4-pin terminal block, 2x50W into 4 Ohms or 2x30W into 4 Ohms
    2x IR: On 3.5mm mini jacks for IR tunneling via HDBaseT

  • Ports

    1x RS-232: On a 3-pin terminal block for Serial Tunneling via HDBaseT
    1x RS-232: On a 3-pin terminal block for Device Control
    4 (2x2) USB: On female USB-A connectors for USB Link Extension
    2x USB: On female USB-B connectors for USB Link Extension
    1x Ethernet Control: On an RJ-45 female connector for tunneling data via HDBT ports
    1x Ethernet 1G: On an RJ-45 female connector for tunneling data via HDBT ports

  • Ports (cont.)

    1x 100BaseT Ethernet: On an RJ-45 female connector for Device Control and LAN Extension
    1x K-NET 5mm Mini-jack (room controller): On a 4-pin terminal block connector for learning
    1x RS-485 (room controller): On a 3-pin terminal block connector
    4x RS-232 Serial (room controller): On 3-pin terminal blocks
    8x Relays (room controller): On 2-pin terminal block connectors (36V AC or DC, 2A, 60VAC maximum on non-inductive load)
    4x GPI/O (room controller): On 2-pin terminal blocks

  • Extension Line

    Up to 100m (330'): At 4K at 60Hz (4:2:0)
    Up to 130m (430'): At Full HD (1080p at 60Hz 36bpp)
    Up to 180m (590'): HDBaseT Ultra Mode and Full HD (1080p at 60Hz 24bpp)
    Compliance: HDBaseT 2.0

  • User Interface

    Indicators: ON & STATUS LEDs
    Configuration Switches: RS-485 Termination, RS-485 Termination, Programming

  • Video

    Max. Resolution: 4K UHD at 60Hz (4:2:0) 24bpp resolution)
    Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
    Standards Compliance: HDMI 2.0 and HDCP 1.4

  • Analog Audio

    Max Vrms Level: 1
    THD + Noise: 0.03% at 1kHz at nominal level

  • Extended USB

    Host Compliance: 1.1 and 2.0
    Max Extended Line Rate Bandwidth: 127Mbps (out of max 480 USB)
    Max Devices: 7
    Max Hubs: 2
    Max Ports per Hub: 8

  • Extended Ethernet

    Max Transmission Bandwidth: 100Mbps

  • Extended Rs-232

    Baud Rate: 300 to 57600

  • Control Rs-232

    Baud Rate: 115200

  • Supported Pc Web Browsers

    Windows 7 and Higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
    MAC: Chrome version 35, Firefox version 30, Safari version 7
    Optimal Resolution: 1920x1080
    Minimal Resolution: 1024 x 768d

  • Power

    Source: 100-240V AC, 50/60Hz
    Consumption: 250VA

  • Enclosure

    Size: 19" (W), 9.3" (H), 2U, rack mountable
    Type: Aluminum
    Cooling: Fan ventilation

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Regulatory Compliance (Standards)

    Safety: CE, UL
    Environmental: RoHs, WEEE

  • Dimensions (WxDxH)

    43.6 x 18.40 x 8.80cm (17.17 x 7.24 x 3.46")

  • Weight

    8.6 lbs (3.90kg)

  • UPC Code

    7291063074333

About Kramer Electronics VS-88UT

Bring sophistication and high-tech innovation to your presentations with the VS-88UT All-in-One Presentation System. This advanced system is equipped with an 8x8 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switching feature, offering seamless transitions between multiple HDMI and HDBaseT sources.

The VS-88UT is more than just a matrix switcher. It's a state-of-the-art presentation system that embeds audio and outputs the signal to both HDMI and HDBaseT 2.0 with USB extension. PoE on the HDBaseT output ports ensures power supply to the matrix switcher and connected devices, eliminating the need for additional power outlets.

Outstanding audio support is a key feature of this system, including balanced stereo audio, unbalanced stereo audio, and de-embedded audio sources. These output to embedded audio, balanced stereo audio, and a power amplified audio output, providing a rich and immersive audio experience for your presentations.

The integrated Master Room Controller operates over Ethernet (LAN) and includes control ports such as one bidirectional RS-485, four RS-232, four IR, four GPI/O, and eight relays. This allows for comprehensive control of a wide variety of AV devices.

The VS-88UT also includes an Ethernet gateway for controlling and managing remote I/O ports, and a KNET connector interface for access to the master controller from auxiliary room controllers. The system supports a maximum data rate of 10.2Gbps (3.4Gbps per graphics channel) and a maximum resolution of 4K at 60Hz (4:2:0).

With HDBaseT Certified V2.0 support, the VS-88UT extends reach up to 100m at 4K at 60Hz (4:2:0), up to 130m (430') at full HD (1080p at 60Hz 36bpp), and up to 180m (590') at ultra-mode and full HD (1080p at 60Hz 24bpp).

The VS-88UT All-in-One Presentation System is a comprehensive solution for your presentation needs, offering advanced technology and seamless operation for a superior audio-visual experience.

Kramer Electronics VS-88UT Features

  • Audio Volume Control
  • HDMI, HDCP and DVI Compliance
  • Advanced EDID Management per Input
  • Active Source & Acceptor Detection
  • Auto-switching and Auto-scanning of Inputs
  • Audio Breakaway and AFV (audio-follow-video) Operation Support
  • Kramer Protocol 3000 Support
  • 4x HDMI and 4x HDMI/HDBT (selectable) Inputs
  • 6x HDMI and 2x HDBT Outputs
  • Resolutions up to 4K at 60Hz (4:2:0)
  • Data Rate up to 10.2Gbps (3.4Gbps per graphics channel)
  • Versatile Master Room Controller with RS-232, RS-485, IR, GPI/O and relay ports
  • PoE (Power over Ethernet) Provider
  • Managed by Kramer Network

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience seamless 4K UHD video with this HDMI/HDBaseT Matrix Switcher for crisp, clear visuals.
  • Control your conference room with the master room controller feature, simplifying presentations.
  • Extend signals up to 330ft at 4K or 590ft at 1080p with HDBaseT 2.0 connectivity for flexibility.
  • Enjoy versatile audio options with balanced stereo and mic inputs, perfect for any AV setup.
  • Integrate easily with PoE and power amplifier features, streamlining your installation process.
  • Connect multiple devices via USB, Ethernet, and RS-232 ports for comprehensive connectivity.

What's in the box:

  • Kramer Electronics VS-88UT 8x8 HDMI/HDBT Matrix Switcher
  • Power Cord
  • 4x Rubber Feet
  • Set of Rack Ears
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
