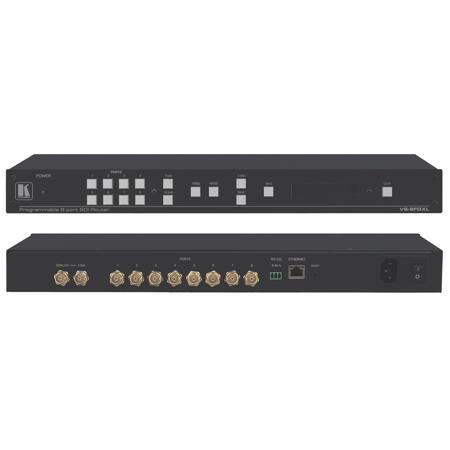

Kramer Electronics VS-8FDxl Revolutionary 8-Port SDI Matrix Switcher with Interchangeable Inputs and Outputs

SKU: KRVS8FDXL MFR: VS-8FDXL
Earn VIP Reward Points

Key Features

  • Experience seamless SDI matrix switching with the Kramer VS-8FDxl for pro A/V setups.
  • Enjoy high resolution video up to 1080p at 60Hz, perfect for detailed video presentations.
  • Easily control your video matrix via front panel, RS-232, or Ethernet for convenience.
  • This 8-Port SDI Switcher supports SMPTE standards for reliable broadcast-quality video.
  • Use this video switcher in rental and staging environments for dynamic video control.
  • Benefit from wide compatibility with 3G HD-SDI, HD-SDI, and SDI video formats.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VS-8FDxl Specifications

  • Applications

    Rental and staging

  • Ports

    8x 3G HD-SDI/HD-SDI/SDI video, 75 Ohms: On BNC connectors (by default, 1 to 4 are set as inputs and 5 to 8 are set as outputs)
    1x Genlock composite video input with loop: On BNC connectors
    1x RS-232: On a 3-pin terminal block for device control
    1x Ethernet: On an RJ-45 female connector for device control

  • Video

    Max. Resolution: 1080p at 60Hz at 24bpp, For coupled signals: 4Kat 30
    Max Data Rate: 3Gbps
    Reach: Up to 350m for SD signals, Up to 140m for 1.5GHz HD signals, Up to 120m for 3GHz HD signals, 3G input reach can be extended by 10 meters in Extended mode
    SMPTE Standards: 3G HD-SDI: SMPTE 424M, HD-SDI: SMPTE 292M, SDI: SMPTE 259M/344M

  • Control

    Front Panel: Front panel buttons, LCD display, Power LED
    Other: RS-232, Ethernet (including embedded web pages)

  • Power Consumption

    28VA

  • Power Source

    100-240V AC, 50/60Hz

  • Power Coupling

    AC

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RH non-condensing

  • Dimensions (WxDxH)

    43.6 x 18.30 x 4.36cm (17.17 x 7.20 x 1.72")

  • Weight

    3.7 lbs (1.68kg)

  • UPC Code

    7291063083335

About Kramer Electronics VS-8FDxl

Experience the advanced functionality and superior performance of the VS-8FDxl Revolutionary 8-Port SDI Matrix Switcher. This high-tech device is designed for professional use, offering an innovative solution for switching between multiple video sources and displaying them on a single monitor or a group of monitors.

The VS-8FDxl is a sophisticated matrix switcher that supports SDI signals up to 3G HD-SDI. Each of its 8 SDI ports can be flexibly defined as either an input or an output, providing a high degree of customization to meet your specific needs. With a maximum data rate of 3Gbps, this device ensures fast and efficient operation.

This matrix switcher operates on multiple standards including SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M). It incorporates Kramer Equalization and re-Klocking Technology, which rebuilds the digital signal allowing it to travel longer distances without loss of quality.

The VS-8FDxl supports ANC Data Embedded audio, teletext, time code, and more. It offers cable equalization up to 350m for SD signals, 140m for 1.5GHz HD signals, and 120m for 3GHz 3G signals. This ensures optimal signal quality over long distances.

For seamless transitions, the VS-8FDxl provides clean switching when the sources are genlocked to the selected genlock input with a difference of no more than two lines of video. It also offers versatile genlocking using an analog signal.

To enhance user convenience, this matrix switcher has memory locations that store up to 8 multiple switches as presets. These can be easily recalled and executed when needed, saving you time and effort.

In summary, the VS-8FDxl Revolutionary 8-Port SDI Matrix Switcher is a professional, high-tech, and innovative solution for managing multiple video sources. Its advanced features and superior performance make it a standout choice in its category.

Kramer Electronics VS-8FDxl Features

  • HDTV Compatible
  • Each port configures to input and output
  • All configurations from 1:7 DA to 7x1 switcher
  • High versatility for SDI applications
  • Dual port 4K

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience seamless SDI matrix switching with the Kramer VS-8FDxl for pro A/V setups.
  • Enjoy high resolution video up to 1080p at 60Hz, perfect for detailed video presentations.
  • Easily control your video matrix via front panel, RS-232, or Ethernet for convenience.
  • This 8-Port SDI Switcher supports SMPTE standards for reliable broadcast-quality video.
  • Use this video switcher in rental and staging environments for dynamic video control.
  • Benefit from wide compatibility with 3G HD-SDI, HD-SDI, and SDI video formats.

What's in the box:

  • Kramer Electronics VS-8FDxl Revolutionary 8-Port SDI Matrix Switcher
  • Power Cord
  • 4x Rubber Feet
  • Set of Rack Ears
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
