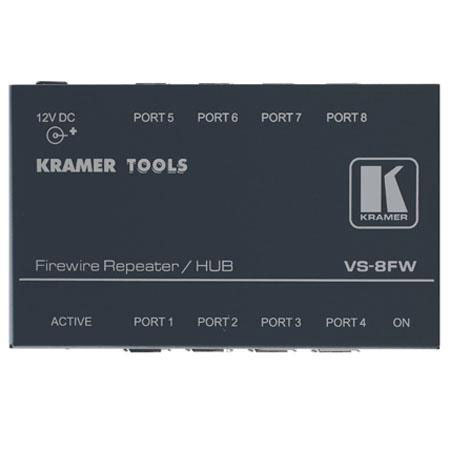

Kramer Electronics VS-8FW 8-Port FireWire Repeater / Hub

SKU: KRVS8FW

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics VS-8FW Specifications

  • Ports

    Eight 6-pin serial 1394 Ports

  • Transfer Rate

    100/200/400Mbps

  • Standards

    IEEE 1394-1995, P1394a

  • Power Source

    12V DC, 300mA

  • Dimensions

    12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") (W x D x H)

  • Weight

    0.3kg (0.67lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VS-8FW

The Kramer VS-8FW is a high-performance bidirectional hub/repeater for 6-pin FireWire (IEEE 1394) signals. It increases the number of ports available and/or extend the distance of FireWire cable runs.

Kramer Electronics VS-8FW Features

  • Cascading Operation - Multiple units can be cascaded to create a FireWire system with up to 63 ports
  • Range - Doubles FireWire cable range from 4.5m (14.75') to 9m (29.5'). Multiple units can be cascaded to extend the range to up to 72m (236')
  • Hot Swapping - Supports plug and play
  • Transfer Rates - 100, 200 and 400Mbps
  • ESD Protection - Incorporates Kramer's Spark-Guard Pro signal protection circuitry to help protect against EDS (electrostatic discharge) which can damage digital equipment
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Key Features

  • Hot Swapping - Supports plug and play
  • Transfer Rates - 100, 200 and 400Mbps

What's in the box:

  • Kramer VS-8FW 8-Port FireWire Repeater / Hub
  • Power Supply
  • Mounting Bracket
  • One 6-pin to 6-pin Connector Cable
  • Kramer 7 Years Limited Warranty
