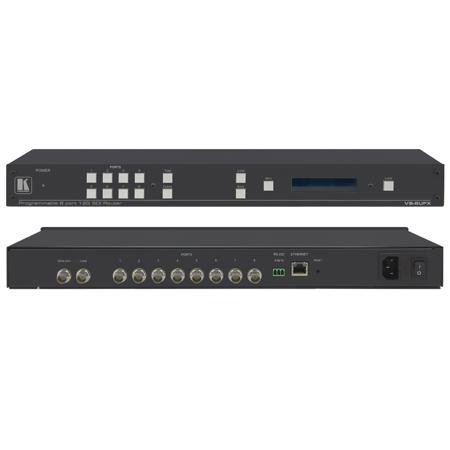

Kramer Electronics VS-8UFX 8-Port 12G SDI Matrix Switcher with Interchangeable Inputs and Outputs

What sets the VS-8UFX 8-Port 12G SDI Matrix Switcher apart is its versatility and high-performance capabilities. This advanced matrix switcher is designed to handle SDI signals up to 12G SDI, making it an ideal solution for high-definition video and audio transmission.

Each of the eight SDI ports can be individually defined as either an input or output. This flexibility allows for a multitude of configurations, including a 1x7 distribution amplifier, a 7x1 switcher, a 4x4 matrix switcher, or any other conceivable input-output combination. This adaptability makes the VS-8UFX a versatile tool for a variety of multimedia setups.

The VS-8UFX is not only powerful but also user-friendly. It can be easily operated and controlled through the network using intuitive web pages or through RS-232 using a serial controller. With a maximum data rate of 12Gbps, it ensures smooth and uninterrupted signal transmission.

The switcher supports multi-standard operation, including 12G-SDI (SMPTE ST-2082-1), 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), and SDI (SMPTE 259M/344M). This compatibility ensures that the VS-8UFX can seamlessly integrate into any professional video setup.

The VS-8UFX also features Kramer Equalization and re-Klocking Technology. This innovative technology rebuilds the digital signal, allowing it to travel longer distances without degradation. It supports ANC Data Embedded audio, teletext, time code, and more, further enhancing its functionality.

The switcher also offers cable equalization for various signal types, supporting up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals. This feature ensures optimal signal quality over long distances.

Clean switching is another key feature of the VS-8UFX. When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video, the switcher ensures seamless transitions between signals.

The VS-8UFX also offers versatile genlocking using an analog signal, providing additional flexibility in signal management. Plus, with eight memory locations, the switcher can store multiple switches as presets, allowing them to be recalled and executed when needed.

In summary, the VS-8UFX 8-Port 12G SDI Matrix Switcher is a versatile, high-performance solution for managing and transmitting SDI signals. Its advanced features and user-friendly operation make it an invaluable tool for any professional video setup.
