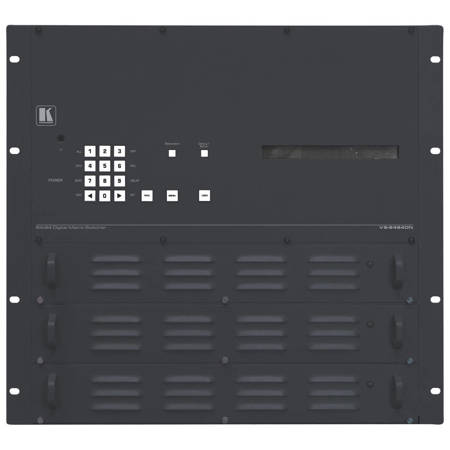

Kramer Electronics VS-6464DN 8x8 to 64x64 Modular Multi-Format Digital Matrix Switcher

SKU: KRVSDNSE110V MFR: VS-6464DN/STANDALONE/110V
Earn VIP Reward Points

Key Features

  • Scale your AV setup with this 64x64 modular matrix switcher for ultimate flexibility.
  • Enjoy high resolution video switching up to 1080p for crisp, clear visuals every time.
  • Control via front panel, IR, RS-232, or Ethernet for seamless video distribution control.
  • Ensure reliable connection for all your devices, perfect for large-scale installations.
  • This video switcher supports up to 3.2Gbps bandwidth, ideal for demanding applications.
  • Rack-mountable 10U design integrates easily into existing systems for video switching.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VS-6464DN Specifications

  • Bandwidth

    Supports up to 3.2Gbps bandwidth per channel (limited by the card installed)

  • Max Resolution

    Up to UXGA; 1080p

  • Controls

    Front panel buttons, Infrared remote control transmitter, RS-232, Ethernet

  • Power Consumption

    100-240V AC, 50/60Hz, 420VA

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Rack Height

    10U rack-mountable

  • Dimensions (WxDxH)

    19 x 14.2 x 17.5" (48.26 x 36.07 x 44.45cm)

  • Weight

    52.9 lbs (24.00kg) approx.

  • UPC Code

    7291063051150

About Kramer Electronics VS-6464DN

While the Kramer VS-6464DN may appear to be a simple matrix switcher chassis, it is in fact a high-performance, advanced piece of equipment that supports an impressive range of up to 64 x 64 ports. This versatile device can be configured to accommodate various signal types, depending on the specific cards installed, making it an ideal solution for diverse audio and video needs.

Boasting a high bandwidth of up to 3.2Gbps, the VS-6464DN ensures transparent performance, even in the most demanding applications. This is achieved by the installed cards' ability to re-clock and equalize signals, allowing the chassis to route any or all inputs to any or all outputs simultaneously.

The VS-6464DN stands out for its high configurability. Users can add or remove inputs and outputs independently in groups of eight, and different types of input/output cards can be mixed within the same chassis. This flexibility allows for custom configurations, such as an 8 x 24 or a 64 x 8 matrix switcher, to precisely meet your unique requirements.

Crafted by Kramer Electronics, a trusted name in professional audio and video equipment, the VS-6464DN is a testament to the company's commitment to quality, reliability, and sophistication. This durable, rack-mounted switcher is designed to handle a wide range of video and audio signals, making it a reliable choice for professionals in the industry.

Kramer Electronics VS-6464DN Features

  • Full 64 x 64 non-blocking matrix array to switch any of the 64 input digital signals to any or all of the 64 outputs
  • Easy access to 59 preset memory locations for quick access to user-defined setups
  • The Kramer 2000 Protocol for serial control
  • A 40 character by 2 line LCD that shows the operational status or the configuration menu
  • A lock function to prevent tampering with the front panel
  • A default EDID (Extended Display Identification Data) for each input
  • I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling and processing algorithm ensures plug and play operation for DVI/HDMI systems
  • Non-volatile EDID storage
  • Kramer Core: Copper, fiber or Twisted Pair-all can be used at the same time according to input/output module selection. The matrix receives signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receiver
  • Equalization and re-clocking on all card types
  • Support for redundant, hot-swappable power-supplies
  • You can operate the VS-6464DN via the front panel buttons or remotely via: RS-232 serial commands transmitted by a touch screen system, PC or other serial controller, Ethernet over a LAN, The infrared remote control transmitter

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Scale your AV setup with this 64x64 modular matrix switcher for ultimate flexibility.
  • Enjoy high resolution video switching up to 1080p for crisp, clear visuals every time.
  • Control via front panel, IR, RS-232, or Ethernet for seamless video distribution control.
  • Ensure reliable connection for all your devices, perfect for large-scale installations.
  • This video switcher supports up to 3.2Gbps bandwidth, ideal for demanding applications.
  • Rack-mountable 10U design integrates easily into existing systems for video switching.

What's in the box:

  • Kramer Electronics VS-6464DN 8x8 to 64x64 Modular Multi-Format Digital Matrix Switcher
  • Power Cord
  • Infrared Remote Control Transmitter
  • PS-1DN Power Supply
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
