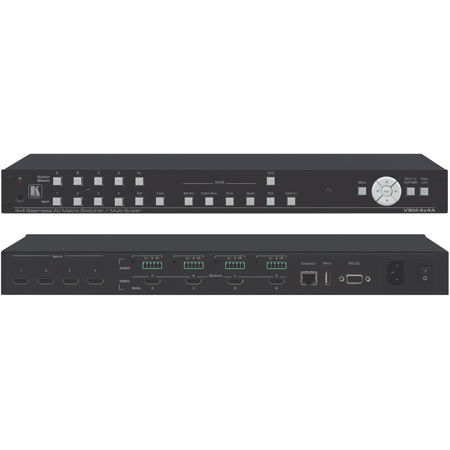

Kramer Electronics VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler

Just imagine the possibilities with the VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler, a versatile piece of audio-visual equipment that functions as a matrix switcher, video wall driver, and multi-viewer. This unit offers seamless switching between inputs, ensuring a clean video cut with frame-to-frame switching devoid of any glitches.

Designed to support HDMI resolutions with deep color, this device can handle up to eight channels of audio. It also includes per-port HDCP and EDID settings for enhanced compatibility and performance. The PixPerfect Scaling Technology by Kramer ensures precision pixel mapping and high-quality scaling for superior image quality.

The VSM-4x4A is equipped with 4 balanced and 4 unbalanced audio outputs, each with independent volume settings. It also supports embedded audio on the HDMI inputs and outputs. Choose from selectable operation modes including a 4x4 matrix switcher, video wall in 2x2 or 1x4 configuration, dual display with Split/PIP/POP, or quad display.

In video wall mode, you have the option for bezel correction. The matrix switching modes include seamless switching for zero-time video cuts or a fade-through-black mode for independent output resolutions. The device maintains constant output sync across all modes of operation.

This matrix switcher supports a range of audio formats including Deep Color, Dolby Digital Plus, DTS, DTS-HD, LPCM 2CH/6CH/8CH, and AC3. It can handle input resolution ranging from VGA to WUXGA and 480i to 1080p, and output resolution from 480p to 1080p. You can also select from multiple aspect ratio options such as Full, 4:3, 16:9, and best fit.

The built-in ProcAmp allows for adjustments in color, hue, sharpness, noise, contrast, and brightness. The front panel control offers easy access to operation mode, TAKE button, and menu buttons. It also features 4 preset memory locations for each operation mode, allowing quick access to common IN-OUT configurations.

The VSM-4x4A comes with non-volatile memory that saves your final settings and additional internal memory to support larger firmware code. Firmware upgrades can be done via Ethernet or the program mini USB connector. Control options are varied, including front panel buttons, RS-232 serial commands transmitted by a touch screen system, PC or other serial controller, infrared remote control transmitter with OSD (on-screen display), and Ethernet with built-in web pages.
