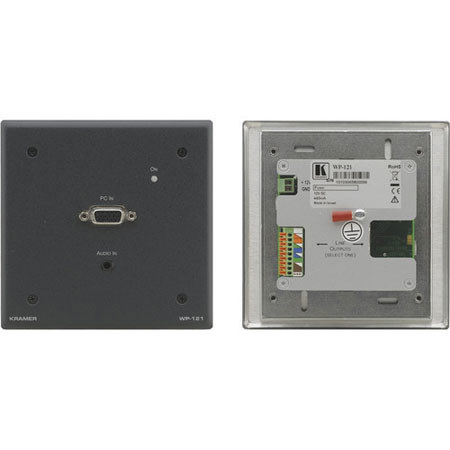

Kramer Electronics WP-121 15-Pin HD & Audio Over Twisted Pair Transmitter
See all Kramer Electronics items
20% Off

Kramer Electronics WP-121 15-Pin HD & Stereo Over Twisted Pair Active Wall Plate Transmitter with EDID

SKU: KRWP121 MFR: WP-121
Be the first to review this itemAsk a Question
$144.80
$181.00
Save: $36.2 (20%)
Earn VIP Reward Points

Key Features

  • Extend your display reach with this durable Kramer Electronics twisted pair transmitter.
  • Enjoy crystal-clear audio with a wide 18kHz bandwidth using this power supply.
  • Achieve up to UXGA, 1080p resolution for stunning visuals via video cables.
  • Simplify installations with this active wall plate transmitter; easy to install!
  • Ensure safety with robust video signal transmission, 60dB S/N ratio at 5MHz.
  • This compatible wall unit offers reliable performance and a 7-year warranty.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$37.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics WP-121 Specifications

  • Input

    1 UXGA on a 15-Pin HD (F) connector; 1 unbalanced stereo audio on a 3.5mm mini jack

  • Output

    1 STP on an 9-pin terminal block; 1 STP on an RJ-45 connector

  • Max Output Level

    Video: 2Vpp, Audio: 2.8Vpp

  • Resolution

    Up to UXGA, 1080p

  • Audio Bandwidth

    18kHz

  • Diff. Gain

    1.8%

  • Diff. Phase

    0.3Deg

  • K-Factor

    <0.05%

  • S/N Ratio

    Video: 60dB at 5MHz, Audio: 71dB at 1kHz

  • Coupling

    Video: AC, Audio: AC

  • Audio THD + Noise

    0.07%

  • Audio 2nd Harmonic

    0.001%

  • Power Consumption

    12V DC, 340mA (feeding TP-112 or TP-122-od receiver)

  • Dimensions (W x D x H)

    2 gang: 4.49 x 1.4 x 4.49" / 11.4 x 3.5 x 11.4cm

  • Weight

    0.14kg (0.31lbs) approx.

About Kramer Electronics WP-121

The Kramer Electronics WP-121 15-Pin HD & Stereo Over Twisted Pair Transmitter converts input video signals to twisted pair signals using twisted pair cables (UTP/STP) at resolutions up to UXGA and 1080p. When used with a compatible receiver, the transmitter can send signals up to 320' (100 m). In addition, the transmitter is compliant with the HDTV video system standards.

With EDID (extended display identification data) capture, the twisted pair transmitter copies and stores EDID information and avoids compatibility issues with the connected display later. Using the Power Connect System, a single power connection can be used to power both transmitter/receiver units, when the devices are located within a distance of 150' (50 m).

Kramer Electronics WP-121 Features

  • Converts input video signals to twisted pair signals using twisted pair cables (UTP/STP) at resolutions up to UXGA and 1080p
  • Can send signals up to 320' (100 m), when used with a compatible receiver
  • Compliant with the HDTV video system standards
  • EDID (extended display identification data) capture
  • Copies and stores EDID information and avoids compatibility issues with the connected display later
  • Power Connect System - uses a single power connection to power both transmitter/receiver units, when the devices are located within a distance of 150' (50 m)
  • RJ-45 or 9-pin terminal block connectors

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your display reach with this durable Kramer Electronics twisted pair transmitter.
  • Enjoy crystal-clear audio with a wide 18kHz bandwidth using this power supply.
  • Achieve up to UXGA, 1080p resolution for stunning visuals via video cables.
  • Simplify installations with this active wall plate transmitter; easy to install!
  • Ensure safety with robust video signal transmission, 60dB S/N ratio at 5MHz.
  • This compatible wall unit offers reliable performance and a 7-year warranty.

What's in the box:

  • Kramer Electronics WP-121 15-Pin HD & Stereo Over Twisted Pair Transmitter
  • Power Supply
  • Kramer Electronics 7 Year Limited Warranty
