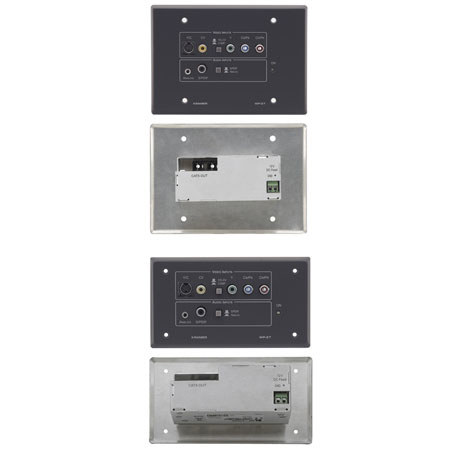

Kramer Electronics WP-27 Twisted Pair Active Wall Plate Transmitter
See all Kramer Electronics items

Kramer Electronics WP-27 CV/Component with Stereo or S/PDIF Audio Over Twisted Pair Active Wall Plate Transmitter

SKU: KRWP27
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics RTBUS-11: Picture 1 regular
Kramer Electronics RTBUS-11 Round Table Mount Solution, Brush Clear
$136.00
Kramer Electronics RTBUS-11: Picture 1 regular
Kramer Electronics RTBUS-11 Round Table Mount Solution, Black Anodized
$148.80
Kramer Electronics WA-1H: Picture 1 regular
Kramer Electronics WA-1H 3.5mm Stereo Audio to Terminal Block Wall Plate Insert
$33.00$26.40
Kramer Electronics WA-1XLF: Picture 1 regular
Kramer Electronics Kramer WA-1XLF XLR (F) Wall Plate Insert, Dual Slot
$25.00$20.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary function of the Kramer Electronics WP-27?

The Kramer Electronics WP-27 is a twisted pair transmitter that converts composite or component video and unbalanced stereo or S/PDIF audio signals into a twisted pair signal.

Is the WP-27 compatible with any other devices?

Yes, the WP-27 works seamlessly with the WP-28 to convert the twisted pair signal back into the original video formats.

Can the WP-27 be installed on a wall?

Yes, the WP-27 has a user-friendly design that allows for easy wall installation and access.

Is the WP-27 suitable for professional use?

Yes, the WP-27 is a high-quality and versatile device that is suitable for both professional and personal applications.

Who manufactures the WP-27?

The WP-27 is manufactured by Kramer Electronics, a reputable brand known for producing high-quality audio and video equipment.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics WP-27 Specifications

  • Input

    1 s-Video (Y/C) 1Vpp/75Ohm (Y), 0.3Vpp/75Ohm (C) on a 4-pin connector; 1 composite video (CV) 1Vpp/75Ohm on an RCA connector;1 component 1Vpp/75Ohm (Y,Pb,Pr) on 3 RCA connectors;1 S/PDIF (digital audio) on an RCA connector; 1 unbalanced stereo audio on a 3.5mm mini jack

  • Output

    1 RJ-45 CAT 5 shielded connector (CAT 5 out)

  • Resolution

    Up to UXGA, up to 1080p

  • Controls

    Video input selector button, audio input selector button

  • Bandwidth (-3db)

    Audio: 20Hz to 20kHz at 0.5dB

  • S/n Ratio

    Audio: <-80dB

  • Total Gain

    Audio: analog/analog: 0dB; analog/ S/PDIF: -12dBFS

  • Coupling

    AC

  • Thd+n

    Audio: <0.01%

  • Power Consumption

    12V DC, 200mA

  • Dimensions (W x D X H)

    16.2 x 4.08 x 11.4cm / 6.38 x 1.6 x 4.49"

  • Weight

    0.3kg / 0.67lbs (Approx.)

About Kramer Electronics WP-27

Are you in search of a reliable and high-quality solution for transmitting audio and video signals? Look no further than the Kramer Electronics WP-27 CV/Component with Stereo or S/PDIF Audio Over Twisted Pair Active Wall Plate Transmitter. This innovative device, designed by the reputable brand Kramer Electronics, is a twisted pair transmitter that is perfect for composite video or component video and unbalanced stereo or S/PDIF audio signals.

The WP-27 not only converts a single audio and video input into a twisted pair signal but also works seamlessly with the WP-28 to convert it back into the original video formats. Its user-friendly design allows for easy installation and access, as it can be conveniently mounted on a wall.

This versatile product is compatible with both stereo and S/PDIF audio over twisted pair, making it an ideal choice for a variety of applications. Whether you're a professional in the audio and video industry or a tech enthusiast, the Kramer Electronics WP-27 CV/Component with Stereo or S/PDIF Audio Over Twisted Pair Active Wall Plate Transmitter is a durable and reliable choice that delivers high-quality performance.

Kramer Electronics WP-27 Features

  • Video Switching: Between CV and component or s-Video and component video
  • Audio Switching: Between unbalanced stereo and S/PDIF audio
  • Power Connect System: Only one unit in a system, either the transmitter or the receiver needs to be connected to a power source
  • System Range: Up to 100m (328.08')
  • Cable: UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality twisted pair transmitter by reputable brand, Kramer Electronics
  • Transmits composite video or component video and unbalanced stereo or S/PDIF audio signals
  • Converts single audio and video input into a twisted pair signal
  • Compatible with WP-28 for converting the signal back into original video formats
  • User-friendly design for easy wall installation and access
  • Versatile and suitable for a variety of professional and personal applications

What's in the box:

  • Kramer Electronics WP-27 Twisted Pair Active Wall Plate Transmitter
  • Power Supply
  • Kramer Electronics 7 Years Limited Warranty
