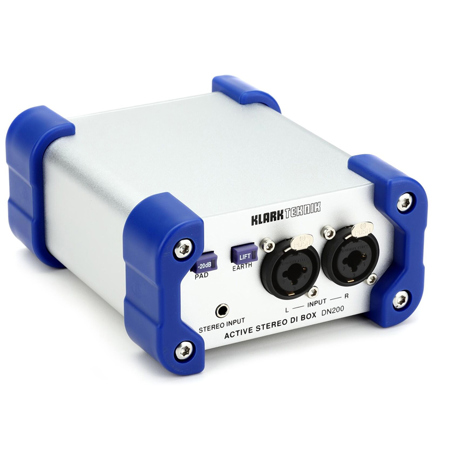

Klark Teknik DN200 V2 2-Channel Active DI-Box with Extended Dynamic Range and Sum/Split Options

SKU: KTDN200V2 MFR: 000-E3G00-00010
$159.00
$169.00
Save: $10 (6%)
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this active DI box, perfect for studio & stage.
  • Enjoy extended dynamic range for clear, detailed audio with low noise in every recording.
  • Use the DN200 V2's sum/split options for versatile signal routing during live performances.
  • This durable DI box features combo XLR & TRS inputs, ideal for various instruments.
  • Get balanced output with ground lift, eliminating hum and buzz for cleaner recordings.
  • Phantom power ensures optimal performance; a must-have DI for any audio professional.
See More Product Details
Slight Delay?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?STEVE V : Past experience with single channel DI was stellar. Klark Teknik always comes through with rock solid product that's high quality.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Klark Teknik DN200 Specifications

Inputs
  • Connectors

    2x combo XLR, 2x 1/4" TRS link jacks, 1/8" stereo TRS jack

  • Impedance

    1 M Ohm (combo & link jacks balanced), 20 k Ohm (combo XLR only), 500 k Ohm (1/8" stereo TRS jack unbalanced)

  • Max input level

    28 dBu combo XLR and TRS link jacks (pad enabled), 21 dBu 1/8" TRS jack (pad enabled)

  • Attenuator

    20 dB pad

Outputs

Jump to...
  • Connectors

    2x 3-pin XLR

  • Impedance

    50 Ohm

  • Max output level

    13 dBu with 10 k Ohm load, 10 dBu with 600 Ohm load

  • Min load

    600 Ohm

  • Noise

    103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 k Ohm resistor

  • Frequency response

    20 Hz to 20 kHz, +/-1 dB, 10 k Ohm load

  • Distortion (THD + N)

    Typically <0.005% @ 1 kHz, +10 dBu

  • Crosstalk

    <100 dB @ 1 kHz, inputs terminated

Power Requirement

Jump to...
  • Voltage

    +48 V phantom

  • Current consumption

    <10 mA per channel

Physical

Jump to...
  • Dimensions

    4.7 x 2.5 x 5.6" (118 x 63 x 142mm)

  • Weight

    1.43 lbs (650g)

  • UPC Code

    644216645602

About Klark Teknik DN200

Where professional audio quality and robustness are paramount, the DN200 V2 2-Channel Active DI-Box shines. Esteemed by both audio engineers and musicians, this DI-Box delivers high headroom, dynamic response, and sonic clarity, faithfully reproducing the nuances of both electric and acoustic instruments.

Designed for professional applications, the DN200 V2 is compatible with +48 V phantom power, a standard feature on all mixing consoles. Its innovative design boasts a significantly higher clipping point than many other active DI Boxes, accommodating much higher-level input signals without the need for an attenuating pad. This increased headroom, coupled with a very low noise input circuit topology, offers a wide dynamic range, requiring only the -20 dB pad when connecting to instrument amplifier outputs or other high-level signal sources.

Constructed to withstand the rigors of touring, the DN200 V2 is encased in a thick aluminum extrusion, further protected by tough silicone rubber corners. This ensures the longevity of the electronics within, even in the most demanding environments.

The DN200 V2 features balanced transformer-isolated outputs, selected after exhaustive listening tests with a variety of active and passive bass guitars, electro-acoustic guitars, and electronic musical instruments. The audio transformer and surrounding components were carefully chosen to deliver the best musical sound, with the line-driving characteristics of the transformer output optimized for the best frequency and phase responses.

The DN200 V2 also features dual-impedance stereo inputs, designed using advanced analogue techniques to create the high input impedance required by passive guitar and bass pickups, while keeping component values low to minimize noise. This results in a very low noise floor and an unrivalled dynamic range for a +48 V phantom powered DI Box.

For added convenience, the DN200 V2 features illuminated -20 dB Pad and Earth Lift switches, as well as illuminated Sum and Split switches. These, along with the +48V phantom power indicator LED's, provide a clear status display, even from a distance. The Sum switch allows stereo input signals to be combined into a mono signal, while the Split switch sends the L input to both the L and R output XLR's.

The DN200 V2 is also equipped with a Stereo input mini jack, ideal for connecting MP3 players or mobile phones. The 1/4" TRS Link Thru jacks can be used for a parallel input connection to a guitar or bass amplifier.

Designed for the road, the DN200 V2 features a tough aluminum extrusion and protective rubber corners, ensuring its durability and electrical isolation. Premium Neutrik XLR connectors are used to ensure reliable audio connections, making the DN200 V2 a reliable choice for professional audio applications.

Klark Teknik DN200 Features

  • 2-Channel Active DI box with high-headroom design and +48 V phantom power for extended dynamic range
  • Sum and split options for flexible signal routing
  • Fully transformer-isolated design ensures electrical separation between PA and stage equipment
  • Balanced line inputs on Neutrik Combo XLR and high impedance 1/4" TRS connectors
  • Stereo input on 1/8" TRS for connection of consumer audio equipment
  • Independent phantom powering for each channel for maximum reliability
  • Global 20 dB input pad and earth lift switches
  • Aluminum extrusion casing with protective rubber corners
  • Compact and rugged design

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine sound quality with this active DI box, perfect for studio & stage.
  • Enjoy extended dynamic range for clear, detailed audio with low noise in every recording.
  • Use the DN200 V2's sum/split options for versatile signal routing during live performances.
  • This durable DI box features combo XLR & TRS inputs, ideal for various instruments.
  • Get balanced output with ground lift, eliminating hum and buzz for cleaner recordings.
  • Phantom power ensures optimal performance; a must-have DI for any audio professional.

What's in the box:

  • Klark Teknik DN200 V2 2-Channel Active DI-Box with Extended Dynamic Range and Sum/Split Options
  • Klark Teknik 1 Year Limited Warranty
