Klark Teknik DN 30R 2-Channel Dante Audio Receiver for High-Performance Networking

SKU: KTDN30R

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Klark Teknik DN 30R Specifications

Connectors

Connectors

Jump to...
  • Ethernet

    1x RJ45

  • Analogue audio outputs

    2x XLR, 75 Ohm balanced
    1/8" TRS, stereo,20 Ohm unbalanced

  • Max. output level

    +22 dBu

  • Phones

    1x 1/8" TRS, stereo

Controls

Jump to...
  • Level

    0 to -Infinite dBu, adjustable (phones only)

  • LED indicators

    Sync, Sys, On, PoE

  • Frequency response

    20 Hz to 20 kHz ( +/-0.1 dB)

  • THD + N @ 1 kHz

    0.0015% unweighted

  • Signal-to-noise ratio

    98 dB

  • Sample rate

    44.1, 48, 88.2, 96 kHz

  • Dynamic range

    116 dB unweighted

  • Crosstalk LR

    -110 dB

  • Power adapter

    24 V DC, 300 mA, center positive

Physical

Jump to...
  • Dimensions (H x W x D)

    Without bumpers: 2.1 x 4.3 x 4.1" (54 x 108 x 103mm)
    With bumpers: 2.5 x 4.6 x 4.4" (63 x 118 x 112mm)

  • Weight

    1.5 lbs (0.7kg)

  • UPC Code

    4033653081276

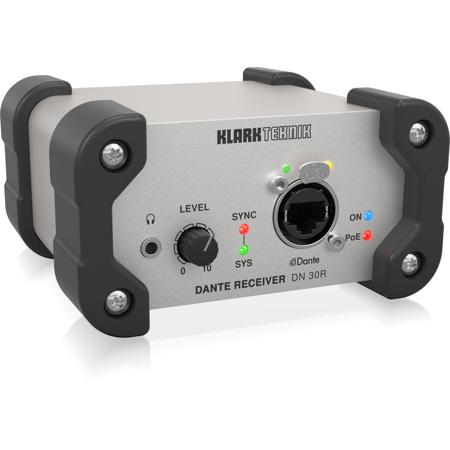

About Klark Teknik DN 30R

DN 30R
The Klark Teknik DN 30R Dante Audio Receiver is a simple and convenient way for connecting active loudspeakers, amplifiers or mixers to a Dante network. It's compact size as well as the flexibility of its features and mounting options make it the perfect networking solution for hospitality and event spaces, performance and installed audio and so much more. The DN 30R can receive signals from any Dante transmitter via a standard CAT5e or CAT6 cable. This same connection can be used to power the device through Power over Ethernet or via a 24-volt DC input.

Simple and Flexible
The DN 30R can easily connect to any Dante equipped transmitter such as the Klark Teknik DN 30T. Its high headroom design and 96kHz Digital to Analog conversion ensures superior sound quality when connected a mixing console, amplifier or speakers. The DN 30R also features high-quality Neutrik XLR connectors for the highest signal integrity and reliability. A built-in headphone amplifier can be plugged into allowing for convenient local monitoring. Its volume can also be adjusted via the level knob.

Compact and Rugged Construction
The ultra-compact DN 30R is built to handle the rigours of life on the road via a thick and rugged aluminum extrusion that protects the electronics. The enclosure's roadworthiness is further enhanced though the implementation of rubber corner bumpers. The included floor and wall mounting brackets also make fixed installation easy.

Klark Teknik DN 30R Features

  • 2-Channel audio receiver for connecting active loudspeakers, amplifiers or mixers to Dante-networks
  • Automatically reconnects with any configured Dante transmitter such as Klark Teknik DN 30T
  • Plug'n'play experience in networked audio
  • Perfect for hospitality and event spaces, performance and installed audio, etc.
  • 96 kHz D/A conversion and high headroom design offers superior sound quality
  • Built-in headphone amplifier for local monitoring
  • Aluminum extrusion casing with protective rubber corners
  • Floor and wall mount brackets for fixed installation (included)
  • Quality Neutrik XLR connectors for highest reliability
  • Compact and rugged design
  • Designed and engineered in the U.K.

Key Features

  • 2-Ch audio receiver for connecting active loudspeakers, amplifiers or mixers to Dante-networks
  • Automatically reconnects with any configured Dante transmitter such as Klark Teknik DN 30T
  • Plug'n'play experience in networked audio
  • Perfect for hospitality and event spaces, performance and installed audio, etc.
  • 96 kHz D/A conversion and high headroom design offers superior sound quality
  • Built-in headphone amplifier for local monitoring

What's in the box:

  • Klark Teknik DN 30R 2-Channel Dante Audio Receiver for High-Performance Networking
  • Klark Teknik 10 Year Limited Warranty
