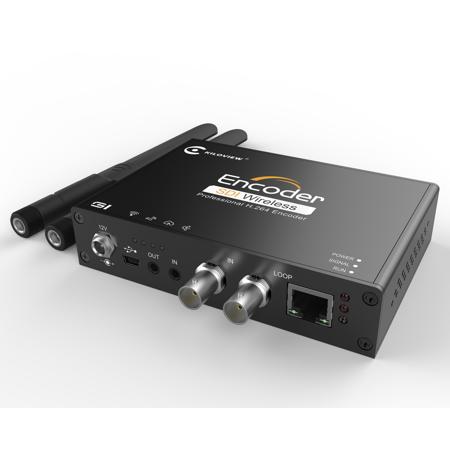

Kiloview G1 H.264 HD/3G-SDI Wireless Video Encoder

Professional Wireless H.264 Video Encoder
Kiloview G series wireless video encoders can encode SDI/HDMI video sources into network streams through WIFI/Ethernet/USB expand 4G, and realize long-distance high-definition transmission/live video transmission on Internet WAN or local area network LAN. G series fully support SRT, RTMP, RTMPS, HLS, UDP, RTP, RTSP, Onvif and other protocols.
G1: SDI input/loop out; G2: HDMI input/loop out.

Stable Wireless Connection
The G series has a built-in dual-band (2.4G/5GHz) WiFi module, which achieves more stable wireless transmission. It also supports 4G-Lte USB dongle for mobile application.

Real HD 1080P60 Video supported
It supports reali HD video input with resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.

Faster While Better
With optimized algorithm, the encoding latency is <67ms. With adjustable bitrate from 64Kbps up to 40Mbps, better video quality is available, typically even at 1Mbps@720p, 1.5Mbps@1080p network, video quality is good enough.

Live Broadcast on Multiple Platforms
Dual stream output (main stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platforms (with main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz).

More Protocols Compatible
The G series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System

Analog and intercom supported - More than video
G1/G2 supports SDI/HDMI embedded and 3.5mm analog audio coding, so you can use KILOVIEW voice intercom software to realize real-time voice intercom.

Let's go social
With FPGA processing unit, it can easily realize the functions of rotating/ central cropping for vertical/ horizontal video which makes it social media friendly.

LOGO/ Image/ Text Overlay
Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!

It's a Recorder
Recording prepares for future. Kiloview G series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.

Applications
TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports
