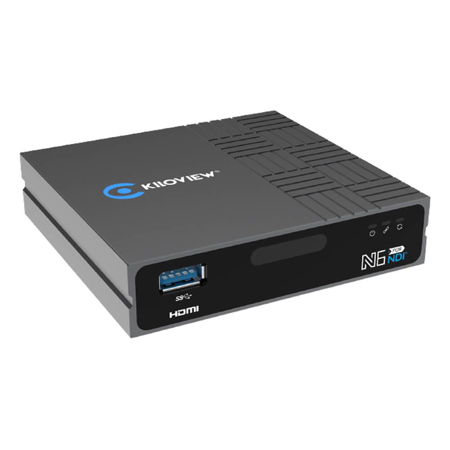

Kiloview N6 HDMI to NDI/NDI|HX Bidirectional Converter

Experience the power and versatility of the N6 HDMI to NDI/NDI|HX Bidirectional Converter from Kiloview, your gateway to the dynamic world of NDI. This compact yet robust device serves as a bi-directional NDI converter, capable of both encoding and decoding. It accepts HDMI input and provides loop output, making it a valuable addition to any professional video setup.

The N6 stands out with its support for NDI high bandwidth, enabling it to process NDI sources from any camera, software, or device seamlessly. This feature-rich converter boasts an array of functionalities such as Power over Ethernet (PoE), a large LCD display with tally, PTZ control, and 3.5mm audio line in/out. It also supports multi-channel audio encoding, intercom, and centralized management, making it a cost-effective solution for high-quality, low-latency video production.

Switch between encoding and decoding modes effortlessly on the user interface. In encoding mode, the N6 transforms HDMI signals into NDI High Bandwidth video streams. In decoding mode, it automatically adapts to the NDI High Bandwidth and outputs through HDMI.

The N6 also supports 3.5mm analog audio line in/out or embedded audio, with a maximum of 4 CH audio encoding. It further enhances communication with support for voice intercom when paired with the Kiloview Intercom server.

For a superior user experience, the N6 is equipped with a 1.14-inch LCD screen and touch buttons. This built-in screen allows you to monitor connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.

In decoding mode, preset up to 9 NDI sources from the web UI and switch between them without any black screen, flashing, or lagging. The N6 also supports PTZ control via USB to serial RS232/485/422, and over IP with different protocols, eliminating the need for extra cables.

The N6 offers the convenience of controlling your output source with a single press when connected to a USB keypad in decoder mode. It even allows you to control a PTZ camera using the USB keypad, making it an affordable PTZ keyboard solution.

With the N6, you can record all inputs in .MOV/.MP4 format through a USB 2.0 port or NAS, supporting simultaneous streaming and recording for diverse applications. Power your N6 with PoE for a single cable connection, or use a USB power or camera battery thanks to its wide DC input range from 5V to 18V.

Additional features of the N6 include centralized management, tally, and easy mounting, making it a comprehensive solution for your NDI encoding and decoding needs.
