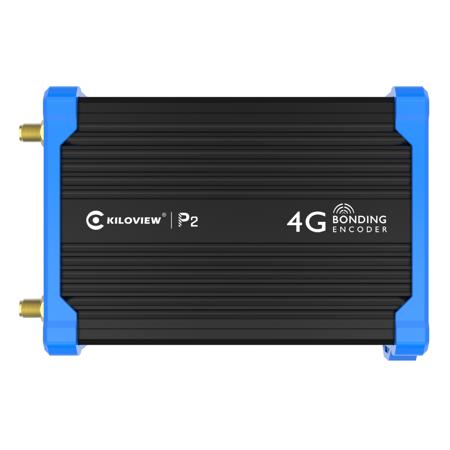

Kiloview P2 HD HDMI Wireless 4G-LTE Bonding Video Encoder

Anytime Anywhere
Kiloview P series video encoder is a professional high-end encoding device specially designed for mobile applications. It can encode SDI or HDMI video source to H.264 IP streams and then transmit it to the internet live broadcast platforms through a multi-channel 4G-LTE network (bonding). It also supports wired/wifi network transmission.
P1 supports SDI input, while P2 supports HDMI input.

Fast and Stable Network
Supports 5 channels bonding including 2 Internal + 2 External by USB Modems 4G-LTE and 1 channel Wifi/Ethernet by USB, transmission bandwidth is greatly expanded to improve the reliability of video wireless transmission.

The most optimized aggregation algorithm for bonding with auto separate and deliver data, dynamic selection, redundant and error correction, it will never go offline.

Portable Design- Perfect for Outdoor Live Streaming
• Built-in large-capacity lithium battery lasts > 3 hours
• Mountable on camera by hotshoe, easy and convenient for portable application.
• Chargeable with V-mount battery with 5-16v power supply, making continuous working possible.
• Compact size: Total weight is only 400g (including battery)
• Internal cooling fan makes the encoder adapting to outdoor high temperature conditions.

Flexible bonding options
Kiloview bonding software supports both cloud-based and on-premise deployment by customers, it's more flexible and safe, and cost-effective.

Alternatively single SIM working mode without bonding or 3rd party bonding platform like Omnistream are all compatible.

All Protocols, All at the Same Time
It supports full range protocols including RTSP/ RTMP/ RTMPS/ RTP/ SRT/ HLS/ TS-UDP/ Onvif and customize for SIP etc. That means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It supports ONVIF 1.1/2.0 for easy access to security protection system/NVR system.

Multiple Platform Streaming
Dual-stream output (main-stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platforms. (Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.)

It's a Recorder
Recording prepares for the future. Kiloview P1/P2 can provide simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro TF/USB/NAS with recording files in various format.

Let's Go Social
With the FPGA processing unit, our Encoder can easily realize the functions of rotating/central cropping for vertical/horizontal video which makes it social media friendly.

Free Overlay
Self-defined text, time and image overlay at any position, announce your copyrights and have fun.

Voice Intercom
With Kiloview voice intercom software (optional), our P series encoder can realize voice intercom function.

Application
P series is a perfect choice for outdoor live broadcast, outdoor production program, outdoor video interaction, outdoor news interview, vehicle mobile video transmission, drone shooting transmission, and so on.
