Sound Devices USBPre 2 High-Resolution Two-Channel Microphone Interface for Computer Audio, 10Hz-20kHz Frequency Response

SKU: SDUSBPRE2 MFR: USBPRE 2
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this high-resolution recording mixer, perfect for studio sessions.
  • Enjoy ultra-low noise performance, ensuring clean recordings for professional audio mixing.
  • Utilize the versatile USB interface for seamless integration with your favorite recording software.
  • Achieve precise sound shaping with the built-in EQ control, optimizing your audio quality.
  • Experience exceptional durability, making this mixer ideal for both studio and on-the-go use.
  • Record clear vocals and instruments with wide 10Hz-20kHz frequency response on this mixer.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?phuoc t : the good sound

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sound Devices USBPre 2 Specifications

  • Frequency Response (reference 1 kHz)

    10 Hz - 20 kHz, +/- 0.5 dB (any input to PC recording)
    10 Hz - 20 kHz, +/- 1.0 dB (PC source to AUX output)

  • THD+N (22Hz-22kHz measurement bandwidth)

    0.05% max (any input to PC recording, gain control at min, input driven to -6 dB FS)
    0.009% max (AUX output, 0 dBV output, 100 Ohms load)
    0.05% max (HEADPHONES output, 2 V RMS output, 600 Ohms load)

  • E.I.N. (MIC inputs)

    -127 dBu min (22 Hz - 22 kHz bandwidth, 150 Ohms source, gain control fully clock-wise, 15 dB pad out)

  • Input Sensitivity (typical, for 0 dBFS)

    Mic: -9 dBu min, -60 dBu max
    Mic (15 dB pad): +6 dBu min, -58 dBu max
    Line: +29 dBu min, +10 dBu max
    Aux: +12 dBu min, -7 dBu max

  • Input Clipping Level (1% THD)

    Mic: -10 dBu
    Mic (15 dB pad): +4 dBu
    Line: +28 dBu (12.3 V rms)
    Aux: +9 dBu (2.0 V rms)

  • Input Impedance (actual)

    Mic: 4kOhms, active-balanced
    Mic (15 dB pad): 4kOhms, active-balanced
    Line: 60kOhms, active-balanced
    Aux: 80kOhms, active-balanced

  • Input Limiter Threshold

    Mic: -4 dB FS

  • Output Clipping Level

    Balanced XLR: +18 dBu with 100kOhms load
    Aux: +8 dBu (2.0 V rms) with 100kOhms load
    Headphones: +11 dBu (2.75 V rms) with 600 Ohms load (1% THD, PC-controlled output levels at max)

  • Output Impedance

    Balanced XLR (Line level): 500 Ohms
    Balanced XLR (Mic level): 5 Ohms
    Aux: 2kOhms

  • S/PDIF Digital

    24- or 16-bit input

  • A/D Converter

    24-bit resolution. 114 dB typical dynamic range (22 Hz - 22 kHz bandwidth, A-weighted)

  • D/A Converter

    24-bit resolution, 112 dB typical dynamic range (22 Hz - 22 kHz bandwidth, A-weighted)

  • Sample Rates / Bit Depths

    Recording: 8-, 16- or 24-bit at 8, 16, 32, 44.1, 48, 96 or 192 kHz
    Playback: 24-bit at 8, 16, 32, 44.1, 48, 96 or 192 kHz

  • Master Clock

    Crystal based, low jitter

  • Metering

    23-segment, 44 dB total range, peak ballistics. 0 dB on meter = 0 dBFS (0 dB referenced to full-scale digital)

  • Phantom Power

    48 V through 6.8 kOhms resistors. Each mic input will supply 10 mA

  • Powering

    USB bus powered, soft-start meets USB hot-plugging power requirements (5 V, 100 mA max current drawn during enumeration)
    5 V, 500 mA max current from USB port (USBPre 2 will not function if connected through a passive USB connection or hub)

  • Certifications

    Meets FCC Part 15 Class B

  • Dimensions (H x W x D)

    1.7 x 7.25 x 4.25" / 4.31 x 18.41 x 10.79cm

  • Weight

    1.13lbs / 0.51kg

  • UPC Code

    859108005505

About Sound Devices USBPre 2

Let the Sound Devices USBPre 2 Microphone Interface revolutionize your computer audio experience. This high-resolution, compact, and portable hardware interface is compatible with both Mac and Windows operating systems, making it a versatile tool for all your digital audio needs.

Designed to connect professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources, the USBPre 2 stands out as the industry's top-performing and most adaptable portable interface. It features two discrete-transistor microphone preamps equipped with 24-bit converters and sampling rates that reach up to 192 kHz, ensuring the highest quality audio performance in any portable interface.

The USBPre 2's preamplifiers share a topology with Sound Devices' award-winning 744T Digital Audio Recorder. With peak limiters, high-pass filters, and a 15 dB pad, this device offers superior overload protection. All analog-to-digital and digital-to-analog conversions are performed by the USBPre 2, guaranteeing superior audio performance.

The USBPre 2 is a class-compliant audio device, allowing for effortless plug-and-play connection to computers running Mac OS, Windows, and Linux. No drivers are required for installation, and all additional controls and settings are conveniently located on the back panel DIP switches. The USB port also powers the unit, whether connected as an audio interface or used in Stand-Alone operation.

For maximum output connectivity flexibility, the USBPre 2 includes a variety of output connection types, such as balanced mic- or line-level on XLR, unbalanced consumer line-level on RCA, S/PDIF coaxial (RCA), and optical (Toslink). Each output has its own dedicated front-panel level control, allowing you to connect to powered loudspeakers, hi-fi systems, or use the coaxial S/PDIF output in Stand-Alone mode for a portable microphone preamplifier with digital output.

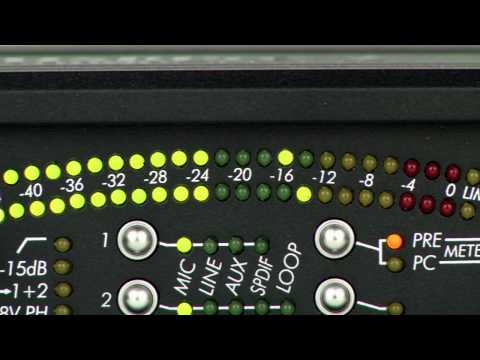

The USBPre 2 also features a 23-segment, multicolor LED meter for precise level indication, switchable between input signal metering and playback signal metering. This device can also operate in Stand-Alone mode, functioning as a high-quality, portable microphone preamplifier and analog-to-digital converter.

Like all Sound Devices products, the USBPre 2 is built to withstand the most demanding environments. Its robust construction features an extruded aluminum chassis and panels, machined knobs, metal connectors, and laser-etched nomenclature, ensuring it can endure years of use.

Experience the superior audio performance and flexibility of the Sound Devices USBPre 2 Microphone Interface for Computer Audio, a tool designed to meet the needs of professionals and audio enthusiasts alike.

Sound Devices USBPre 2 Features

  • Extended bandwidth, low-noise microphone preamplifiers with 48 V phantom, limiters, high-pass filters, and 15 dB pad
  • Dynamic range greater than 114 dB (in 24-bit operation)
  • Flat 10 Hz to 40 kHz (@96 kHz SR) audio bandwidth with very low distortion characteristics
  • Each input individually selectable between microphone, line, and aux level signals (both channels selected simultaneously for S/PDIF connections)
  • Precision, 23-segment, multicolor LED peak/VU meter, selectable between input and output sources
  • High-output headphone amplifier can drive a wide range of headphones
  • Balanced outputs on XLR connectors with dedicated level control can be used to drive line- or mic-level inputs
  • Mix control enables zero-delay monitoring of source audio, computer audio, or a mix of both source and computer audio for multitrack recording or computer telephony
  • Phono (RCA) jacks connect Aux Output to external loudspeakers or preamplifiers
  • Bus powering via USB for convenient, single-cable connection to the computer
  • In Stand-Alone mode the USBPre 2 operates as a microphone preamplifier and analog-to-digital converter
  • Hardware loop-through for test and measurement to send computer audio directly back to an input
  • High-strength extruded aluminum chassis
  • Mac OS X 10.4+, WindowsXP/Vista/7, and Linux, class-compliant audio device
  • Additional features controlled by hardware DIP switches on the back panel; no software-only features and no control panel

Product Documents

User Manual

Key Features

  • Capture pristine audio with this high-resolution recording mixer, perfect for studio sessions.
  • Enjoy ultra-low noise performance, ensuring clean recordings for professional audio mixing.
  • Utilize the versatile USB interface for seamless integration with your favorite recording software.
  • Achieve precise sound shaping with the built-in EQ control, optimizing your audio quality.
  • Experience exceptional durability, making this mixer ideal for both studio and on-the-go use.
  • Record clear vocals and instruments with wide 10Hz-20kHz frequency response on this mixer.

What's in the box:

  • Sound Devices USBPre 2 Microphone Interface
  • USB Cable
  • Rubber Feet
  • Sound Devices 2 Year Limited Warranty
