Broncolor Scope D50 UV/IR Lighting System

SKU: BCB8213000 MFR: B-82.130.00
Earn VIP Reward Points

Key Features

  • Capture forensic photography with exceptional image quality using UV/IR LEDs.
  • Ensure reliable evidence documentation with this durable forensic lighting system.
  • Achieve accurate forensic analysis; the Scope D50 offers consistent calibration.
  • Simplify crime scene investigation; this system is designed for ease of use.
  • Maintain secure data; this lighting system ensures integrity in forensic photography.
  • Trust in its reliability; this Broncolor system is essential for public safety photography.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Broncolor Scope D50 Specifications

  • Materials

    Steel, aluminum, ABS plastic

  • Supply voltage

    85...260 VAC, 47...63 Hz

  • Power input

    < 100W

  • Ambient temperature

    0 to 50 Degree C (32 to 122 Degree F)

  • Ambient humidity

    0 to 85% non-condensing

  • Storage temperature

    -10 to 70 Degree C (14 to 158 Degree F)

  • Light

    Scope D50 UV/IR (82.130.00)
    48 x white LED, color temperature5000K +/- 75K, 1500 lm max., CRI > 90
    48 x LED UV (390 - 395 nm),max. 1600 mW
    48 x LED IR (920 - 960 nm),max. 1600

  • Display / Operation

    2.8" touch display, 240 x 320 pixel, colors / Touch control

  • International protection

    IP20

  • Dimensions

    23.2 x 19.7 x 18.9" (59 x 50 x 48cm)

  • Weight

    21.96 lb (9.96kg) (Dome including camera mount, standholder, adjustable and supporting feet)

  • UPC Code

    7640167062072

About Broncolor Scope D50

Bring the unseen to light with the advanced Scope D50 UV/IR Lighting System by broncolor. This professional-grade lighting system is designed to reveal even the minutest surface details, making it an invaluable tool for photographers, videographers, and researchers alike.

The broncolor Scope D50 is more than just a lighting system; it's a gateway to a new realm of interactive visualization. Unlike traditional photography, the digital recordings produced by the Scope D50 are dynamic and interactive, allowing you to explore and analyze surfaces in a way that was previously impossible.

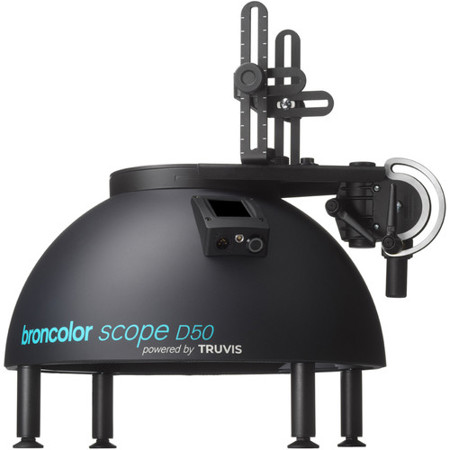

This high-quality lighting system uses optimally arranged LEDs housed in a dome-shaped structure to illuminate objects from multiple angles. The result is an authentic reproduction of the object's shape, color, and texture. The system creates a two-dimensional overall recording from 48 individual images, which can be viewed on any web environment or mobile device.

The broncolor Scope D50 is powered by TRUVIS, a portable surface visualization system that combines scientific and digital innovation with 60 years of photographic lighting experience. This system allows for spatially and temporally unrestricted analysis, as well as subsequent adjustment of the surface illumination.

The Scope D50 is not only versatile but also mobile, making it a trend-setting product in the field of surface visualization. It's ideal for a variety of applications, including cultural heritage imaging, reproduction, and archiving. Whether you're working in a large art museum, a remote archaeological site, or a research institute, the Scope D50 can help you digitally capture and record human treasures for posterity.

The integrated system of the broncolor Scope D50 provides a fast, efficient workflow and ease of use. The user-friendly end-to-end solution, coupled with the TRUVIS Authentica software, allows for subsequent illumination adjustments on any modern PC or notebook.

In summary, the broncolor Scope D50 UV/IR Lighting System is a durable, high-quality, and professional tool that offers unlimited possibilities for exploring and analyzing surfaces. It's more than photography, more than lighting, and more than digitization - it's a revolution in surface visualization.

Broncolor Scope D50 Features

  • Advanced UV/IR Lighting System for professional photography and videography
  • Interactive digital recording allows detailed surface analysis and exploration
  • Dome-shaped LED housing for optimal multi-angle illumination
  • Powered by TRUVIS, combining scientific innovation with 60 years of lighting experience
  • Mobile and versatile, ideal for cultural heritage imaging, reproduction, and archiving
  • User-friendly end-to-end solution with TRUVIS Authentica software for easy workflow and illumination adjustments

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Capture forensic photography with exceptional image quality using UV/IR LEDs.
  • Ensure reliable evidence documentation with this durable forensic lighting system.
  • Achieve accurate forensic analysis; the Scope D50 offers consistent calibration.
  • Simplify crime scene investigation; this system is designed for ease of use.
  • Maintain secure data; this lighting system ensures integrity in forensic photography.
  • Trust in its reliability; this Broncolor system is essential for public safety photography.

What's in the box:

  • Scope D50
  • Broncolor 2 Year Limited Warranty
