Review Summary
Silver
M5 Max 18-Core/32-Core, M5 Ultra 30-Core/64-Core
36GB, 96GB
512GB, 1TB
Apple M5 Max chip:
18-core CPU with 6 super cores and 12 performance cores
32-core GPU
Neural Accelerators
Hardware-accelerated ray tracing
16-core Neural Engine
460GB/s memory bandwidth
Configurable to: M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine (614GB/s memory bandwidth)
Apple M5 Ultra chip:
30-core CPU with 10 super cores and 20 performance cores
64-core GPU
Neural Accelerators
Hardware-accelerated ray tracing
32-core Neural Engine
1.2TB/s memory bandwidth
Configurable to: M5 Ultra with 36-core CPU, 80-core GPU, and 32-core Neural Engine (1.2TB/s memory bandwidth)
Apple M5 Max chip:
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode
Apple M5 Ultra chip:
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Two video decode engines
Four video encode engines
Four ProRes encode and decode engines
AV1 decode
M5 Max:
Supports up to five external displays over any combination of Thunderbolt and HDMI ports:
Five displays: Four displays up to a native resolution of 6K at 60Hz or 4K at 165Hz, plus a fifth display with up to 5K at 60Hz over HDMI
Up to three displays: Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz, plus a third display with up to 5K at 60Hz over HDMI
Supports up to four external displays over a single Thunderbolt port
Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Supports variable refresh rate (VRR), HDR, and multichannel audio
M5 Ultra:
Supports up to eight external displays over any combination of Thunderbolt and HDMI ports:
Eight displays up to a native resolution of 6K at 60Hz or 4K resolution at up to 165Hz
Up to four displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
Supports up to four external displays over a single Thunderbolt port
Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Supports variable refresh rate (VRR), HDR, and multichannel audio
Built-in speaker
3.5mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output
Four Thunderbolt 5 (USB-C) ports with support for:
Thunderbolt 5 (up to 120Gb/s)
USB 4 (up to 120Gb/s)
USB 3 (up to 10Gb/s)
DisplayPort 2.1
Two USB 3 (USB-A) ports (up to 5Gb/s)
HDMI 2.1 port
10Gb Ethernet
3.5mm headphone jack
On front (M5 Max):
Two USB-C ports (up to 10Gb/s)
SDXC card slot (UHS-II)
On front (M5 Ultra):
Two Thunderbolt 5 ports (up to 120Gb/s)
SDXC card slot (UHS-II)
Wireless:
Apple N1 wireless networking chip
Wi-Fi 7 (802.11be)
Bluetooth 6
Thread networking technology
Ethernet: 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
100-240V AC
50Hz to 60Hz, single phase
480W
50 Degree to 95 Degree F (10 Degree to 35 Degree C)
-40 Degree to 116 Degree F (-40 Degree to 47 Degree C)
5% to 90% noncondensing
Tested up to 16,400' (5000m)
macOS
The next generation of Apple Intelligence is centered around you, integrated into your apps, and built with privacy. Apple Intelligence powers Siri AI - an entirely new version of Siri that's more personal, conversational, and powerful, along with helpful features across apps
Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
VoiceOver
Zoom
Motion, display, and text settings
Accessibility Reader
Voice Control
Switch Control
Closed Captions
Live Captions
Personal Voice and Live Speech
App Store
Books
Calendar
Contacts
FaceTime
Find My
Freeform
GarageBand
Home
iMovie
iPhone Mirroring
Keynote
Mail
Maps
Messages
Music
News
Notes
Numbers
Pages
Passwords
Photo Booth
Photos
Podcasts
Preview
QuickTime Player
Reminders
Safari
Shortcuts
Stocks
Time Machine
Tips
TV
Voice Memos
Weather
3.7 x 7.7 x 7.7" (9.5 x 19.7 x 19.7cm)
M5 Max: 6 lbs (2.7kg)
M5 Ultra: 8 lbs (3.6kg)
M5 Ultra 30-Core CPU/64-Core GPU 256GB Memory 2TB SSD: 192223312579 | M5 Max 18-Core CPU/32-Core GPU 36GB Memory 1TB SSD: 192223312593 | M5 Max 18-Core CPU/40-Core GPU 48GB Memory 1TB SSD: 192223312586 | M5 Ultra 30-Core CPU/64-Core GPU 96GB Memory 1TB SSD: 195951078977 | M5 Max 18-Core CPU/32-Core GPU 36GB Memory 512GB SSD: 195951078564








Mac Studio is a tremendously powerful pro desktop. The M5 Ultra chip and the M5 Max chip enable remarkable on-device AI compute. Blast through creative projects and professional workflows with the advanced graphics architecture and faster memory and storage.

Unlock extreme performance for demanding tasks with M5 Ultra, which fuses two M5 Max chips into one. Get a boost with a next-generation CPU, a more powerful GPU with third-generation ray tracing, and a Neural Accelerator built into each GPU core. You can easily color-grade uncompressed 8K footage or run computational fluid dynamics.

Tap into breakthrough performance with a next-generation CPU, a more powerful GPU with third-generation ray tracing, and a Neural Accelerator built into each GPU core. Mac Studio gets a boost with more power to generate real-time media and accelerate complex workflows.

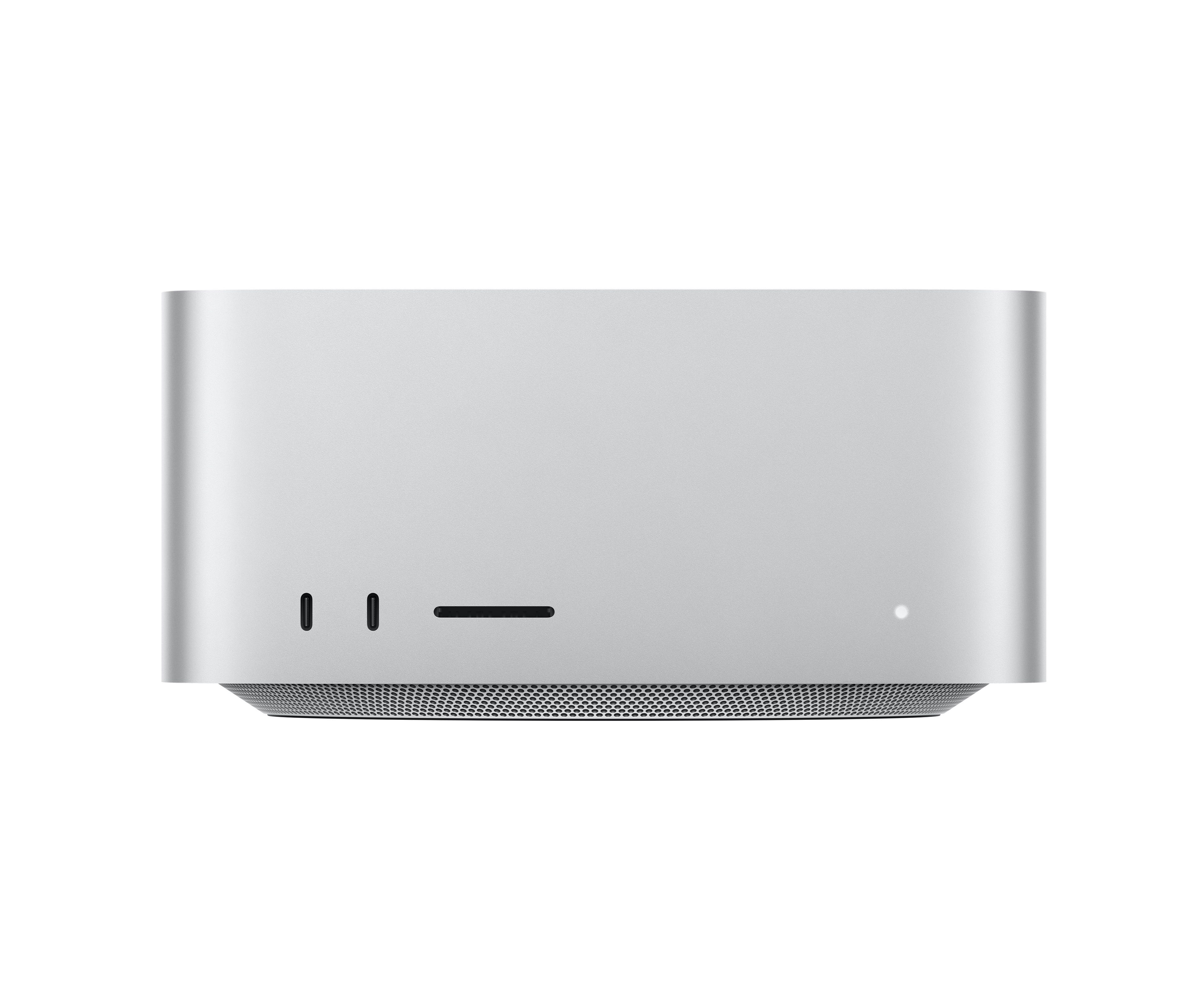

Get up to 512GB (M5 Ultra Chip)/128GB (M5 Max Chip)
unified memory and 1.2TB/s (M5 Ultra Chip)/ up to 614GB/s (M5 Max Chip) memory bandwidth for more speed when processing massive datasets, complex 3D scenes, and inference in AI workflows. And up to 2x faster storage expedites tasks like dense file transfers and loading large projects.

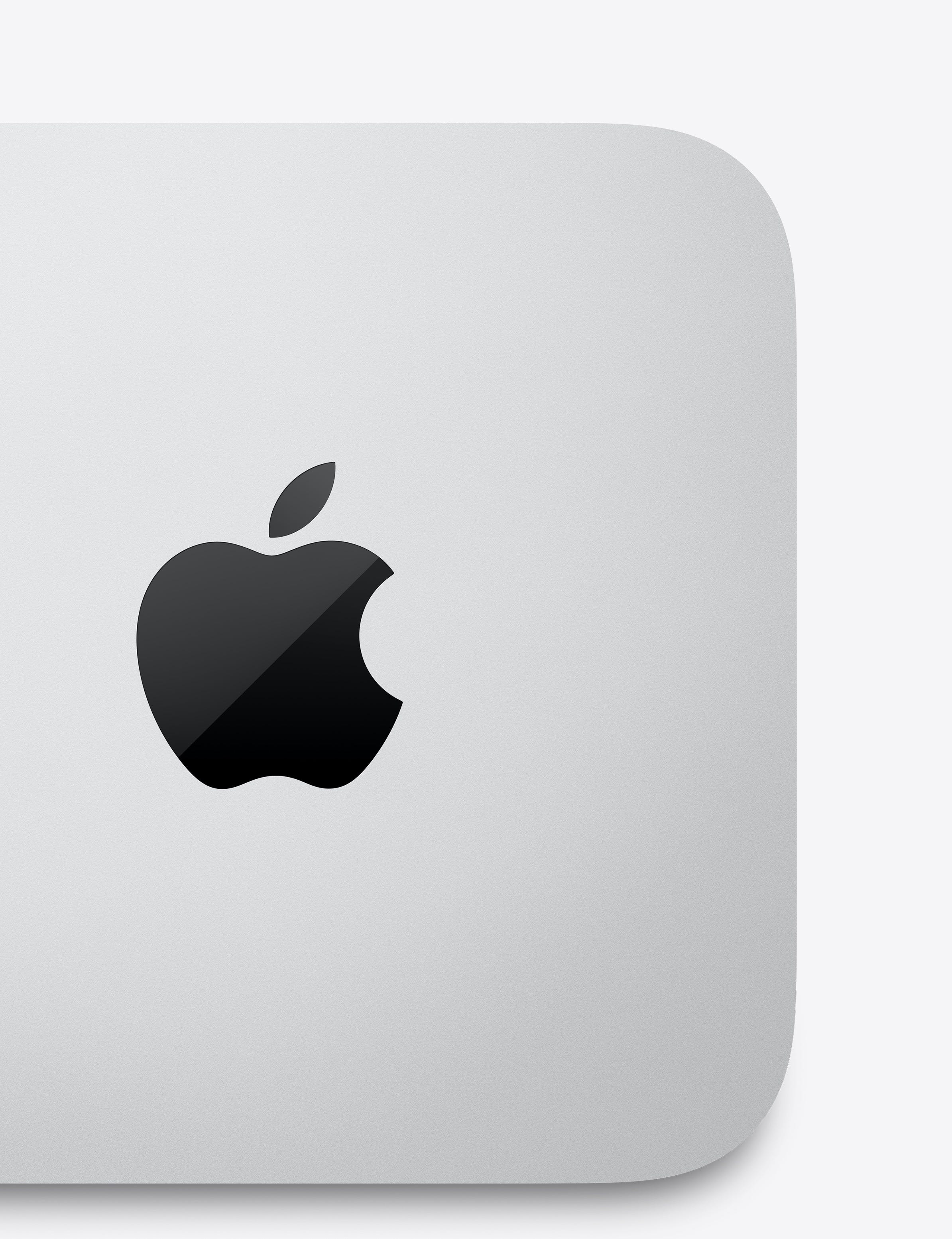

Apple silicon, and every major component that powers it, is designed to run demanding AI workflows like training frontier-class models, directly on device.


Features six Thunderbolt 5 ports with ultra-high bandwidth for linking models in clustered AI compute or PCIe expansion. Includes two USB-A ports, an HDMI port, an SDXC card slot, a headphone jack, and the ability to connect up to eight external displays. It also features the Apple-designed N1 wireless chip for Wi-Fi 7 and Bluetooth 6.

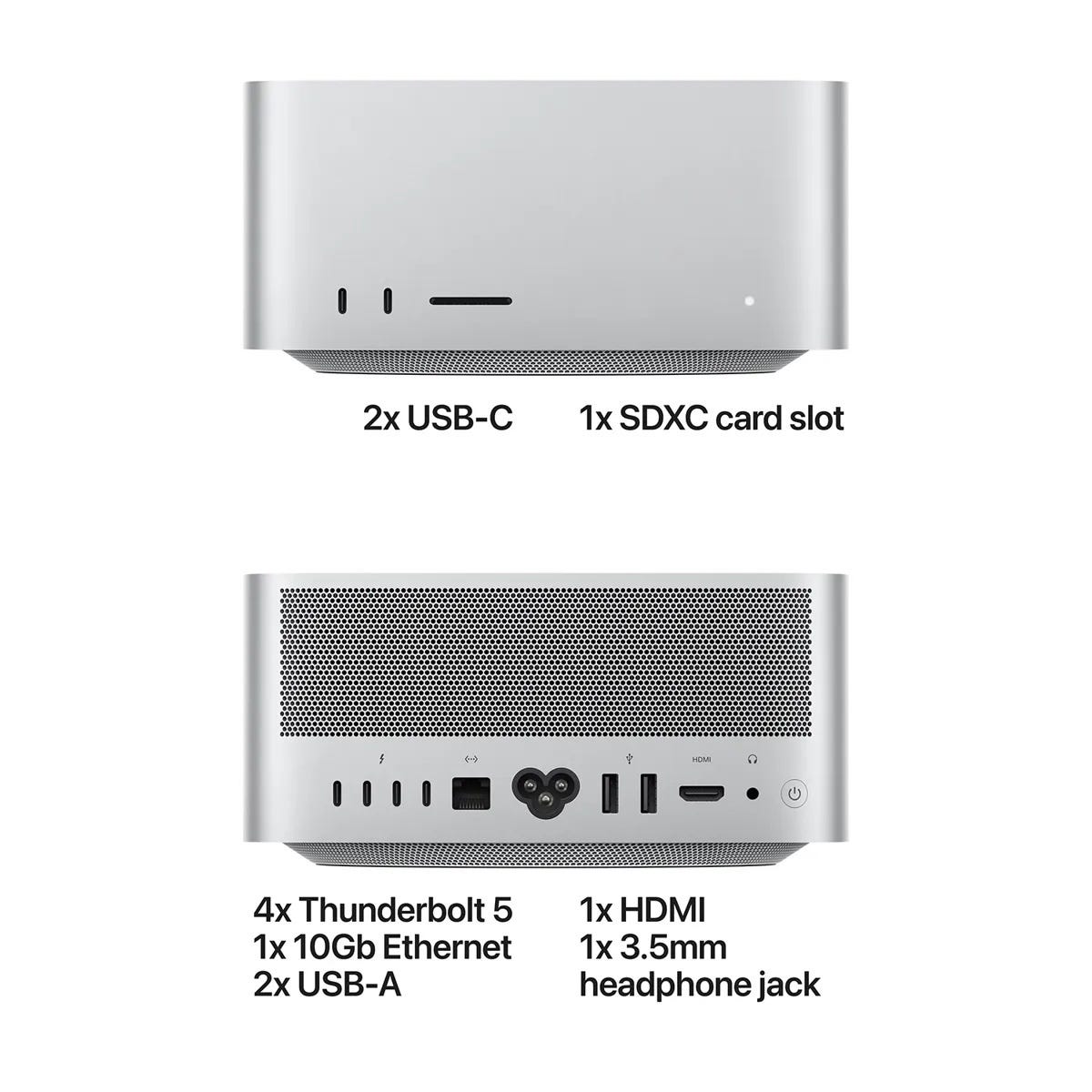

Features four Thunderbolt 5 ports with ultra-high bandwidth for linking models in clustered AI compute or PCIe expansion. Includes two USB-C ports, two USB-A ports, an HDMI port, an SDXC card slot, a headphone jack, and the ability to connect up to five external displays. With the Apple-designed N1 wireless chip for Wi-Fi 7 and Bluetooth 6.

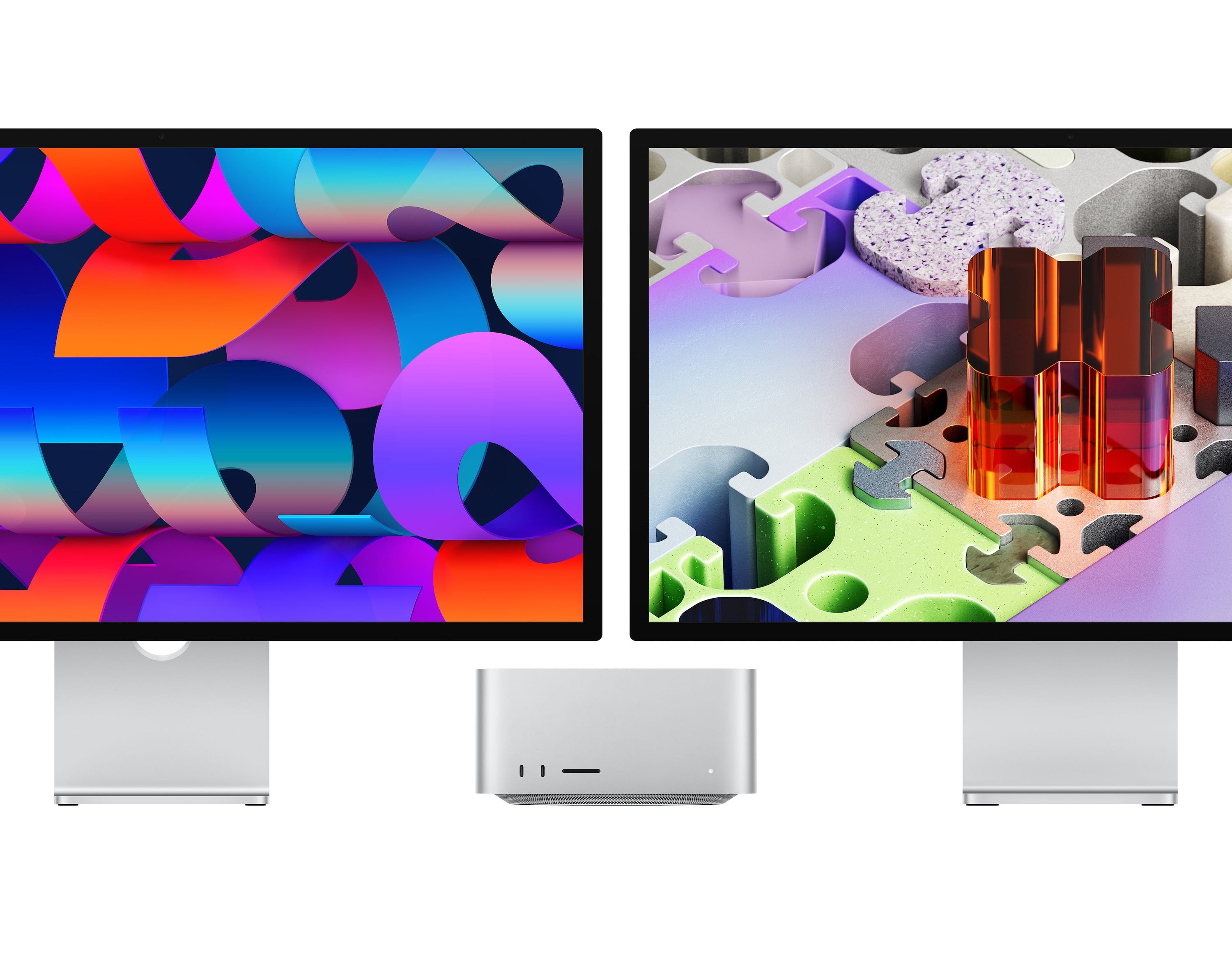

The compact 7.7-inch-square Mac Studio fits perfectly under most displays. And an advanced thermal system lets you fly through intensive tasks while keeping Mac Studio quiet, so it never interferes with your workflow.

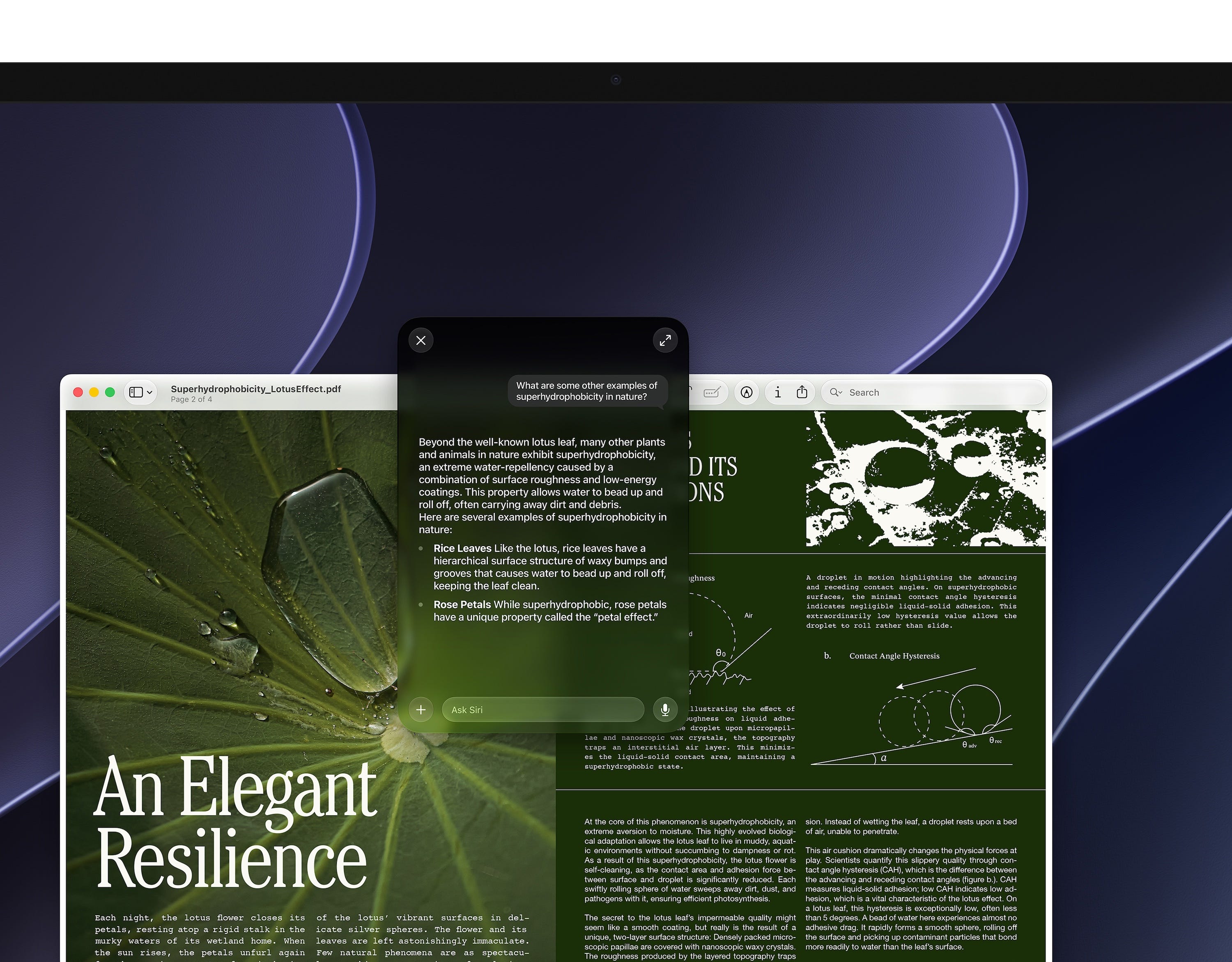

MacOS runs apps lightning fast with its advanced operating system. It features Siri AI, a capable assistant with personal context understanding and broad world knowledge, and Apple Intelligence seamlessly integrated into everyday apps and experiences. And with window tiling, Sidecar, and more, you can stay productive.

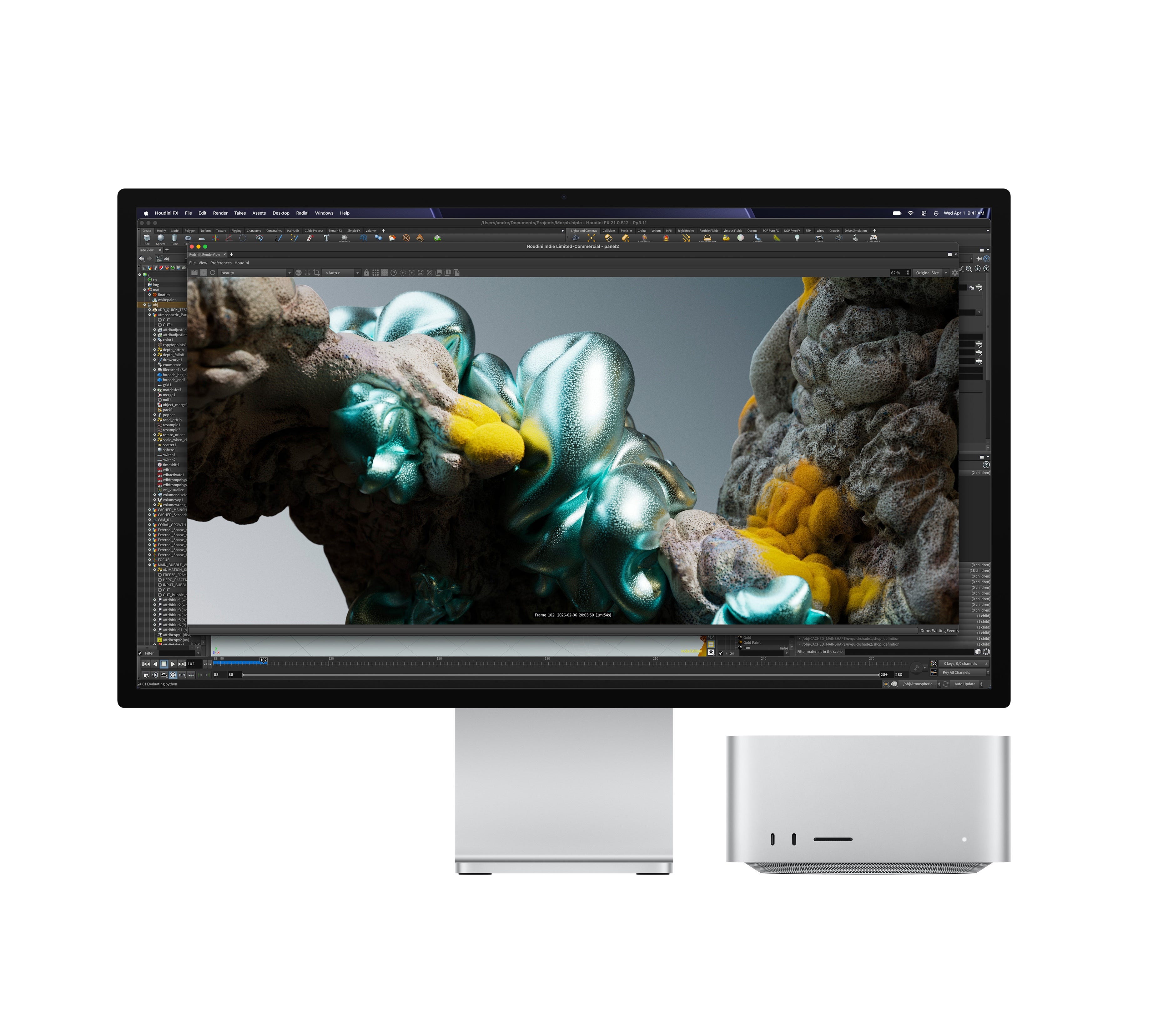

Mac works like magic with your other Apple devices. View and control what’s on your iPhone from your Mac with iPhone Mirroring. Or copy something on iPhone and paste it on Mac.
