Astera Projection Lens for PlutoFresnel

SKU: ASAF80PLSKS MFR: AF80-PLS-KIT *SET*
Earn VIP Reward Points

Key Features

  • Achieve precise light shaping with this Astera projection lens for PlutoFresnel.
  • Create stunning visual effects using included gobos; ideal for film & photography!
  • Adjustable 16-36 degree beam angle offers versatile lighting control for any shoot.
  • Durable metal & polymer build ensures reliable performance for studio or on-location.
  • E-size gobo compatibility lets you easily swap patterns for unique light designs.
  • Compact & portable design (4.38 lbs) makes this lens a must-have light modifier.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Astera Projection Lens Specifications

General

General

Jump to...
  • Compatibility

    PlutoFresnel Spotlight

  • Type

    Spot & Projection Equipment, Lenses

  • Gobo Type

    Sets

  • Beam Angle

    16 Degree - 36 Degree

Physical Details

Jump to...
  • Gobo Size

    E-Size

  • Color

    Black

  • Material

    Glass, metal and polymer

  • Dimensions

    4.92 x 9.6" (125 x 244mm)

  • Weight

    4.38 lbs (1.98kg)

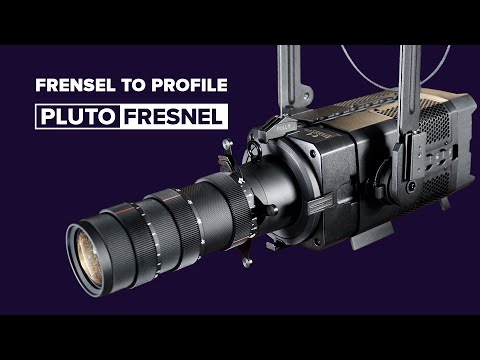

About Astera Projection Lens

Turn your PlutoFresnel into a battery-powered and highly portable profile fixture. This lens offers precision optics combined with 16 Degree - 36 Degree zoom, shutters and Gobos for ultra-precise lighting.

One body for two lenses
With the Projection Lens, PlutoFresnel can be turned into a profile lens within seconds. Simply unlock the Fresnel lens, slide it out and insert the Projection Lens.

16 Degree - 36 Degree Zoom
Integrated into the Projection Lens is a manual zoom for a 16 Degree to 36 Degree projection that is operated by rotating the zoom wheel.

Two Focus Wheels
To ensure a crystal-clear projection at any distance, the focus is set over 2 wheels: One wheel adjusts the projection distance from near and far, the other adjusts the focus.

Shutter Blades on two Planes
Cut off part of the beam with the 4 shutter blades.

E-Size Gobo
The included Gobo holder is designed for E-Size Gobos and enables crystal-clear projections. Glass and Metal Gobos can be bought from third-party dealers.

Rotatable Barrel
Rotate the lens barrel to adjust the projected beam.

Astera Projection Lens Features

  • Manual zoom for a 16 Degree to 36 Degree projection
  • Ensure a crystal-clear projection at any distance
  • Cut off part of the beam with the 4 shutter blades
  • The included Gobo holder is designed for E-Size Gobos, enables crystal-clear projections

Warranty Information

This product has a limited warranty of 3 months for parts and 24 months for labor.

Key Features

  • Achieve precise light shaping with this Astera projection lens for PlutoFresnel.
  • Create stunning visual effects using included gobos; ideal for film & photography!
  • Adjustable 16-36 degree beam angle offers versatile lighting control for any shoot.
  • Durable metal & polymer build ensures reliable performance for studio or on-location.
  • E-size gobo compatibility lets you easily swap patterns for unique light designs.
  • Compact & portable design (4.38 lbs) makes this lens a must-have light modifier.

What's in the box:

  • Astera Projection Lens
  • Lens Cap
  • 4x Gobos
  • Gobo Holder
  • Safety Wire
  • Astera 3 Month Limited Warranty
