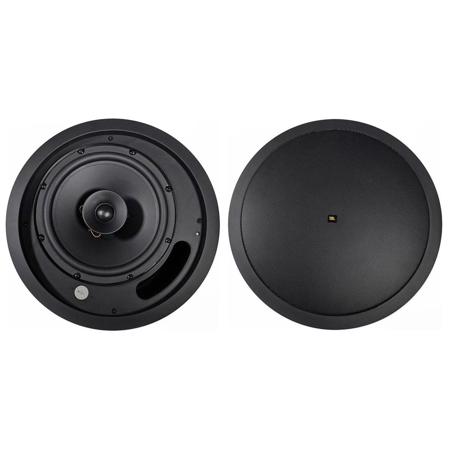

JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker - Black, Pair SKU#1936786
See all JBL items
$6 PRICE DROPUsed Condition: Open Box

Used JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker, Black, Pair

SKU: US1936786 MFR: CONTROL 18C/T-BK
Be the first to review this item
$177.00
$183.00
Save: $6 (3%)
Earn VIP Reward Points
See all Used options (1) from $177

What`s in the box:

  • Control 18C/T 2-Way 8 " Coaxial Ceiling Loudspeaker (Black)
  • C-Ring Support Backing Plates
  • 2x Tile Support Rails for 2' or 600mm Tile Spans
  • Cardboard Cutout Templates
  • Paint Shields
  • Removable Locking Multi-Pin Connectors
  • Grilles .

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JBL Control 18C/T Specifications

  • Finish

    Black

  • Frequency Range (-10 dB)

    58 Hz - 20 kHz

  • Frequency Response (+/-3 dB)

    80 Hz - 16 kHz

  • Power Capacity (at low-Z)

    180 Watts Continuous Program Power

  • Maxium Input Voltage

    31.8 V RMS (2hrs), 63.6 V peak

  • Nominal Sensitivity

    92 dB

  • Nominal Coverage Angle

    90 Degree conical coverage

  • Directivity Factor (Q)

    6

  • Directivity Index (DI)

    7.8 dB

  • Rated Maximum SPL

    112 dB @ 1 m (3.3') average, 118 dB peak

  • Nominal Impedance

    8 ohms (in direct/bypass 8 Ohm setting)

  • Transformer Taps

    60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only)

  • Recommended Protective High-Pass

    45 Hz high-pass (24 dB/oct) for 8ohm operation, 60 Hz for 60 W tap, 50 Hz for 30 W, 15 W & 7.5 W tap setting

  • Crossover Network

    12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

  • Low Frequency Driver

    200 mm (8") with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil

  • High Frequency Driver

    25 mm (1"), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide

  • Input Connector

    Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 Square mm)

  • Connector Wiring

    Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru

  • Strain Reliefs

    Strain relief for two cables or two flex conduits via coupled clamping mechanism

  • Materials

    ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan

  • Safety Agency

    UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems

  • Ceiling Cutout Size

    Circular cutout with 282 mm (11.1 in) diameter (cardboard cutout template included)

  • Ceiling Thickness Range

    Up to 38 mm (1.5") with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4") ceiling thicknesses

  • Safety Seismic Attachment

    One point, top surface

  • Dimensions (Diameter x Depth)

    12.1 x 10.8" (307 x 274mm)

  • Weight

    14.1 lb (6.4kg) (one speaker)

About JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker - Black, Pair SKU#1936786

Bring a superior audio experience to your space with the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker. This full-range, in-ceiling speaker is a product of JBL, a brand synonymous with high-quality audio equipment. It features a robust 200mm (8") high-tech cone driver and a 25mm soft-dome liquid-cooled tweeter, ensuring reliable and efficient sound delivery.

The speaker is housed in a vented, paintable baffle made from UV-resistant UL94-V0 and UL94-5HB materials. This stylish design not only enhances the aesthetic appeal of your space but also ensures the durability of the speaker. The pre-attached blind-mount backcan facilitates quick and easy installation, making it a convenient choice for both home and commercial audio systems.

Designed to deliver excellent sound quality, the Control 18C/T is perfect for a wide range of medium to high volume applications. Whether you're setting up a music cafe, a business music system, a retail store, a music/paging system, or an audio system in an airport, reception/waiting room, lounge, courtroom, convention center, hotel, or educational facility, this speaker is designed to meet your needs.

Experience the blend of stylish design and high-quality sound with the Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker.

JBL Control 18C/T 2-Way 8" Coaxial Ceiling Loudspeaker - Black, Pair SKU#1936786 Features

  • 200 mm (8") high output driver with polypropylene cone and butyl rubber surround
  • 25 mm (1") soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy installation
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation: 90 Watts at 8 Ohm nominal setting/60W multi-tap at 70V/100V
  • 58 Hz - 20 kHz bandwidth with 90 Degree coverage
  • High 92 dB sensitivity for high maximum SPL
