Used QNAP QNAP QSW-308-1C 11-Port Unmanaged Switch with 8x 1GbE, 10GbE SFP+/RJ45 Combo, 2x 10GbE SFP+ Ports and NBASE-T

SKU: US1982825 MFR: QSW-308-1C-US
$74.00
Earn VIP Reward Points

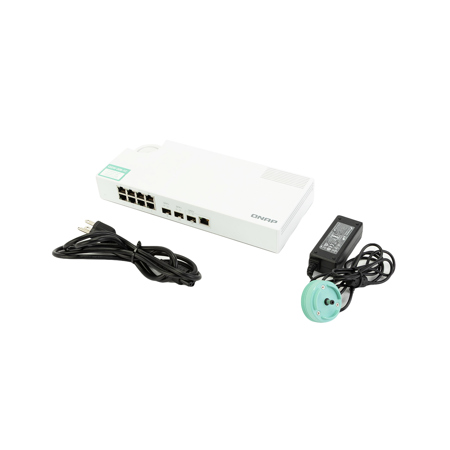

What`s in the box:

  • QNAP QSW-308-1C 8-Port Gigabit Unmanaged Switch with SFP+
  • Power Cord
  • Power Adapter
See more

Key Features

  • Experience lightning-fast data transfer with this QNAP 11-Port unmanaged switch, perfect for quick file sharing.
  • This unmanaged switch includes 8x 1GbE ports for standard connections and 2x 10GbE SFP+ ports for high speed.
  • Upgrade your network with 10GbE SFP+/RJ45 combo ports, ensuring compatibility with various devices easily.
  • Enjoy a silent operation with the fanless design, ideal for noise-sensitive environments needing network security.
  • With a 76Gbps switching capacity, this QNAP switch handles large data volumes efficiently and reliably.
  • This desktop form factor switch is easy to install and integrates seamlessly into your existing network setup.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

QNAP QSW-308-1C Specifications

  • Management Type

    Unmanaged

  • Number of Ports

    11

  • 10GbE SFP+

    2

  • 10GbE SFP+/RJ45 Combo Ports

    1

  • 1GbE (RJ45)

    8

  • Power Supply Description

    Adapter

  • Max. Power Consumption

    36W

  • Input Power Type

    AC

  • Input Voltage Range

    100-240VAC, 50/60 Hz

  • MAC Address Table

    16K

  • Total Non-Blocking Throughput

    38Gbps

  • Switching Capacity

    76Gbps

  • Fan

    Fanless

  • Fanless

    Yes

  • Supported Standards

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3an 10GBASE-T
    IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet

  • Form Factor

    Desktop

  • LED Indicators

    Per Port: Speed/Link/Activity
    Per System: Power/Status

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Relative Humidity

    5-95% Non-condensing

  • Certifications

    CE, FCC, VCCI, BSMI RCM, CCC

  • Electromagnetic Compliance

    CLASS B, UL62368

  • Jumbo Frames

    10k

  • Dimensions (H x W x D)

    1.67 x 11.41 x 5" (42.5 x 290 x 127mm)

  • Weight

    1.7 lbs (0.77kg)

About QNAP QNAP QSW-308-1C 11-Port Unmanaged Switch with 8x 1GbE, 10GbE SFP+/RJ45 Combo, 2x 10GbE SFP+ Ports and NBASE-T

The QSW-308-1C is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, providing three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. The QSW-308-1C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price and is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port also provides higher transmission speeds when used with existing cables. With its desktop size and silent operation, the QSW-308-1C perfectly blends into homes and offices while providing high performance, low latency and superb functionality.

The QSW-308-1C provides three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. QSW-308-1C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port offers higher transmission speeds when used with existing cables.

The unique fanless design with ventilated construction provides silent operations while maintaining high performance.

Simply connect the QSW-308-1C to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-308-1C provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling a hybrid high-speed network in homes and offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-308-1C is 76Gbps, guaranteeing the full potential of each port.

Faster speeds using existing cables with 10GBASE-T & NBASE-T
The QSW-308-1C is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port offers higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully support 10GbE high-speed networks, making them beneficial for IOPS-demanding applications such as virtualization, databases, high-resolution video editing, and sharing workflows.

Easily build a High-Speed Network with QNAP Network Expansion Cards and Network Adapters
QNAP provides a wide range of network devices to assist business and home users with upgrading their network infrastructure to meet growing bandwidth requirements. QNAP 10GbE Network Expansion Cards, Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters can all be used with the QSW-308-1C to create a complete high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

Cool and quiet operation
The QSW-308-1C features a fanless design for silent operations. The unique ventilated construction assists in cooling while maintaining high performance.

Desktop size for easy use in homes and offices
With a compact and modern design, the QSW-308-1C fits perfectly alongside other devices in modern digital homes and offices. Featuring a delicate white polished or textured surface design, the QSW-308-1C helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-308-1C.

QNAP QNAP QSW-308-1C 11-Port Unmanaged Switch with 8x 1GbE, 10GbE SFP+/RJ45 Combo, 2x 10GbE SFP+ Ports and NBASE-T Features

  • Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
  • Faster speeds using existing cables with 10GBASE-T & NBASE-T
  • Improve your productivity with a 10GbE-enabled QNAP NAS
  • Easily build a High-Speed Network with QNAP Network Expansion Cards and Network Adapters
  • Cool and quiet operation
  • Desktop size for easy use in homes and offices
