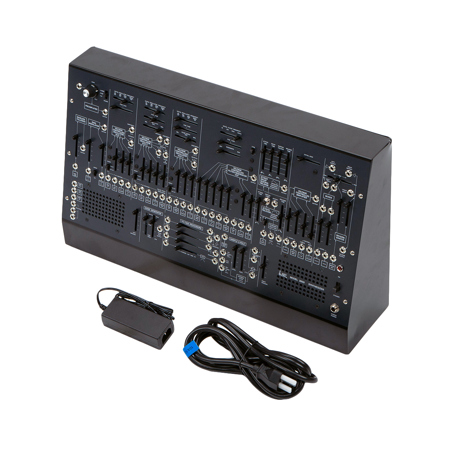

Used Korg ARP 2600 M Standard Edition Semi-Modular Analog Synthesizer with Road Case

SKU: US1944782 MFR: ARP2600M
Earn VIP Reward Points

What`s in the box:

  • Korg ARP 2600 M Standard Edition Semi-Modular Analog Synthesizer
  • AC Power Cord (KA320)
  • Patch Cables
  • ARP Stickers
  • Road Case (Black)
  • User Manual
  • Original Case

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Korg ARP 2600 M Specifications

Operating temperature range

Operating temperature range

Jump to...
  • Operating temperature range

    32 Degree F - 104 Degree F (0 - +40 Degree C) (nonfcondensing)

Maximum Polyphony

Jump to...
  • Maximum Polyphony

    2 voices for duo phonic; normally monophonic

VCO-1 (Voltage Controlled Oscillator 1)

Jump to...
  • Waveforms

    Sawtooth, square

  • Frequency range

    Approx. 0.03 Hz - 30 Hz (low freq. mode)
    Approx. 10 Hz - 10 kHz (audio mode)

  • Voltage controlled response

    1V/oct.

VCO-2 (Voltage Controlled Oscillator 2)

Jump to...
  • Waveforms

    Sawtooth, pulse (dynamic pulse), triangle, sine

  • Frequency range

    Approx. 0.03 Hz - 30 Hz (low freq. mode)
    Approx. 10 Hz - 10 kHz (audio mode)

  • Pulse width

    10% - 90%

  • Voltage controlled response

    1V/oct.

VCO-3 (Voltage Controlled Oscillator 3)

Jump to...
  • Waveforms

    Sawtooth, pulse (dynamic pulse)

  • Frequency range

    Approx. 0.03 Hz - 30 Hz (low freq. mode)
    Approx. 10 Hz - 10 kHz (audio mode)

  • Pulse width

    10% - 90%

  • Voltage controlled response

    1V/oct.

VCF (Voltage Controlled Filter)

Jump to...
  • Type

    Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.)

  • Frequency range

    Approx. 10 Hz - 10 kHz

  • Resonance

    1/2 - self oscillate

VCA (Voltage Controlled Amplifier)

Jump to...
  • Control voltage

    AR type (internally connected)
    ADSR type (internally connected)

Noise generator

Jump to...
  • Noise generator

    Noise spectrum types (white and pink)

Ring Modulator

Jump to...
  • Type

    Analog multiplier

  • Input signal (Internally connected)

    VCO-1 sawtooth wave, VCO-2 sine wave

Sample & Hold

Jump to...
  • Sampled signal

    Noise (internally connected)

Audio Output Jacks Front Panel

Jump to...
  • Connector

    Dia: 3.5mm monaural phone jack

  • Maximum output level

    +9 dBu @ 10 k Ohm load

  • Output impedance

    1.2 k Ohm

Side Panel

Jump to...
  • Connector

    Dia: 6.3mm stereo phone jack

  • Maximum output level

    +4 dBu @ 600 k Ohm load

  • Output Impedance

    1.2 k Ohm

Headphones Jack

Jump to...
  • Connector

    Dia: 6.3mm stereo phone jack

  • Maximum output level

    50 mW + 50 mW @ 33 Ohm load

  • Output impedance

    20 Ohm

External Audio Input

Jump to...
  • Connector

    Dia: 3.5mm monaural phone jack

  • Maximum input level

    +2dBu RANGE x10, GAIN knob Max

  • Input impedance

    100k Ohm

MIDI connector

Jump to...
  • MIDI connector

    In

USB port

Jump to...
  • USB port

    Type A, Type B

General

Jump to...
  • Power supply

    AC power supply terminal (KA320)

  • Power consumption

    13W

  • Dimensions (W x D x H)

    20.5 x 5 x 12.2" (520 x 129 x 311mm)

  • Weight

    13 lbs (6kg)

2 Accessories for Korg ARP 2600 M Standard Edition Semi-Modular Analog Synthesizer with Road Case

  • All Accessories (2)
  • Stands (1)
  • Keyboard Benches (1)

About Korg ARP 2600 M Standard Edition Semi-Modular Analog Synthesizer - SKU#1944782

The most iconic synth for the Modern musician
The genuine ARP 2600 in a more convenient size.

The ARP 2600 is arguably the most iconic and recognizable synthesizer of all time. Having been used in countless records, film scores, TV shows and game soundtracks since its appearance from the 70's through to today, the ARP 2600's sound remains an essential part of the music world.

The new ARP 2600 M delivers the sound admired around the world , in a more compact and portable format and including added features that make it the ideal incarnation of this historic synth.

A legend, reborn
The ARP 2600 M is around 60% the original size, making it lighter, more portable and easier to place and use in a studio.

Proudly Designed and Made in Japan
The ARP 2600 M is built in Japan with the same care and extraordinary quality, and uses the same analog components to accurately reproduce the sound and feel of the original. The Spring Reverb has been re-engineered and adapted to the new size body with the same lush effect.

With the intense focus on quality and a large amount of hand assembly, the ARP 2600 M is not a typical mass-produced instrument. Due to this boutique nature, manufacturing quantities each month will be inline with our commitment of delivering a truly prized investment.

A must-have in the studio
It is not by chance that the ARP 2600 has been so extremely popular to this day.

More than a synthesizer, the ARP 2600 M is a complete sound design studio. Even today, the ARP 2600 stands as a bridge between the individual elements of modular synthesis and the immediacy of a production / performance instrument.

Included are an ample supply of oscillators, envelopes, a filter and amplifier - all of the building blocks of analog synthesis. But the ARP 2600 M goes even further, with a spring reverb tank and a pair of built-in monitor speakers. Also present is much of the versatility of a vintage modular system, including a ring modulation, lag and voltage processors, an envelope follower, audio preamp, a clock-able switch, noise source, a sample-and-hold module, signal inverters, an auxiliary mixer, and even a set of parallel-wired/multi jacks.

Free bundle of music software
The ARP 2600 M comes with a diverse variety of music software from Izotope including "Ozone Elements" which lets you not only create songs but also master them using AI, "Skoove" which will help you improve your keyboard playing skills, "Reason Lite" DAW software, as well as software synths from KORG and other brands.

In other words, the moment you get your hands on this synthesizer you'll have a variety of tools to help you take your music to the next level.

Korg ARP 2600 M Standard Edition Semi-Modular Analog Synthesizer - SKU#1944782 Features

  • Plug and play: Connect any class compliant MIDI controller such as a KORG microKeys, nanokeys or SQ-64 to one of the ARP 2600 M's USB ports (USB-A and USB-B) and automatically get full control of your instrument!
  • Resized: The new size makes it easier to visualize your patch and also allows you to use shorter patch cables
  • Two types of filters from two versions of the original ARP 2600 (4012 type, 4072 type DIN MIDI IN added)
  • Pitch-bend, Modulation and Portamento ON/OFF can be controlled through MIDI CC messages (USB/DIN MIDI)
  • Normalized voltage: The threshold of the trigger signal required to activate the ADSR through the S/H GATE JACK has become 5V, making it much easier to use in combination with other gear such as volcas or Eurorack modules
  • Improved Attack and Release time ratios
  • L/R Stereo Output Jack (instead of XLR)
  • Speakers turn automatically off when using headphones
  • Improved, smoother sliders

Warranty Information

This used item has a FREE 90-day warranty. See details.

What's in the box:

  • Korg ARP 2600 M Standard Edition Semi-Modular Analog Synthesizer
  • AC Power Cord (KA320)
  • Patch Cables
  • ARP Stickers
  • Road Case (Black)
  • User Manual
  • Original Case
