Blackmagic Design ATEM Camera Converter, 28 miles Transmission Distance, 2 Tally LEDs

SKU: BMATEMCC MFR: SWRCONV
Earn VIP Reward Points

Key Features

  • Achieve reliable signal transmission up to 28 miles with this camera converter.
  • Enjoy low latency video with 10-bit SD/HD switchable SDI & HDMI inputs/outputs.
  • Use balanced 1/4" TRS connectors for professional line or microphone level audio.
  • Easily configure settings and update firmware via the USB 2.0 high speed interface.
  • Ensure image quality with 4:2:2 YUV color space and 10-bit color precision.
  • This affordable price video transmitter supports Windows & Mac OS X operating systems.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?SERGEY G : Necessary for sending signal to our video village during our webcast.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design ATEM Camera Converter Specifications

  • Video Input

    SDI Video Input:1 x 10 bit SD/HD switchable
    SDI Video Output: 1 x 10 bit SD/HD switchable
    DMI Video Input: 1 x HDMI 1.3 type A connector
    HDMI Video Output: 1 x HDMI 1.3 type A connector
    Optical Fiber Video Input: 1 x 10 bit SD/HD switchable via LC connector
    Optical Fiber Video Output: 1 x 10 bit SD/HD switchable via LC connector

  • Analog Audio

    2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets)

  • Computer Interface

    1 x USB 2.0 high speed interface for configuration and firmware updates

  • SDI Compliance

    SMPTE 259M, SMPTE 292M

  • Video Sampling

    4:2:2

  • Audio Sampling

    Television standard sample rate of 48Khz, 24 bit A/D conversion

  • Color Precision

    10 bit

  • Color Space

    4:2:2 YUV

  • Multiple Rate Support

    SDI and HDMI switches between 270Mb/s SD-SDI and 1.5Gb/s HD-SDI

  • Firmware Upgrade

    Firmware built into software driver. Loaded at system startup or via updater software

  • Power Supply

    12V power supply included with international socket adaptors for all countries

  • Operating Systems Supported

    Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X

  • UPC Code

    9338716001310

3 Accessories for Blackmagic Design ATEM Camera Converter, 28 miles Transmission Distance, 2 Tally LEDs

  • All Accessories (3)
  • Power Supply & Accessories (3)

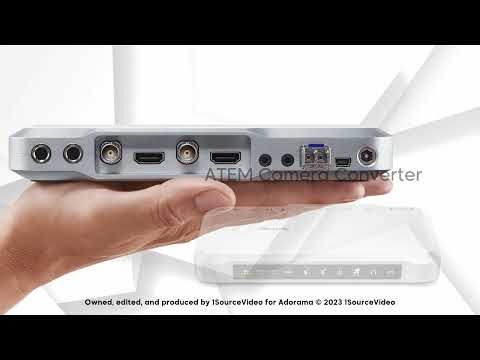

About Blackmagic Design ATEM Camera Converter

Make your camera setup more versatile and efficient with the Blackmagic Design ATEM Camera Converter. This innovative device extends the reach of your SDI or HDMI cameras up to an impressive 28 miles (45km) via a reliable optical fiber link. Simply connect your camera to the SDI/HDMI inputs to convert videos into optical signals, providing you with greater flexibility in camera placement.

The ATEM Camera Converter is not just about distance; it's also about control. The SDI/HDMI outputs can be switched between return program and camera input for monitoring, giving you the ability to monitor your feed effectively. The converter also features two tally LEDs, which illuminate using an open standard tally packet in the SDI output, providing a visual cue for the status of your transmission.

Communication is key in any production, and the ATEM Camera Converter excels in this area. The featured Talkback function allows seamless coordination between the switcher operator and camera operator via PC headsets or iPhone-compatible headphones. This function embeds microphone audio into channels 15 and 16 of the camera optical fiber video output, ensuring clear and efficient communication.

Designed with portability in mind, the ATEM Camera Converter features an integrated belt clip and can be mounted onto a tripod with the help of a camera mount. Its compact, durable design, crafted from aircraft-grade aluminum, ensures it can withstand the rigors of any shooting environment.

The ATEM Camera Converter also offers user-friendly controls with a built-in button pad for power, microphone level, talkback, and video and battery indicators. Firmware updates are a breeze with the USB port, ensuring your converter stays up-to-date with the latest features and improvements.

Whether you're filming concerts, sporting events, lectures, religious services, or conducting surveillance, the Blackmagic Design ATEM Camera Converter is a high-quality, user-friendly solution for extending your camera's transmission distance and enhancing your production capabilities.

Blackmagic Design ATEM Camera Converter Features

  • Enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via optical fiber link
  • You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals
  • Optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring
  • SDI/HDMI outputs can be switched between return program and camera input for monitoring
  • Can be used at remote locations when the cameras are placed at far-off locations
  • Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones
  • Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones by embedding microphone audio into channels 15 and 16 of the camera optical fiber video output
  • Can be connected to any power source or a car battery using the 12V power connection
  • Illuminates the 2 tally LEDs using open standard tally packet in the SDI output by connecting the switcher's program output to the ATEM Camera Converter via optical outputs
  • You can select the camera number using the USB software or by camera number button on the keypad
  • You can view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs
  • Features an integrated belt clip
  • Can be attached to the belt for portability
  • Can be mounted onto a tripod with the help of a camera mount
  • Features microphone inputs for audio capability
  • Made of aircraft-grade aluminum
  • Can withstand bumps and shocks without breaking
  • Built-in button pad allows you to control power, microphone level, talkback and video and battery indicators
  • You can update converters firmware via a USB port
  • Can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve reliable signal transmission up to 28 miles with this camera converter.
  • Enjoy low latency video with 10-bit SD/HD switchable SDI & HDMI inputs/outputs.
  • Use balanced 1/4" TRS connectors for professional line or microphone level audio.
  • Easily configure settings and update firmware via the USB 2.0 high speed interface.
  • Ensure image quality with 4:2:2 YUV color space and 10-bit color precision.
  • This affordable price video transmitter supports Windows & Mac OS X operating systems.

What's in the box:

  • Blackmagic Design ATEM Camera Converter
  • Converter Utility
  • Blackmagic Design 1 Year Limited Warranty
