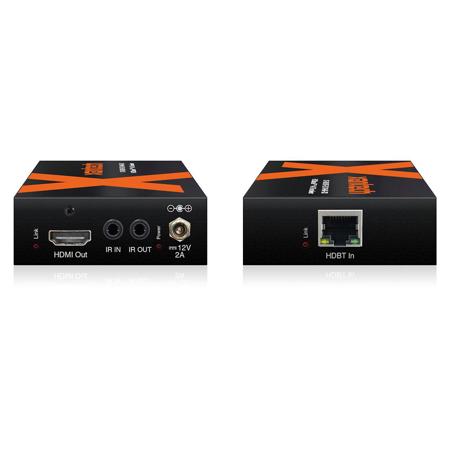

Xantech HDBaseT 4K Extender Set with Transmitter and Receiver, 70m (4K Up to 40m)

SKU: XAHDB704KKIT MFR: XT-HDBT-EX70-4K-KIT
Earn VIP Reward Points

Key Features

  • Extend your 4K HDMI signals up to 40m with this reliable HDBaseT extender kit.
  • Enjoy seamless connectivity with this HDMI extender, perfect for home theaters.
  • Control your devices remotely using the integrated IR pass-through feature of this kit.
  • This HDBaseT transmitter and receiver set supports crystal-clear 4K video quality.
  • Simplify your setup with this easy-to-install HDMI over HDBaseT extender solution.
  • Ensure stable signal transmission up to 70m for 1080p, using this extender kit.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Xantech HDBaseT 4K Extender Set Specifications

Transmitter

Transmitter

Jump to...
  • Video Input Connectors

    1x HDMI Type A, 19-pin female

  • Video Output Connectors

    1x HDBaseT RJ45 connector

  • IR Input Ports

    1x 12V 3.5mm stereo jack

  • IR Output Ports

    1x 12V 3.5mm mono jack

Receiver

Jump to...
  • Video Input Connectors

    1x HDBaseT RJ45 connector

  • Video Output Connectors

    1x HDMI Type A, 19-pin female

  • IR Input Ports

    1x 12V 3.5mm stereo jack

  • IR Output Ports

    1x 12V 3.5mm mono jack

General

Jump to...
  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Power Supply

    12V / 2A DC, screw type connector

  • Power Consumption

    9.5W

  • Dimensions (WxDxH)

    Transmitter & Receiver:
    Without Connections: 105 x 75 x 26mm (4.13 x 2.95 x 1.02")
    With Connections: 110 x 75 x 26mm (4.33 x 2.95 x 1.02")

  • Weight

    0.25kg (0.55 lbs)

  • UPC Code

    042777796960

About Xantech HDBaseT 4K Extender Set

The XT-HDBT-EX70-4K-KIT is a 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR and PoH (PoE) up to lengths of 40m at 4K (70m at 1080p) over a single CAT cable. Our EX-HDBT-EX70-4K HDBaseT extender kit offers market leading features and outstanding value. This product delivers HDMI, Bi-directional IR and Bi-directional PoH up to lengths of 70m.

HDBaseT
HDBaseT transmits uncompressed full HD digital video, audio, 100 BaseT Ethernet, Power-over-HDBaseT (PoH) and IP / RS-232 signals through a single CAT 6 cable over distances of up to 100 meters.

HDCP 2.2
HDCP2.2 is the next generation of copy protection required to allow the playback of the latest 4K source media.

Power over HDBaseT (POH)
Xantech extenders and matrices feature PoH. This feature allows you to power the remote HDBaseT receiver/s via the CAT cable, removing the need for a power supply.

4K
A 4K display has four times the number of pixels than your current Full HD 1080p display so the clarity of the image is much more superior and detailed.

Xantech HDBaseT 4K Extender Set Features

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080P up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 at 30Hz 4:4:4, 4096 x 2160 at 24Hz 4:4:4 and 4K at 60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports Bi-directional IR from input and output locations
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
  • Supports bi-directional PoH (Power over HDBaseT) to power extender from either matrix, transmitter or receiver end
  • HDCP 2.2 Compliant

Key Features

  • Extend your 4K HDMI signals up to 40m with this reliable HDBaseT extender kit.
  • Enjoy seamless connectivity with this HDMI extender, perfect for home theaters.
  • Control your devices remotely using the integrated IR pass-through feature of this kit.
  • This HDBaseT transmitter and receiver set supports crystal-clear 4K video quality.
  • Simplify your setup with this easy-to-install HDMI over HDBaseT extender solution.
  • Ensure stable signal transmission up to 70m for 1080p, using this extender kit.

What's in the box:

  • Xantech XT-HDBT-EX70-4K-TX Transmitter
  • XT-HDBT-EX70-4K-RX Receiver
  • 12V / 2A DC Power Supply
  • 2x Mounting Kit
  • Quick Reference Guide
  • Xantech 2 Year Warranty
