ARRI SkyPanel X23 Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    3

  • Photometrics

    5600K:
    1543fc / 16,602Lux at 3.3' (1m)
    171fc / 1839Lux at 9.8' (3m)
    43fc / 462Lux at 19.6' (6m)
    15fc / 161Lux at 32.8' (10m)
    3200K:
    1458fc / 15,688Lux at 3.3' (1m)
    162fc / 1743Lux at 9.8' (3m)
    40fc / 430Lux at 19.6' (6m)
    15fc / 161Lux at 32.8' (10m)

  • Color Accuracy Standard

    CRI 99, TLCI 93

  • Color Temperature

    RGBACL

  • Color Temperature Range

    1500-20000K

  • Display

    Yes

  • Beam Angle

    120 Degree Unmodified
    106 Degree with Included Diffuser

  • Built-In Flash

    No

  • Cooling System

    No

  • Dimming

    Built-In Dimmer (Continuous)
    0 to 100%

  • Water Resistance/IP Rating

    Dust/Water-Resistant (IP66)

Connectivity

Jump to...
  • Remote Control Type

    Art-Net
    Bluetooth 5.0
    Wireless CRMX
    Wireless DMX (G3 / G4 / G4S / G5)

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: ARRI LiCo

Battery

Jump to...
  • Battery Connection

    XLR

  • Battery

    Lithium ion

  • Power Source

    AC/DC

  • Power Consumption

    800W

  • AC Input Power

    100 to 240 VAC, 50 / 60Hz

  • DC Input Power

    48 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 1.1" (28mm) Unthreaded Hole (Via Yoke Mount) Proprietary

  • Umbrella Mount

    No

  • Accessory Mount

    Proprietary

Physical Details

Jump to...
  • Panel Size

    29 x 13"

  • Dimensions

    29.1 x 13.3 x 6.1" (73.8 x 33.9 x 15.4cm) (Fixture)

  • Weight

    Fixture: 33.1 lbs (15kg)
    Overall kit: 39.7 lbs (18kg)

  • UPC Code

    192223238688

About ARRI SkyPanel X23

A revolutionary addition to professional lighting solutions, the SkyPanel X23 800W RGBACL Modular LED Light Panel is designed to redefine the standards of color science, beam quality, and lux output. This versatile lighting system is equipped with native soft and hard light technology, capable of delivering up to 4,800 lux at a distance of 10 meters (32.8 ft). Each panel features eight pixels, enabling dynamic lighting effects and a color temperature range of 1,500K to 20,000K.

The SkyPanel X23's full-spectrum RGBACL color engine, coupled with wireless control and advanced networking capabilities, offers unparalleled control over your lighting setup. Its integrated power supply ensures reliable performance, while the IP66 rating certifies it as an all-weather lighting solution, resilient against rain, storms, and cold water pressure washers.

The SkyPanel X23 is not just a light panel, but a modular lighting experience. Its multi-unit array and modularity allow for easy upgrades and adaptations to your lighting setup. The quick-lock system and tool-less frames ensure a simplified workflow for quick and easy setup.

Control options for the SkyPanel X23 are diverse, including the robust ALL-WEATHER Control Panel, ARRI's new LiCo App for Bluetooth control, and LumenRadio's wireless integration. This lighting solution is designed to cater to the needs of gaffers, DPs, programmers, lighting technicians, and lighting designers alike, providing a flexible solution for a wide range of applications.

The SkyPanel X23 also paves the way for digital innovations in lighting. Its digital twin feature opens up new possibilities for virtual production lighting. The ARRI ALEXA Modes ensure exceptional color quality, while the ARRI LiCo App allows for easy management of settings, effects, and more.

Whether you're lighting a close-to-talent scene or need a long throw fixture with high-performance optics, the SkyPanel X23 offers the perfect balance of soft and hard light. Its high lumen output, flicker-free low-end dimming, and unique pixel looks make it a reliable choice for any filming or photography project. Experience the future of professional lighting with the SkyPanel X23 800W RGBACL Modular LED Light Panel.

ARRI SkyPanel X23 Features

  • SkyPanel X21 800W RGBACL Modular LED Light Panel
  • LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
  • IP66 all-weather professional lighting solution
  • Excelling in color rendition, dimming, and beam quality
  • Dynamic CCT range of 1,500 K - 20,000 K
  • RGBACL full-spectrum color engine
  • 8 pixels for X21
  • Integrated PSU and built-in wireless control

Warranty Information

This product has a limited warranty of 36 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Features native soft and hard light technology with up to 4,800 lux output at 10 meters
  • Full-spectrum RGBACL color engine with a dynamic color temperature range of 1,500K to 20,000K
  • IP66 certified all-weather lighting solution, resilient against harsh weather conditions
  • Modular design for easy setup and upgrade, featuring tool-less frames with quick-lock system

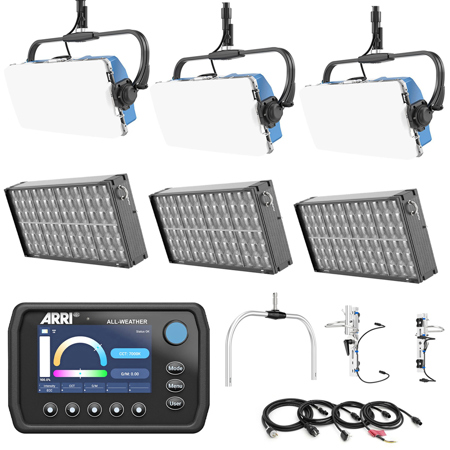

What's in the box:

  • 3x ARRI SkyPanel X 800W RGBACL Modular LED Light Panel
  • 3x X21 Dome
  • AC Power Supply (Integrated)
  • ARRI 3 Year Limited Warranty
  • Bundle Includes:
  • 3x Hyper Optic Multi-Lens Attachment
  • All-Weather Control Panel
  • Yoke with Spigot
  • Modular Frame
  • 9.8' powerCON TRUE1 Top Power Cable with Bare Ends
