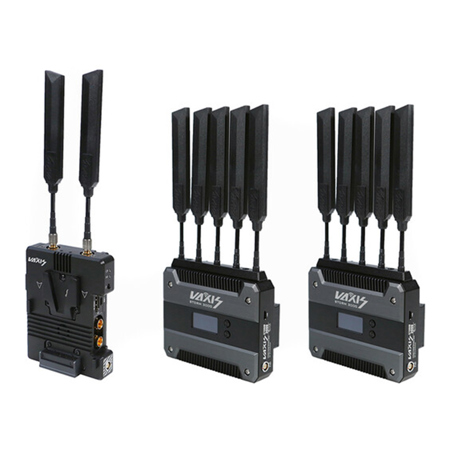

Vaxis Storm 3000DV Wireless Kit with V-Mount Plates

SKU: LA19300DVTR1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vaxis Storm 3000DV Specifications

Transmitter: Display

Transmitter: Display

Jump to...
  • Panel Type

    LCD

  • Touchscreen

    No

Transmitter: Inputs / Outputs

Jump to...
  • Antenna I/O

    2x RP-SMA Female

  • Video I/O

    1x HDMI (Unspecified Signal) Input
    1x BNC (HD-SDI) Input
    1x BNC (HD-SDI) Loop Output

  • Audio I/O

    No

  • Power I/O

    1x LEMO 2-Pin Input

Transmitter: Wireless

Jump to...
  • Wireless Range

    3000' (914.4m) (Line-of-Sight)

  • No. of Channels

    20 (40 MHz)

  • Channel Bandwidth

    40 MHz

  • Frequency Range

    US: 5.1 to 5.9 GHz

  • Latency

    < 1 ms

  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    Yes: Android & iOS

  • Cellular Support

    No

Transmitter: Format Support

Jump to...
  • Video Format

    HDMI/SDI:
    UHD 4K, 1080p

  • Wireless Video Compression

    Uncompressed

  • Timecode Support

    Yes

Transmitter: Power

Jump to...
  • Input Power

    6 to 36 VDC

  • Battery Type

    2x V-Mount

Transmitter: Mounting

Jump to...
  • Mounting

    1x 1/4"-20 Female

Transmitter: Environmental

Jump to...
  • Environmental Protection

    No

  • Certifications

    No

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Transmitter: Battery

Jump to...
  • Battery Info

    Optional, Not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Transmitter: Physical

Jump to...
  • Dimensions (L x W x H)

    4.6 x 3.5 x 1" (118 x 90 x 26mm)

  • Weight

    10.4 oz (296g)

Receiver

Jump to...
  • Outdoor max distance

    1000m

  • Delay

    0 [<1 ms]

  • Frequency

    5G ISM 40MHz

  • Video format

    1080p24/23.98, 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i50, 1080psf30/29.97, 1080psf24/25/23.98, 720p60/59.94, 720p50, 576p60

  • Work temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Video interface

    2x SDI output (BNC female)/1x HDMI output

  • Antenna

    RP-SMA(x5) with 5bBi antenna

  • Power Connector

    2-pin Lemo (input), Integrated V-Lock or Gold Mount power input 6-36V

  • Voltage

    6-36V

  • Battery Info

    Optional, Not included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    With V-Lock Mount: 3.7 x 4.92 x 1.57" (94 x 125 x 40mm)

  • Weight

    14.28 oz (405g)

  • UPC Code

    6972119121904

About Vaxis Storm 3000DV

Experience the superior functionality of the Storm 3000 DV SDI/HDMI Wireless Transmitter and Receiver Kit, V-Mount. This state-of-the-art device boasts an exquisite side screen for an intuitive info display. The Vaxis 3000DV is meticulously designed, featuring a new side panel display screen that enhances accessibility and visibility of the menu and functions.

The Storm 3000 DV stands out in the Storm series for its compactness and speed. It's ingeniously integrated with advanced technology to compress its size, making it the thinnest and lightest among all the Storm series products and comparable devices in the market.

The device's unique OS Mode is a game-changer, effectively solving the playback delay problem of Arri Alexa Mini. However, the Storm 3000 DV remains versatile, with the ability to switch back to Normal Mode to accommodate other camera types.

This kit is compatible with all Vaxis Storm series receivers, including the STORM 3000 RX, STORM 2000 RX, STORM 1000S RX, STORM 800 RX, STORM 058 RX, and STORM 5000 RX. This compatibility ensures seamless integration and optimal performance across the Storm series.

In summary, the Storm 3000 DV SDI/HDMI Wireless Transmitter and Receiver Kit, V-Mount, offers a blend of innovative design, compactness, speed, and compatibility, making it a top choice for professionals in the field of photography and videography.

Vaxis Storm 3000DV Features

  • Advanced design with exquisite side screen for intuitive info display
  • Compact and lightweight, the thinnest and lightest in the Storm series
  • Unique OS Mode to solve playback delay issues with Arri Alexa Mini
  • Switchable to Normal Mode for compatibility with other cameras
  • Seamless integration with all Vaxis Storm series receivers
  • Ideal for professionals in photography and videography for optimal performance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience reliable connection with the Vaxis Storm 3000, transmitting up to 3000ft.
  • Enjoy low latency (<1ms) wireless video transmission for real-time monitoring on set.
  • The dual V-Mount plates offer flexible power options for both transmitter and receiver.
  • Transmit high-resolution video via SDI/HDMI, supporting up to 1080p60 for clear visuals.
  • This wireless video transmitter supports multiple video formats, ensuring compatibility.
  • The affordable price of the Vaxis Storm 3000 makes pro wireless video accessible.

What's in the box:

  • Vaxis Storm 3000' DV Wireless Video Transmitter with Dual V-Mount Plate
  • Storm 3000 Receiver (V-Mount)
  • 2x Blade Antenna (5 dBi)
  • 2x Short Antenna (2 dBi)
  • SDI Cable
  • Power Cable
  • 5x Blade Antenna
  • Noga Arm
  • Flight Case
  • Vaxis 2 Year Limited Warranty
