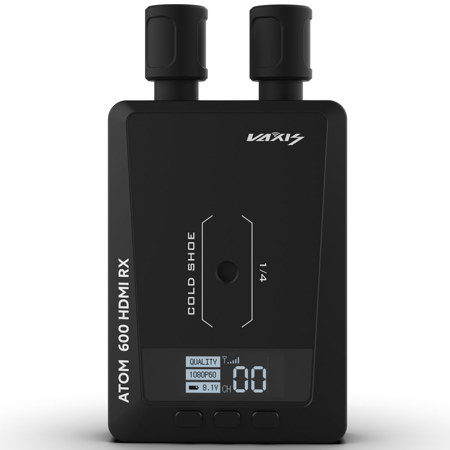

Vaxis Atom 600 HDMI Wireless Video Receiver, 150m Range

SKU: LA21600R01

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vaxis Atom 600 Specifications

Display

Display

Jump to...
  • Panel Type

    OLED

  • Touchscreen

    No

Inputs / Outputs

Jump to...
  • Antenna I/O

    2x F-Type

  • Video I/O

    2x HDMI Output

  • Embedded Audio

    HDMI/Wireless

  • Audio I/O

    No

  • Power I/O

    1x USB-C (5 VDC) Input

Wireless

Jump to...
  • Wireless Range

    600' (182.9m) (Line-of-Sight)

  • No. of Channels

    13

  • Frequency Range

    US: 5.8 GHz
    US: 2.4 GHz

  • Latency

    < 80 ms

  • RF Power

    17 dBm

  • RF Sensitivity

    -80 dBm

  • Wi-Fi

    Yes

  • Bluetooth

    No

  • Mobile App Compatible

    Yes

  • Cellular Support

    No

Format Support

Jump to...
  • Video Format

    HDMI
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50

  • Wireless Video Compression

    Compressed

  • Timecode Support

    No

  • DC Input Power

    5 VDC

  • Battery Type

    1x L-Series

  • Power Consumption

    3 W

Battery

Jump to...
  • Battery Info

    Optional, Not included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F970

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (L x W x H)

    3.6 x 2.5 x 1" (91 x 63.5 x 26mm)

  • Weight

    5.3 oz (150g)

  • UPC Code

    6972119126527

About Vaxis Atom 600

While investing in the Atom 600 HDMI Wireless Video Receiver, you'll unlock seamless video transmission capabilities with an impressive range of up to 150 meters. This advanced device is engineered for ultra-low latency, delivering video content with a minimal delay of just 0.08 seconds, ensuring smooth and timely delivery. The Atom 600 is equipped with a dual Cavs antenna, compatible with both 2.4GHz and 5.8GHz dual-frequency bands, which enhances signal strength and accelerates transfer rates. This cutting-edge technology guarantees efficient and reliable video transmission, even over extended distances.

The Atom 600 HDMI Wireless Video Receiver features multiple connectivity options, including dual HDMI ports that support HDMI loop out, offering versatile and flexible connections for various setups. It also provides dual power supply options, utilizing an NP-F970 Battery and a USB Type-C port, to ensure continuous operation without interruptions. Seamlessly integrating into the Atom ecosystem, the Atom 600 can trigger the synchronous recording function when paired with the Atom A5, streamlining operations and boosting productivity.

Additionally, the Atom 600 supports APP monitoring, enabling you to monitor video content on mobile devices such as smartphones, iPads, or monitors simultaneously. This feature transforms your mobile device into an instant monitor, providing unparalleled flexibility and convenience. Furthermore, this wireless video receiver can connect one camera to five monitor screens at once, allowing one transmitter to link with two receivers and three mobile devices simultaneously, making it an ideal solution for complex multi-device setups.

Compact and portable, the Atom 600 measures just 4 inches, making it easy to transport and set up wherever needed. Its 3.5W fanless design ensures quiet operation, allowing you to concentrate on your video content without any distracting noise. In summary, the Atom 600 HDMI Wireless Video Receiver is a robust, versatile, and efficient device designed to elevate your video transmission experience, making it an essential tool for professionals seeking high-performance wireless video solutions.

Vaxis Atom 600 Features

  • Up to 150m for reliable long-distance coverage
  • Achieves a latency of just 0.08 seconds, ensuring real-time video transmission
  • Utilizes dual-frequency (2.4GHz & 5.8GHz) antennas for stronger signals and faster data transfer rates
  • Includes dual HDMI ports with HDMI loop out capability, offering versatile connectivity options

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable transmission with the Vaxis Atom 600 HDMI wireless receiver.
  • Enjoy low latency (<80ms) for real-time monitoring with this wireless video receiver.
  • Achieve long range wireless freedom up to 600ft (182.9m) with clear line-of-sight.
  • High resolution HDMI output ensures top-quality video for your broadcast equipment.
  • Secure connection via 5.8/2.4 GHz bands offers stable wireless video transmission.
  • Easy to use: Compact & lightweight design integrates seamlessly with NP-F batteries.

What's in the box:

  • Vaxis Atom 600 HDMI Wireless Video Receiver
  • User Manual
  • (Battery Not Included)
  • Vaxis 1 Year Limited Warranty (Extended 1 Year Warranty with Registration)
