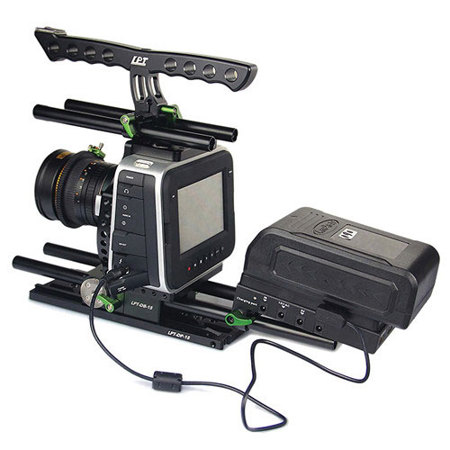

Lanparte Blackmagic Cinema Camera Basic Kit, Includes Camera Cage, VB-150 Sony V-Mount Li-Ion Battery, VBP-01 Sony V-Mount Battery Pinch with HDMI Splitter

VBP-01 Sony V-Mount Battery Pinch with HDMI Splitter - 3x Yellow-Tip Camera DC Power Spring Cable - Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm) - AC Power Adapter (19 VDC, 3.42A)

1/4"-20 and 3/8"-16

1/4"-20 and 3/8"-16

2x 11.8" / 29.97cm
7.9" / 20.07cm

Lithium-Ion V-mount battery

14.8 VDC

10.2 Ah, 150 Wh

CE, RoHS

1 x Standard D-tap
1 x 5-pin connector

1 x Power display button

V-mount

1 x DC barrel, 5 VDC signal switch power output
1 x DC barrel, 7.4 VDC DSLR power output (requires AC adapter)
2 x DC barrel, 12 VDC monitor power output
1 x DC barrel, 15 VDC V-mount battery voltage output
1 x D-Tap output
1 x DC barrel, 16.8 VDC charging input
1 x USB, 5 VDC power output
1 x HDMI, splitter input
2 x HDMI, splitter output

5, 7.4, 12, 15 VDC

2.5 A

1 sec

Over-voltage (0.5 VDC), under-voltage, over-current

Operating Temperature: -4 to 113 deg. F / -20 to 45 deg. C
Temperature Rise: =113 deg. F / 45 deg. C, full load
Relative Temperature: <90%

Relative: =0.01 sec, +/-1%

Precision: =5 MOhms

Maintains double maximum current for 1 minute

Camera Cage: 4.80 x 11.03 x 9.64" / 12.19 x 28.02 x 24.49cm (excluding rods)
Battery: 6.4 x 4.2 x 2.2" / 16.26 x 10.67 x 5.59cm
Battery Pinch: 5.6 x 4.0 x 2.9" / 14.22 x 10.16 x 7.37cm

Battery: 2.4lbs / 1.09kg
Battery Pinch: 1.8lbs / 0.82kg
