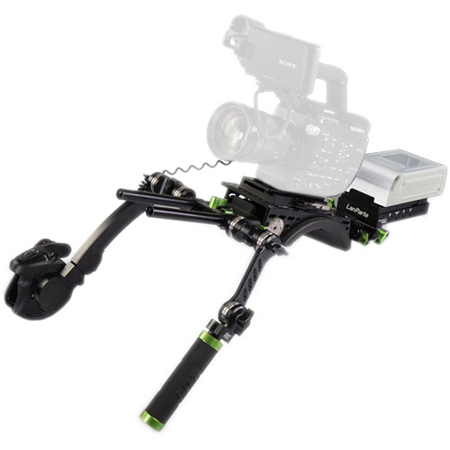

Lanparte Basic Handle Kit for Sony FS5 Camera, Includes FS5A-01 FS5 Extension Arm, TCP-02 Top Cheese Plate, MA-01 Magic-Arm, MEA-01 FS5 Monitor Extension Arm and VMS-01 V2 V-Mount Shoulder Support

SKU: LAFS5K01

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lanparte Basic Handle Kit Specifications

  • Compatibility

    Sony FS5 Camera

  • Extension Arm: Material of Construction

    Aluminum

  • Top Cheese Plate: Material

    Aluminum

  • Magic Arm: Material

    Rugged, anodized aluminum alloy

  • Magic Arm: Threads

    1/4"-20
    3/8"-16

  • EVF Extension Arm: Material

    Aluminum

  • EVF Extension Arm: Sliding Range

    4" (10.16cm)

  • Battery Pinch: Connectors

    Inputs:
    1x DC barrel charging
    1x HDMI splitter

    Outputs:
    1x 5 VDC barrel, signal switch power
    1x 7.4 VDC barrel, DSLR power (requires adapter)
    2x 12 VDC barrel, monitor power
    1x 15 VDC barrel, V-Mount battery voltage
    1x D-Tap
    1x USB 5 VDC power
    2x HDMI splitter

  • Battery Pinch: DC Output Voltage

    5, 7.4, 12, 15 VDC

  • Power Cable: Length

    39.5" (100.3cm)

  • Aluminum Rod: Material

    Aluminum

  • Aluminum Rod: Rod Diameter

    15mm (0.59")

  • Aluminum Rod: Thread Size

    12mm

  • Aluminum Rod: Length

    9.8" (24.89cm)

  • Dimensions

    Extension Arm (LxWxD): 11.4 x 3.6 x 1.7" (28.96 x 9.14 x 4.32cm)
    Dual Rod Clamp: 1.8 x 1.2 x 1.3" (4.57 x 3.05 x 3.30cm)
    Top Cheese Plate (LxHxD): 4.0 x 1.0 x 0.3" (10.16 x 2.54 x 0.76cm)
    Magic Arm: Height: 2.5" (6.35cm)
    Length Unfolded: 11" (27.94cm)
    Length Folded: 6.1" (15.49cm)
    EVF Extension Arm (LxWxH): 5.0 x 1.0 x 0.5" (12.70 x 2.54 x 1.27cm)
    Shoulder Pad: 12.0 x 3.3 x 5.0" (30.48 x 8.38 x 12.70cm)
    Battery Pinch: 10 x 7 x 4" (25.40 x 17.78 x 10.16cm

  • Weight

    Extension Arm: 1.1 lbs (0.50kg)
    Dual Rod Clamp: 3.5 oz (99.22g)
    Top Cheese Plate: 3.7 oz (104.89g)
    Magic Arm: 11.6 oz (328.85g)
    EVF Extension Arm: 1.8 oz (51.03g)
    Shoulder Pad: 2.4 lbs (1.09kg)
    Battery Pinch: 5 lbs (2.27kg)
    Power Cable: 1 oz (28.35g
    Aluminum Rod: 2.0 oz (56.70g)

About Lanparte Basic Handle Kit

FS5K-01 is the Lanparte Basic Handle Kit for SONY FS5 Camera which is a professional shoulder support kit designed for SONY FS5 camera that runs on 15mm rod system. The features include: FS5 Extension Arm that comes with the exact rosette mount on the camera which can be adjusted to the preferred angle. Design of this arm has incorporated built-in LANC that provides full functionality of the FS5 grip as well as extendable arm length to better fit each configuration and provide a steadier support. Also it comes with the rosette mount to connect to LanParte bridge plates and rosette arms.

Top Cheese Plate for FS5 not only providing multiple accessory mounting points via 1/4-20 and 3/8-16, but also keeping the original handle for secured camera carry. For installation, the original cable guide has to be removed from the top and mounted on the side of the cheese plate. FS5 NATO Monitor Extension Arm is the LanParte tool-less installation EVF Extension Arm designed for relocation and extension of the SONY FS5 EVF. It can be installed on the original EVF mount. By loosening the NATO thumbscrew you can move the EVF to your preferred position.

Lanparte Basic Handle Kit Features

  • Customized extension arm for SONY PXW-FS5 camera
  • Relocating the original handle to a more ergonomic position
  • Extension Arm incorporated built-in LANC cable
  • Universal design makes it easy for further upgrades

What's in the box:

  • Lanparte FS5A-01 FS5 Extension Arm
  • UG-03-H Arri Rosette Handgrip
  • ARL-01T-D2 Double Arri Rosette Lock Threaded Hole with Double Rod Clamp
  • TCP-02 Top Cheese Plate for FS5
  • MA-01 Magic-Arm
  • MEA-01 FS5 Monitor Extension Arm
  • VMS-01 V2 V-Mount Shoulder Support
  • VBP-01 V-Mount Battery Pinch
  • DC-50-10 Sony FS5 Camera DC Power Cable
  • 2x AR-250 250mm Aluminum Rods
  • Lanparte 1 Year Limited Warranty
