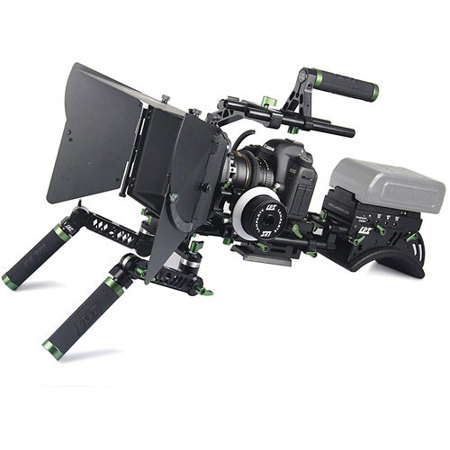

Lanparte Professional DSLR Kit V1 without Monitor and Battery, Includes Universal Grip V2, Swing-Away Matte Box, Follow Focus V2, Bridge Plate, CA-01 Support Arm, Top Handle, Magic Arm, Shoulder Support, ABS Protection Case

Magic Arm - Magic-Arm Rod Clamp - Shoulder Support for DSLR Camera Rig - Height Raiser Clamp - 2x 15mm Aluminum Rod (7.9") - VBP-01 Sony V-Mount Battery Pinch with HDMI Splitter - 3x Yellow-Tip Camera DC Power Spring Cable for Battery Pinch - Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm) - AC Power Adapter - E6 Battery Dummy Pack - DC Red Cable - HDMI to Right-Angle Mini-HDMI Cable - ABS Protection Case for DSLR Camera Rig Kit - 39" HDMI Cable - 59" HDMI Cable

2 x 3/8"-16 (one on each arm)
1 x 1/4"-20 (one on each arm)

4 x 4

2

2 Independent

90 deg.

ABS plastic
Aluminum

1/4"-20 and 3/8"-16

V-lock
1/4"-20 and 3/8"-16 threaded holes

11.8" / 29.97cm

1.6" / 4.06cm

1/4", 3/8"

2x 7.87" / 19.99cm

Rugged, anodized aluminum alloy

1/4"-20
3/8"-16

Aluminum alloy, rubber pad

1 x DC barrel, 5 VDC signal switch power output
1 x DC barrel, 7.4 VDC DSLR power output (requires AC adapter)
2 x DC barrel, 12 VDC monitor power output
1 x DC barrel, 15 VDC V-mount battery voltage output
1 x D-Tap output
1 x DC barrel, 16.8 VDC charging input
1 x USB, 5 VDC power output
1 x HDMI, splitter input
2 x HDMI, splitter output

5, 7.4, 12, 15 VDC

2.5 A

1 sec

Over-voltage (0.5 VDC), under-voltage, over-current

Operating Temperature: -4 to 113 deg. F / -20 to 45 deg. C
Temperature Rise: =113 deg. F / 45 deg. C, full load
Relative Temperature: <90%

Relative: =0.01 sec, +/-1%

Precision: =5 MOhms

Maintains double maximum current for 1 minute

Canon 5D3, 5D2, 7D and60D

90 deg. Mini-HDMI

HDMI

Without Heads: 23.6" / 59.94cm
With Heads: 25.2" / 64.01cm

Universal Grip: 8.9 x 13.5 x 1.2" / 22.61 x 34.29 x 3.05cm
Matte box (W x H x D): 8.3 x 5.9 x 2.8" / 21.08 x 14.99 x 7.11cm
Follow Focus V2: 7.44 x 4.31 x 3.16" / 18.90 x 10.95 x 8.03cm
C-Shaped Support Arm: 7.2 x 9.3 x 0.8" / 18.29 x 23.62 x 2.03cm
Shoulder Support: 7.9 x 4.3 x 4.5" / 20.07 x 10.92 x 11.43cm

Top Handle: 5.57 x 3.11 x 3.78" / 14.15 x 7.90 x 9.60cm
Battery Pinch: 5.6 x 4.0 x 2.9" / 14.22 x 10.16 x 7.37cm
E6 Battery: 2.2 x 1.6 x 0.9" / 5.59 x 4.06 x 2.29cm
ABS Protection Case: 26.4 x 19.7 x 12.2" / 67.06 x 50.04 x 30.99cm

Universal Grip V2: 2.46lbs / 1.12kg
Matte Box: 2.4lbs / 1.09kg
Follow Focus: 1.12lbs / 0.51kg
Bridge Plate: 1.6lbs / 0.73kg
C-Shaped Support Arm: 19oz / 538.64g
Top Handle: 11.5oz / 326.02g
Magic Arm: 11.6oz / 328.85g
Shoulder Support: 21.9oz / 620.85g
Battery Pinch: 1.8lbs / 0.82kg
Battery: 2.4lbs / 1.09kg
E6 Battery Dummy Pack: 2.1oz / 59.53g
Cable: 1.6oz / 45.36g

840534101022
