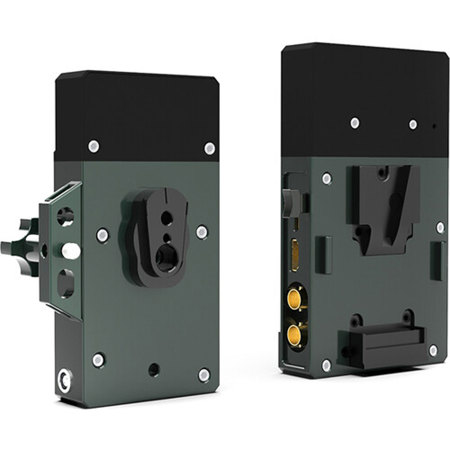

Vaxis Storm 1000S HDMI/SDI Wireless Video Transmission Kit with Transmitter and Receiver, V-Mount

SKU: LAS19100TR01

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vaxis Storm 1000S Specifications

General

General

Jump to...
  • Outdoor Max Distance

    350m

  • Delay

    0 (<1ms)

  • Frequency

    20MHz or 40MHz

  • Video Format

    1080p24/23.98,1080p6059.94, 1080p/50, 1080i60/59.94
    1080i50, 1080psf30/29.97, 1080psf24/25/23.98,720p60/59.94
    720p50, 576p60

  • Work Temperature

    32 Degree F to +104 Degree F (0 Degree C to +40 Degree C)

  • Battery Info

    optional, not included

  • Battery Material

    lithium

  • Battery Quantity

    2

  • Battery Type

    non-universal

Transmitter

Jump to...
  • Video

    SDI input (BNC female)/ SDI loopout
    HDMI input
    DC input (2-pin Lemo female)/Micro USB

  • Antenna

    Built-in

  • Power Connector

    2-pin Lemo (input)

  • Voltage

    7-36V

  • Dimensions

    5.4 x 2.7 x 1" (138 x 69.5 x 24.5mm)

  • Weight

    10.2 oz (290g)

Receiver

Jump to...
  • Video

    SDI output 2x (BNC female)/HDMI output
    DC input (2-pin Lemo female)/Micro USB

  • Antenna

    Built-in

  • Power Connector

    2-pin Lemo (input), Integrated V-Lock power input

  • Voltage

    7-36V

  • Dimensions

    6.1 x 3.6 x 1" (156 x 91.5 x 24.5mm)

  • Weight

    15.3 oz (435g)

  • UPC Code

    697211912116

About Vaxis Storm 1000S

Vaxis Storm 1000s Wireless HDMI and SDI System - 1x Transmitter and 1x Receiver with v-mount plate. Vaxis Storm 1000 is a professional wireless HD-SDI video transmission system for broadcast, cinema and indie productions. A new OLED screen means it isn't difficult to change channels, and lets you check power easily. A long range means Storm 1000 is very stable. Vaxis sword antenna cause less wear and tear on your equipment. Robust design with unique embedded antennas and strong transmission performance allows for a long service life.

Vaxis Storm 1000s is a new antenna-free design. The TX also features a built-in mounting bracket that uses a 3/8" thread. Having no external antennas will mean less chance of them getting broken or in the way. The TX features an SDI in/out as well as a HDMI input. The RX has two SDI and one HDMI output. It has a maximum range of 350m

Tradition still available
1/4' thread is still available if you are used to mount with noga arm

Storm 1000s is featured with brand new motherboard which can reduce the signal interference and improve the transmission distance to 350 meters.

Support O' Mode
O' mode provide an instant playback feature when you connect with Arri Alexa Mini

• Performance Improved 350M further
• Function Improved ARRI 0s Delay
• Structure Improved no Antenna

Built-in Antenna
Free from antenna assembly and failure, make the Storm 1000s more efficient and durable than ever.

More Power Options
DV battery available for the TX, V mount and gold mount available for the RX

Vaxis Storm 1000S Features

  • Performance Improved 350m further
  • Function Improved ARRI 0s Delay
  • Structure Improved no Antenna
  • Support O' Mode
  • Built-in Antenna

Key Features

  • Performance Improved 350m further
  • Function Improved ARRI 0s Delay
  • Structure Improved no Antenna
  • Support O' Mode
  • Built-in Antenna

What's in the box:

  • Vaxis Storm 1000s Transmitter (V-Mount)
  • Vaxis Storm 1000s Receiver (V-Mount)
  • 2x Power Cable
  • BNC Cable
  • Flight Case
  • Vaxis 2 Year Limited Warranty
