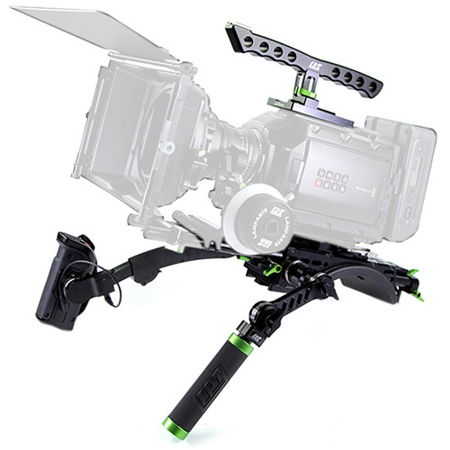

Lanparte Pro Shoulder Kit for Blackmagic URSA Mini Camera, Includes TH-03 URSA Mini Top Handle, URSEA-01 URSA Mini Extension Arm, UG-03-H Arri Rosette Handgrip, VMS-01 V-Mount Shoulder Pad, FF-02 Follow Focus V2, MB-01 ABS Matte Box and ASC-01 ABS Safety Case

SKU: LAURSK03

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lanparte Pro Shoulder Kit Specifications

  • Compatibility

    Blackmagic URSA Mini Camera

  • Top Handle: Material of Construction

    Aluminum

  • Top Handle: Mounting Holes

    Multiple 1/4"-20 & 3/8"-16 mounts

  • Top Handle: Accessory Shoe

    1x Cold shoe mount

  • Extension Arm: Material of Construction

    Aluminum

  • Aluminum Rod: Material

    Aluminum

  • Aluminum Rod: Rod Diameter

    15mm (0.59")

  • Aluminum Rod: Thread Size

    12mm

  • Aluminum Rod: Length

    9.8" (24.89cm)

  • Gear Ring: Compatibility

    Any prime/zoom lens

  • Gear Ring: Material

    Rubber

  • Gear Ring: Pitch

    0.8

  • Gear Ring: Diameter

    4.1" (10.5cm) maximum

  • Gear Ring: Length

    13.0" (33.0cm) approx.

  • Follow Focus Arm: Compatibility

    Canon C300, RED Epic

  • Follow Focus Arm: Pitch

    0.8

  • Matte Box: Filter Type

    4 x 4

  • Matte Box: Total Filter Stages

    2

  • Matte Box: Rotating Stages

    2 Independent

  • Matte Box: Degree of Rotation

    90 deg.

  • Matte Box: Materials

    ABS plastic
    Aluminum

  • Magic Arm: Material

    Rugged, anodized aluminum alloy

  • Magic Arm: Threads

    1/4"-20
    3/8"-16

  • Dimensions

    Top Handle (LxWxH): 12.8 x 4.9 x 2.5" (32.51 x 12.45 x 6.35cm)
    Extension Arm (LxWxD): 11.6 x 3.6 x 2.1" (29.46 x 9.14 x 5.33cm)
    Dual Rod Clamp: 1.8 x 1.2 x 1.3" (4.57 x 3.05 x 3.30cm)
    Shoulder Pad: 12.0 x 3.3 x 5.0" (30.48 x 8.38 x 12.70cm)
    Follow Focus V2 (WxHxD): 7.44 x 4.31 x 3.16" (18.90 x 10.95 x 8.03cm)
    Follow Focus Arm: 4.0 x 2.0 x 0.5" (10.16 x 5.08 x 1.27cm)

  • Dimensions (cont.)

    Matte box (WxHxD): 8.3 x 5.9 x 2.8" (21.08 x 14.99 x 7.11cm)
    Top Flag
    Min Width: 8.3" (21.08cm)
    Max Width: 13.1" (33.27cm)
    Magic Arm:
    Height: 2.5" (6.35cm)
    Length Unfolded: 11" (27.94cm)
    Length Folded: 6.1" (15.49cm)
    Case: Approx. 26.4 x 19.7 x 12.2" (67.06 x 50.04 x 30.99cm) (Exterior)

  • Weight

    Top Handle: 1.1 lbs (0.50kg)
    Extension Arm: 1.1 lbs (0.50kg)
    Dual Rod Clamp: 3.5 oz (99.22g)
    Shoulder Pad: 2.4 lbs (1.09kg)
    Aluminum Rod: 2.0 oz (56.70g)
    Follow Focus V2: 1.12 lbs (0.51kg)
    Gear Ring: 0.7 oz (19.84g)
    Follow Focus Arm: 2.5 oz (70.87g)
    Matte Box: 2.4 lbs (1.09kg)
    Magic Arm: 11.6 oz (328.85g)

About Lanparte Pro Shoulder Kit

URSK-03 is the Lanparte URSA Mini Pro shoulder Kit, which is a professional shoulder support kit designed for URSA Mini camera that runs on 15mm rod system. The features include: LanParte URSA Mini Extension Arm that comes with the exact rosette mount on the camera which can be adjusted to the preferred angle. The design of this arm has incorporated built-in LANC that provides full functionality of the URSA Mini grip as well as extendable arm length to better fit each configuration and provide a steadier support.

Also it comes with the rosette mount to connect to LanParte bridge plate and rosette arms. LanParte NATO Top Handle and Cheese Plate for URSA Mini for secured camera carry, as well as multiple accessory mounts via 1/4-20, 3/8-16 and a hot-shoe mount in the front. NATO rail top handle provides easy adjustments and quick lock using the tool-free thumbscrew. Hollowed-out design significantly cuts the weight down, still with all the mounting points you can attach your accessories securely and easily. With a professional addition of the ABS Matte Box that has the swing away design and holds two 4x4 rotatable filter trays, AB stop Follow Focus that has very consistent damp and no backlash and a pre-cut ABS Protection Case.

Lanparte Pro Shoulder Kit Features

  • Professional camera support package designed for the Blackmagic URSA Mini camera
  • Relocating the original handle to a more ergonomic position
  • Extension Arm incorporated built-in LANC cable
  • Rig enables ENG style shooting for longer shoots
  • Universal design makes it easy for further upgrades

What's in the box:

  • Lanparte TH-03 URSA Mini Top Handle
  • URSEA-01 URSA Mini Extension Arm
  • UG-03-H Arri Rosette Handgrip
  • ARL-01T-D2 Double Arri Rosette Lock Threaded Hole with Double Rod Clamp
  • VMS-01 V-Mount Shoulder Pad
  • 2x AR-250 250mm Aluminum Rods
  • FF-02 Follow Focus V2
  • FFGR-02 Follow Focus Gear Ring V2
  • FF-ARM-02 Follow Focus Arm
  • MB-01 ABS Matte Box
  • MA-01 Magic-Arm V1
  • VBP-04 V-Mount Battery Back Plate
  • ASC-01 ABS Safety Case
  • Lanparte 1 Year Limited Warranty
