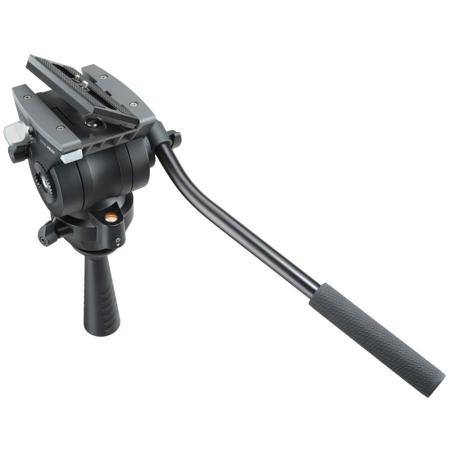

Libec ALX H Dual-Base Fluid Head with Pan Handle
See all Libec items

Libec ALX H Dual-Base Fluid Head with Pan Handle, 9lbs Payload

SKU: LBALXH

This item is no longer available.

Recommended Alternatives

Libec HS Series Head: Picture 1 regular
Libec H15 Dual Base Fluid Head with PH-6B Pan Handle, 6.6 lbs Load Capacity
$840.00$669.00
Libec HS Series Head: Picture 1 regular
Libec H25 Dual Base Fluid Head with PH-6B Pan Handle, 11 lbs Load Capacity
$990.00$789.00
Libec HS Series Head: Picture 1 regular
Libec H35 Dual Base Fluid Head with PH-6B Pan Handle, 17.6 lbs Load Capacity
$1,300.00$1,039.00
Libec H38B: Picture 1 regular
Libec H38B Pan/Tilt Head for LX7/LX7M Tripods, 75mm Claw Ball, Supports 17.5 lbs
$444.00$399.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Ben K : I have a libec T68 which is a 75mm ball head tripod. I would like to replace my current head which is a H22 DV. Is it possible to remove the H22 DV head and replace it with the TH-Z head?ANDREW R : This head should work on most 75mm bowls as well as flat base tripods (via the 3/8" mount)

Reviews about this item

Review Summary

2017-01-28T10:53:55

Rated 5 out of 5

Very easy to use with Libec Slider

Very easy to use with Libec Slider. Fast setups possible on the slider with the matching screw for attaching head to the slider. Easy to balance and lock down in leveled position. Highly recommended for DSLR video shoot.

JOHN S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Libec ALX H Specifications

  • Payload

    4kg / 8.82lbs

  • Counterbalance

    Fix

  • Drag mode

    Fix

  • Tilt angle

    +90 deg. / -80 deg.

  • Temperature range

    -20 to 60 deg. C / -4 to 140 deg. F

  • Bubble level

    Illuminated

  • Camera plate

    Sliding plate

  • Sliding range

    +/- 40mm / 1.57"

  • Plate attachment

    1/4" screw with video pin

  • Head Base

    Ball Dia.75mm / Flat Base with 3/8" Female thread

  • Pan handle

    Unique pan handle (Non-Telescopic)

  • Spare screw

    3/8" screw

  • Weight

    1.3kg / 2.87lbs

  • UPC Code

    4986397411505

About Libec ALX H

FEATURED REVIEWS

Very easy to use with Libec Slider

By JOHN S.

Very easy to use with Libec Slider. Fast setups possible on the slider with the matching screw for attaching head to the slider. Easy to balance and lock down in leveled position. Highly recommended for DSLR video shoot.

Dual Head
Dual-head specification available for both 75 mm ball diameter and flat base tripods. Mountable on sliders, Skater dollies and other equipment.

Light weight
Total weight of only 1.3Kg/2.9lb(Including pan handle)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Libec ALX H Dual-Base Fluid Head with Pan Handle
  • Tripod Mount Fixing Handle
  • Quick Release Camera Plate
  • 1/4 "-20 Mounting Screw and Video Pin
  • 3/8 "-16 Spare Mounting Screw
  • Libec 3 Year Limited Warranty
