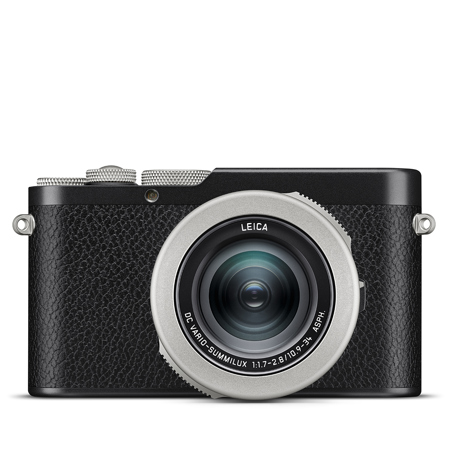

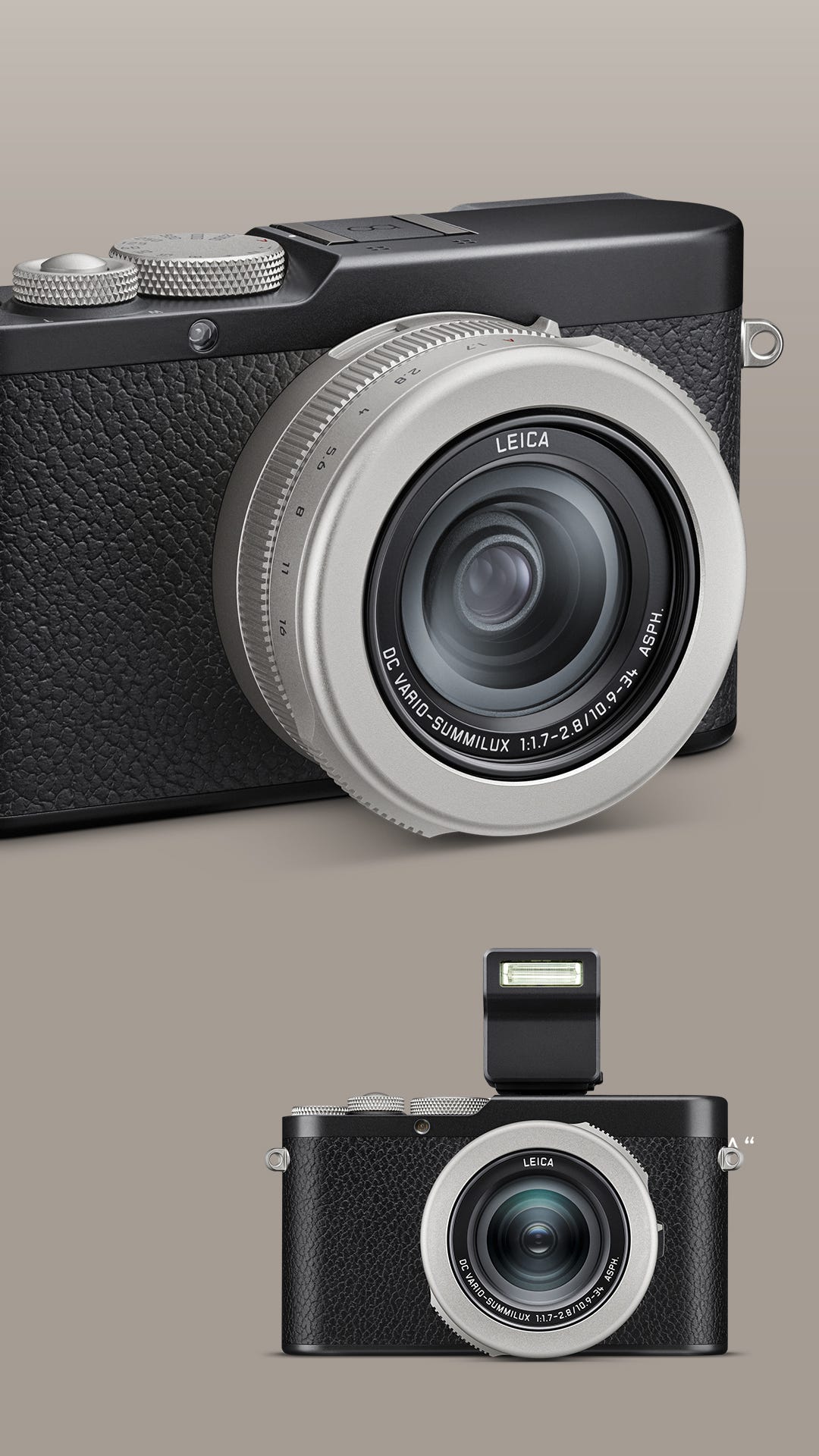

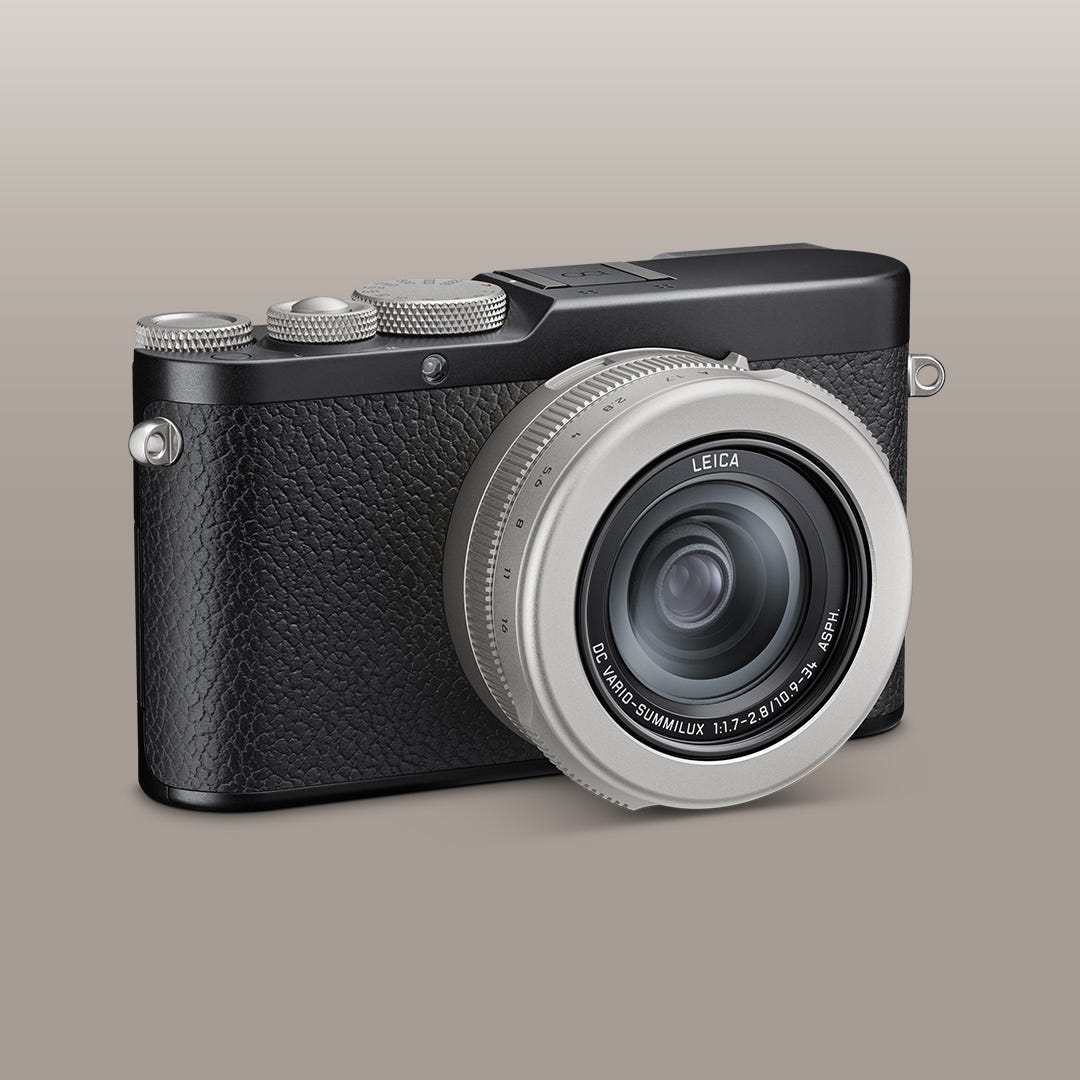

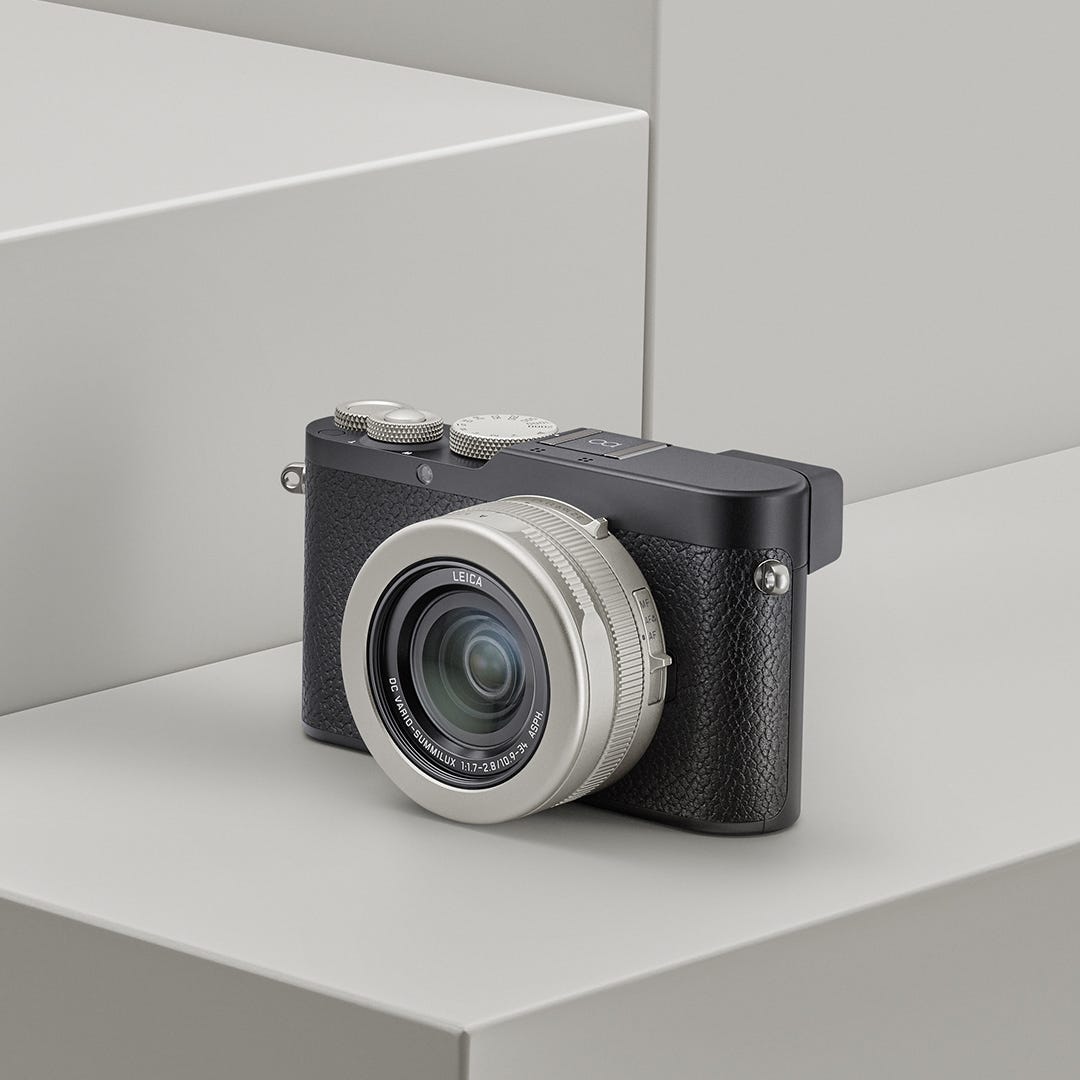

Leica D-Lux 8 100 YEARS OF LEICA

Digital Micro Four Thirds compact camera

DNG: 14 or higher, JPG: 100 or higher
11fps:
DNG: 12
DNG + JPG: 12
JPG: 100

7fps:
DNG: 13
DNG + JPG: 13
JPG: 100

2 fps:
DNG: 23
DNG + JPG: 14
JPG: 100

UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card

Full metal housing: magnesium die-cast, leatherette covering

0 Degree C to +40 Degree C

ISO accessory shoe with additional control contacts for Leica flash units, HDMI jack TypeD, USB3.1 Gen1 TypeC

A 1/4 DIN 4503 (1/4") with stainless steel in the base

4/3" CMOS sensor, 21,77MP/17MP (total/effective)

RGB color filter, UV/IR filter

Photo: DNG (raw data), DNG + JPG, JPG (DCF 2.0, Exif 2.31)
Video: MP4, H.264, AAC stereo

DNG:
16:9: 5152x2904 (15MP)
3:2: 4928x3288 (16.2MP)
4:3: 4736x3552 (16.8MP)
1:1: 3552x3552 (12.6MP)

M-JPG:
16:9: 3840x2160 (8.3MP)
3:2: 3504x2336 (8.2MP)
4:3: 3360x2520 (8.5MP)
1:1: 2528x2528 (6.4MP)

L-JPG:
16:9: 5152x2904 (15MP)
3:2: 4928x3288 (16.2MP)
4:3: 4736x3552 (16.8MP)
1:1: 3552x3552 (12.6MP)

S-JPG:
16:9: 1920x1080 (2.1MP)
3:2: 2496x1664 (4.2MP)
4:3: 2368x1776 (4.2MP)
1:1: 1776x1776 (3.2MP)

DNG: approx. 31MB, depending on resolution and image content
JPG:depending on resolution and image content
Video: max. length: 29min

DNG: 12bit
JPG: 8bit

Photo: sRGB

4K: 3840x2160
Full HD: 1920x1080
HD: 1280x720

4K 30p: 29.97fps, 4K 4:2:0 / 8bit, h.264, L-GOP, 100Mbps
4K 24p: 23.98fps, 4K 4:2:0 / 8bit, h.264, L-GOP, 100Mbps
FHD 60p: 59.94fps, FHD 4:2:0 / 8Bit, h.264, L-GOP, 28Mbps
FHD 30p: 29.97fps, FHD 4:2:0 / 8Bit, h.264, L-GOP, 20Mbps
HD 30p: 29.97fps, HD 4:2:0 / 8Bit, h.264, L-GOP, 10Mbps

Leica DC Vario-Summilux 1:1.7-2.8/10.9-34ASPH., 35mm equivalent: 24-75mm, aperture range: 1.7-16/2.8-16 (at 10.9/34mm)

E43

Visual compensation system for photos and video recordings

Depending on zoom level, F1.7 to F16 in 1/3EV increments (wide angle) F1.7 to F16; (tele zoom) F2.8 to F16 in 1/3EV increments

OLED, Resolution: 2,360,000dots, 60fps, magnification: 0.74x, at aspect ratio: 4:3, exit pupil position: 20mm, setting range -4/+4dpt, with eye sensor for automatic switchover between viewfinder and LCD panel, time delay 0.005s

3" TFT LCD, approx. 1,843,200dots, 384ppi, aspect ratio 3:2, touch panel

Mechanical central shutter or optional electronic shutter

Mechanical shutter: 60s to 1/4000s
Electronic shutter function: 1s to 1/16000s

Two-stage
(1st stage: Activation of the camera electronics including autofocus and exposure metering, 2nd stage: Taking the picture)

Delay time: 2s or 12s

Single, Interval Shooting, Exposure Bracketing
Continuous shooting:
Continuous Shooting - 2 fps, 12 bit, AF, Continuous Shooting - 7 fps, 10 bit, Continuous Shooting - 11 fps, 10 bit

50cm to Infinite
With macro setting: from 3cm (wide angle), from 30cm (tele zoom)

Automatic, Automatic (macro), or Manual

Contrast detection

Intelligent AF (autonomously selects AFs and AFc), AFs, AFc

Spot (can be shifted), Field (can be shifted and scaled), Multi-Field, Zone (can be shifted), Eye / Face, Tracking

49

TTL (exposure metering through the lens), with working aperture

Exposure metering is done by the image sensor for all exposure metering methods

Spot, Center-Weighted, Multi-Field

Program AE mode (P)
Aperture-priority mode (A): manual aperture setting
Shutter-priority mode (S): manual shutter-speed setting
Manual (M): manual setting for shutter speed and aperture
Various fully automatic variants (Scene Mode): Auto, Portrait, Landscape, Night Scenery, Miniature Effect, One Point Color, HDR

+/-3 EV in 1/3EV increments

3, 5 or 7 frames, graduations between shoots up to 1EV, in 1/3EV increments additional optional exposure compensation: up to +/-3EV

Photo:
Auto ISO: ISO 100-ISO 25000
Manual: ISO 100-ISO 25000

Video:
Auto ISO: ISO 100-ISO 6400
Manual: ISO 100-ISO 6400

Automatic (Auto), default (Daylight, Cloudy, Shadow, Tungsten, Flash), manual metering (Gray Card), manual color temperature settings (Color Temperature, 2500K to 10000K)

Included in the delivery: Leica CFD

Aligned with the shortest focal length of the lens of 10.9mm

10/7 (at ISO 200/100)

Approx. 0.6-14.1m/0.3-8.5m (at shortest/longest focal length)

Via the accessory shoe

1/4000s, slower shutter speeds available

+/-3 EV in 1/3EV increments

Stereo

Mono

WLAN function for connecting to the Leica FOTOS app. The Leica app is available from the Apple App Store or the Google Play Store.
IEEE802.11b/g/n Channel 1-11 (2412-2462MHz), maximum output (e.i.r.p.): 5.9dBm, encryption method: WLAN-compatible WPA/WPA2

Bluetooth 5.0 LE: Channel 0-39 (2402-2480MHz), maximum output (e.i.r.p.): 1.2dBm

Not available everywhere due to country-specific legislation; can be added via the Leica FOTOS app. Data is written to Exif header of the picture files.

English, German, French, Italian, Spanish, Portuguese, Russian, Japanese, Traditional Chinese, Simplified Chinese, Korean

Lithium-ion rechargeable battery, rated voltage: 7.2V (DC), capacity: 1025mAh (min.)

With camera switched off: 5V/1500mA (2.5W or greater)

7.2V 0.9A (battery), 5V 1.0A (USB)

Required, Included

Lithium-ion

Non-universal

1

5.11 x 2.44 x 2.71" (130 x 62 x 69mm)

With Battery: Approx. 14 oz (397g)
Without Battery: 12.59 oz (357g)

4022243191976
