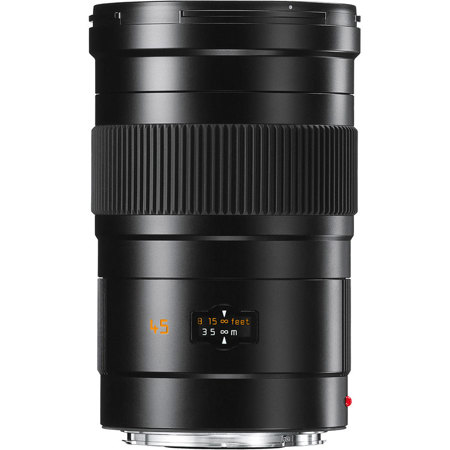

Leica 45mm f/2.8 Elmarit-S Aspherical Lens for S System

Fast aperture, wide-angle lens with aspherical lens surface for outstanding quality

All Leica S models

Approx. 62, 53, 37 (diagonal, horizontal, vertical), corresponds to approx. 36mm focal length in 35mm system

Number of lens elements / groups 12 / 9, aspherical surfaces 1, location of entrance pupil 83, 95 / 83, 95 mm (to infinity / closest focusing distance, direction of light incidence ago bayonet)

Working range 0.6 m to infinity, scales combined meters / feet, smallest object field / largest scale approx. 456 x 304 mm / 1:10.1

Electronically controlled iris, f-stops selectable in half-stops increments with the click wheel on the camera, smallest aperture value f22

Leica S bayonet

Threaded mount for E82 filters, non-rotating filter mount

Lens hood with bayonet mount

Length up bayonet mount approx.
With Lens: 136 mm / 5.35"
without lens: 163 mm / 6.41"
Largest diameter approx.
With Lens hood: 88 mm / 3.46"
without lens hood: 132 mm / 5.19"

Approx. With shutter: 1030 g / 36.33 oz
Without Shutter: 1110 g / 39.15 oz
