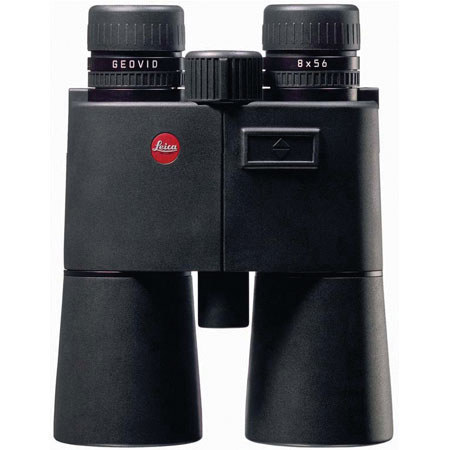

Leica 40032 8x56 BRF-Y Geovid Prism Binocular
See all Leica items

Leica 8x56 BRF-Y Geovid Water Proof Roof Prism Binocular with Integrated Laser Rangefinder, 1,300 yds., with 7.1 Degree Angle of View

SKU: LC856BRFY
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Leica 40032 8x56 BRF-Y Geovid Prism Binocular Specifications

  • Magnification:

    8x

  • Objective Lens Diameter

    56mm

  • Exit Pupil Diameter

    7 mm

  • Twilight Factor

    21.17

  • Angle Field of View

    7.1 degrees

  • Linear FOV at 1000 yds

    372.75 feet

  • Apparent FOV

    56.8 degrees

  • Eye Relief:

    18.5 mm

  • Close Focus

    18 feet

  • Diopter Compensation

    +/- 3.5 dpt

  • Lens Coatings

    Leica HDC Coating

  • Prism System

    Roof Prism with P40 Phase Correction Coatings

  • Interpupilarry Distance

    58-74mm

  • Measuring Range

    10 Yards to 1300 Yards

  • Accuracy


    Accuracy of +/- 1 yds: At approximate distances of: 10 to 300 yds
    Accuracy of +/- 2 yds: At appx Distances of: 381 to 763 yds
    Accuracy of +/- 0.5%: At appx Distances of: Over 763 yds

  • Display

    4 figure LED with Auto Brightness Adjustment

  • Power Source

    One 3V Lithium Battery - Type CR 2

  • Batttery Life

    At 68 degrees F: Approx 1000 Measurements

  • Max Measuring Time

    Approx 0.9 Seconds

  • Functions

    With Scan Mode

  • Laser

    Eye Safe, non-visible, EN & FDA Class 1

  • Laser Beam Divergence

    2.5 x 0.5 mrad

  • Nitrogen Filled

    Yes

  • Waterproof

    16.4 ft

  • Dimensions:

    W/H/D: 5.3"x7.2"x2.7"

  • Weight w/Battery

    40.57 ozs
