LCDVF Kinotehnik Electronic Viewfinder and HD-SDI to HDMI Converter Kit
See all Kinotehnik items

Kinotehnik Electronic Viewfinder and HD-SDI to HDMI Converter Kit

SKU: LCDVFECON
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kinotehnik : Picture 1 regular

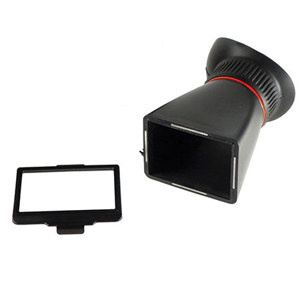

LCDVF Kinotehnik LCDVF 4N LCD Viewfinder with Plastic Clip-on Mounting Frames
$145.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

LCDVF Kinotehnik Electronic Viewfinder and HD-SDI to HDMI Converter Kit Specifications

  • Viewfinder: Screen Size

    3" / 7.62cm TFT LCD

  • Viewfinder: Resolution

    800 x 480

  • Viewfinder: Pixel Count

    1.2 megapixels

  • Viewfinder: Pixel Density

    311 PPI

  • Viewfinder: Color Depth

    24-bit 16.7M colors

  • Viewfinder: Connections

    Full-size heavy-duty HDMI input
    Full-size heavy-duty HDMI output
    HDMI loop-through with audio
    Mini-USB PC/Mac connection
    Mini-USB dedicated remote connection

  • Viewfinder: Supported Video Formats

    SD
    480p59.94, 480pH59.94, 480i59.94, 480iH59.94, 576p50, 576pH50, 576i50, 576iH50, DMT0659p59.94
    HD
    720p24, 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60

  • Viewfinder: Diopter Range

    -2... +2
    Additional 46 mm filter threads for individual diopter correction

  • Viewfinder: Power

    On-board: 4x AA batteries (6 hour run-time on 2600mAH batteries)
    External power: 4-17V, reverse polarity protected
    Power drain: 1.9W

  • Converter: Power Supply

    8 to 17 VDC

  • Converter: SDI Format Support

    SD-SDI, HD-SDI, 3G-SDI

  • Converter: Impedance

    75 Ohms for SDI

  • Converter: Resolution

    SDI Input / HDMI Output: 720p at 50 / 60 Hz, 1080i at 50 / 60 Hz, 1080p at 24 / 25 / 30 Hz

  • Converter: Data Transfer Rates

    270 Mb/s, 1.485 Gb/s, 2.97 Gb/s

  • Converter: Working Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Dimensions

    Viewfinder: 6.6 x 3.4 x 2.5" / 167.64 x 86.36 x 63.5mm

  • Weight

    Viewfinder: 0.77lbs / 0.35kg

About LCDVF Kinotehnik Electronic Viewfinder and HD-SDI to HDMI Converter Kit

The LCDVF Kinotehnik Kit includes the universal production-style electronic viewfinder and HD-SDI to HDMI Converter. The HD-SDI to HDMI Converter is handy when you need to use the LCDVFe Viewfinder with a camera with HD-SDI only output, such as a BlackMagic Cinema Camera. At the heart of the viewfinder is an Altera Cyclone FPGA device, known for its high memory-to-logic and DSP-to-logic ratios. This device enables fast startup and HD video processing at high picture quality while retaining energy efficiency.

The HD-SDI to HDMI Converter converts incoming HD-SDI signals into HDMI so that they can be sent to the electronic viewfinder. This aluminum converter comes with a 15mm mounting hole so that it can be easily installed to any rig system. The unit can be powered up from a wide voltage range, meaning that any rig battery can be used with the D-Tap cable included in the package.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

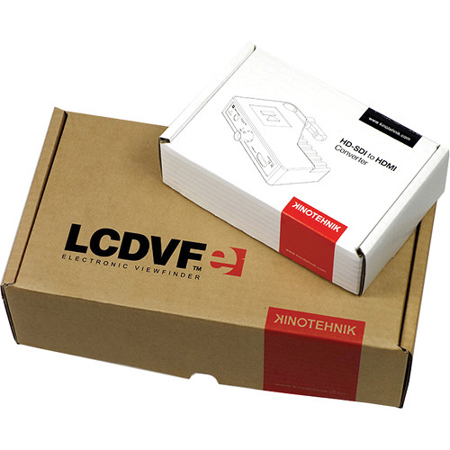

What's in the box:

  • LCDVF Electronic Viewfinder
  • HD-SDI to HDMI Converter
  • LCDVF 2 Year Limited Warranty for Viewfinder
  • LCDVF 1 Year Limited Warranty for Converter
