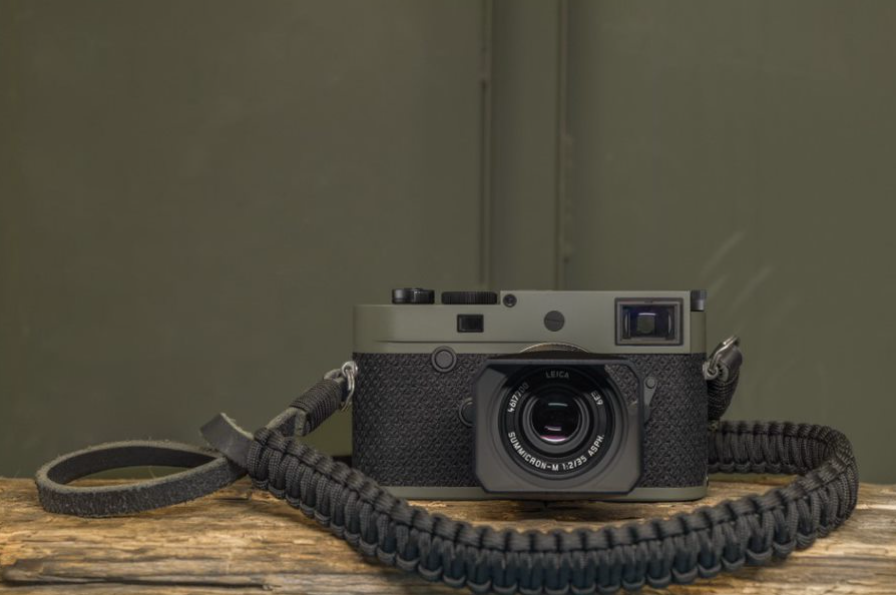

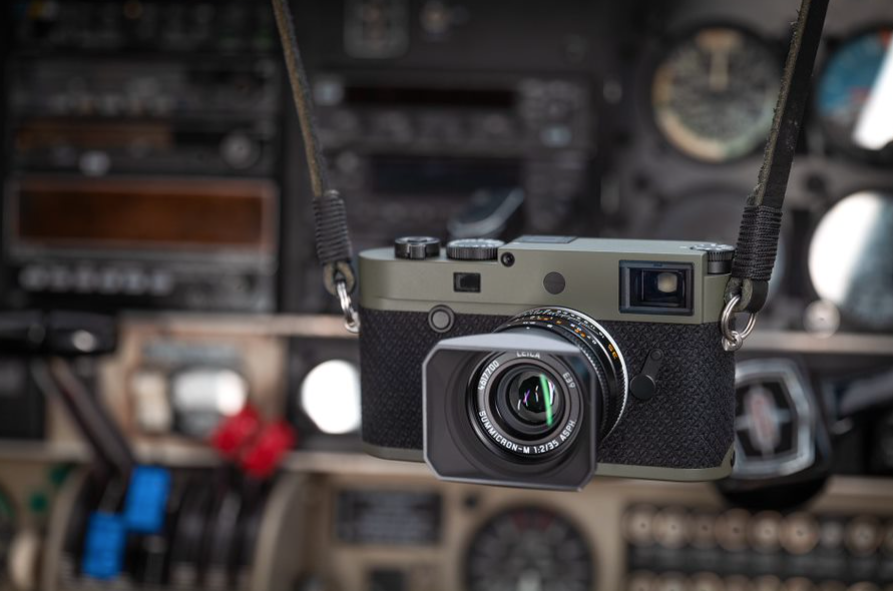

Leica M10-P "Reporter"

Leica M10, compact digital view and range finder system camera

Leica M bayonet with additional sensor for 6-bit coding

Leica M lenses, Leica R lenses can be used with an adapter (available as an accessory)

CMOS chip, active surface approx. 24 x 36mm

DNG: 5976 x 3992 pixels (24MP), JPEG: 5952 x 3968 pixels (24MP)

DNG (raw data, compressed loss-free), JPEG

DNG: 20-30 MB, JPEG: Depending on resolution and picture content

2GB / 16 pictures in series

Automatic, manual, 8 presets, color temperature input

SD cards up to 2GB/SDHC cards up to 32GB/SDXC cards up to 2TB

German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Exposure metering through the lens (TTL), with working aperture;

For metering the light reflected by light blades of the 1st shutter curtain onto a measuring cell: Strong center-weighted; for metering on the sensor: Spot, center-weighted, multi-field metering

At room temperature and normal humidity for ISO 100, at aperture 1.0 EV-1 to EV20 at aperture 32. Flashing of the left triangular LED in the viewfinder indicates values below the metering range

ISO 100 to ISO 50000, adjustable in 1/3 ISO increments from ISO 200, choice of automatic control or manual setting

Choice of automatic shutter speed control with manual aperture preselection - aperture priority A, or manual shutter speed and aperture setting

Via accessory shoe with central and control contacts

Optionally triggered at the 1st or 2nd Shutter curtain

= 1/180s; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS compatible Leica system flash units

Using center-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter

2 silicon photo diodes with collection lens on the camera base

+/-3EV in 1/3EV increments

Using flash symbol LED

Large, bright line frame viewfinder with automatic parallax compensation

3"

Calibrated to -0.5 dpt.; corrective lenses from -3 to +3 diopter available

By activating two bright lines each: For 35 and 135mm, or for 28 and 90mm, or for 50 and 75mm; automatic switching when lens is attached.

The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens.

At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by the corresponding bright line frame and slightly less for shorter distance settings than 2m

0.73x

Split or superimposed image range finder shown as a bright field in the center of the viewfinder image

50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x)

4022243200418
