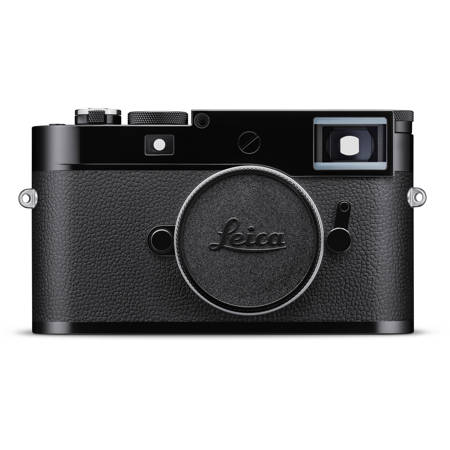

Leica M11 Rangefinder Camera, Glossy Black

Glossy Black

Digital camera system with rangefinder

Memory 3 GB
DNG: 15 recordings
JPG: > 100 recordings

UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card (SDXC cards up to 2 TB), internal memory 64 GB

Black: Full-metal housing made of magnesium and aluminum, leatherette cover

Leica M bayonet with additional sensor for 6-bit encoding

32 Degree F to 104 Degree F (+0 to +40 Degree C)

ISO accessory shoe with additional control contacts for Leica flash units and Leica Visoflex 2 viewfinder (optional accessory), USB 3.1 Gen1 Type-C

A 1/4 DIN 4503 (1/4") with stainless steel in the base

CMOS sensor, pixel pitch: 3.76 microm, 35 mm: 9528 x 6328 pixels (60.3 MP)

Leica Maestro series (Maestro III)

RGB color filter, UV/IR filter, no low-pass filter

DNG (raw data, loss-free compression), DNG + JPG, JPG (DCF, Exif 2.30)

DNG:
L-DNG 60,3 MP 9528 x 6328 pixels
M-DNG 36,5 MP 7416 x 4928 pixels
S-DNG 18,4 MP 5272 x 3498 pixels

JPG:
L-JPG 60,1 MP 9504 x 6320 pixels
M-JPG 36,2 MP 7392 x 4896 pixels
S-JPG 18,2 MP 5248 x 3472 pixels

DNG:
L-DNG approx. 70-120 MB
M-DNG approx. 40-70 MB
S-DNG approx. 20-40 MB

JPG:
L-JPG approx. 15-30 MB
M-JPG approx. 9-18 MB
S-JPG approx. 5-9 MB

DNG: 14 Bit, JPG: 8 Bit

sRGB

Large, bright-line rangefinder with automatic parallax compensation, suitable for -0.5 dpt; optional corrective lenses available: -3 to +3 dpt

Four-digit digital display with items show on the top and bottom, Image field limiter: two lit frames: 35 mm + 135 mm, 28 mm + 90 mm, 50 mm + 75 mm (automatic switchover when lens is attached)

The horizontal and vertical difference between viewfinder and lens is compensated automatically in line with the relevant focus setting. Congruence of viewfinder and actual image.

The size of the bright-line frame matches the distance:
at 2 m: the exact sensor size of approx. 23.9 x 35.8 mm
at infinity: (depending on focal length) approx. 7.3% (28 mm) to 18% (135 mm)
less than 2 m: less than sensor size

x0.73 (all lenses)

Split or superimposed image rangefinder shown as a bright field at the center of the viewfinder image

2.95" (7.49cm) (Active Matrix TFT), Gorilla Glass 5 cover glass, 2,332,800 dots, format 3:2, touch control available

Electronically controlled focal plane shutter and electronic shutter function

Mech. shutter: 60 min to 1/4000s
Electro. shutter function: 60 s to 1/16000s
Flash Synch: up to 1/180s
Optional noise reduction via additional "black picture" (can be disabled)

Two-stage (1st stage: activation of the camera electronics including exposure metering and metering memory lock, 2nd stage: taking the picture)

Delay time: 2 s or 12 s

Single
Continuous - Low Speed (3 fps)
Continuous - High Speed (4.5 fps)
Interval Shooting
Exposure Bracketing

70 cm to Infinite

Manual (focus assist functions Magnification and Focus Peaking available)

TTL (exposure metering through the lens)
Spot, Center-Weighted, Multi-Field

Exposure metering is done by the image sensor for all exposure metering methods (in Live View mode and in rangefinder mode)

Aperture priority mode (A): Automatic shutter speed control with manual aperture preselection
Manual (M): manual setting for shutter speed and aperture

+/-3 EV in 1/3 EV increments

3 or 5 shots, graduations between shoots up to 3 EV, in 1/3 EV increments, additional optional exposure compensation: up to +/-3 EV

Auto ISO: IS0 64 (native) to ISO 50 000, also available in flash mode
Manual: ISO 64 to ISO 50,000

Automatic (Auto), Default (Daylight - 5200 K, Cloudy - 6100 K, Shadow - 6600 K, Tungsten - 2950 K, HMI - 5700 K, Fluorescent (warm) - 3650 K, Fluorescent (cool) - 5800 K, Flash - 6600 K), manual metering (Gray card), manual color temperature setting (Color Temperature, 2000 K to 11,500 K)

No

1/180s, slower shutter speeds available, automatic switchover to TTL linear flash mode with HSS-compatible Leica system flash units if sync time is undercut

Using center-weighted TTL pre-flash metering with Leica flash units (SF 26, SF 40, SF 58, SF 60, SF 64) or with system-compatible flash units, remote controlled flash SF C1

SF 40: +/-2 EV in 1/2 EV increments
SF 60: +/-2 EV in 1/3 EV increments
Other: +/-3 EV in 1/3 EV increments

Flash icon: Connection of an external flash unit (in the viewfinder only)

The Leica FOTOS app is required to use the WLAN function. The Leica app is WLAN available from the Apple App Store or the Google Play Store. 2.4 GHz/5 GHz dual band IEEE802.11 a/b/g/n/ac Wave2 WLAN (standard WLAN protocol), encryption method: WLAN-compatible WPA/WPA2, access method: infrastructure mode

Bluetooth v4.2 BR/EDR/LE, BR/DR-channel 1-79, LE-channel 0-39 (2402-2480 MHz)

Geotagging via Leica FOTOS app using Bluetooth

English, German, French, Italian, Spanish, Russian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Portuguese

Li-Ion (Lithium-Polymer) rechargeable battery, rated voltage: 7.4 V / capacity: 1800 mAh, Charging voltage/current: DC 1000 mAh, 7.4 V, operating conditions: 50 Degree F to 104 Degree F (+10 Degree C to +35 Degree C) (charging) / 32 Degree F to 104 Degree F (+0 Degree C to +40 Degree C) (discharged) Approx. 700 shots (in accordance with CIPA Standard) up to approx. 1700 shots (Leica adapted shooting cycle)

Input: USB-C DC 5 V, 2 A, output: DC 8.4 V, 1 A, operating conditions: 50 Degree F to 104 Degree F (+10 Degree C to +35 Degree C)

Input: AC 110 V - 240 V - 50/60 Hz, 0.3 A, output: DC 5 V, 2 A, operating conditions: 50 Degree F to 104 Degree F (+10 Degree C to +35 Degree C)

When in standby mode or Off: USB charging function
When On: USB power supply and intermittent charging

Required, Included

Lithium Ion

Non-Universal

1

5.47 x 1.52 x 3.15" (139 x 38.5 x 80mm)

With Battery: 18.7 oz (530g) (Approx.)
Without Battery: 16 oz (455g) (Approx.)

4022243202306
