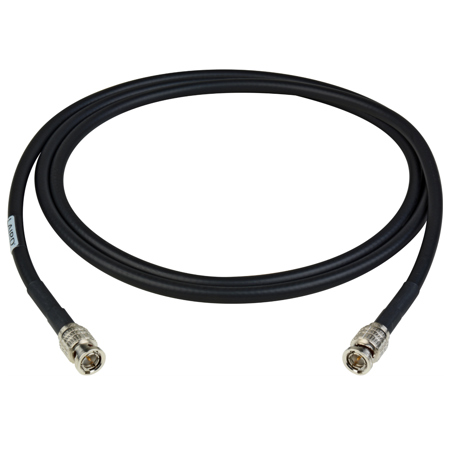

Laird 150' BNC to BNC 12G-SDI/4K UHD Single-Channel Coaxial Cable

Where high-quality, reliable signal transmission is a must, the 150' BNC to BNC 12G-SDI/4K UHD Single-Channel Coaxial Cable by Laird stands out as a superior choice. Engineered for the most demanding 12G / 4K UHD applications, this cable is ideal for use in broadcast TV, sports coverage, live events, and commercial production workflows.

This state-of-the-art coaxial cable is designed to effectively transmit 12G-SDI signals up to 325 feet, offering enhanced attenuation characteristics that allow for signal transport at much greater distances than comparable sized coax. The future-proof design ensures these 12G SDI cables can handle emerging video formats and signals, making them an excellent choice for new facility installations and broadcast towers.

Constructed with Canare L-5.5CUHD miniature coaxial and BCP-D55UHD BNC connectors, these cables are fully SMPTE ST-2082-1 compliant. They boast a superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz, making them perfectly suited for 12G, 6G, and 3G systems.

Designed specifically for Ultra High Definition and 4K signal transmission, the Laird 150' BNC to BNC 12G-SDI/4K UHD Single-Channel Coaxial Cable ensures maximum signal integrity. While Canare may list the maximum transmission distance as 300 feet, Laird certifies this cable to work at a maximum transmission distance of 250 feet for 12G-SDI, maintaining 100% functional signal integrity without any CRC errors.

While your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues, it's important to note that the presence of CRC errors could result in drops in audio, video, meta, and ancillary data. However, in most circumstances, video integrity remains intact at OEM distance. Trust Laird for your high-definition signal transmission needs.
