Leupold LTO-Quest 1-4x Thermal Viewer, 206x156 Sensor, 15Hz Frame Rate, Water & Shock Resistant, with Camera & 300 Lumen LED Flashlight, Shadow Gray/Black

SKU: LD173096

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Molly M : Looking for thermal binoculars for my dad, not finding anything under 1000. My question is, will this thing see a person hiding behind a tree at 100, 200 yards?
Shopper : Why Did You Choose This?Tonya S : HuntingMichael R : PriceJoseph F : To help track game and I chose to buy it from you because the price was way better than the price at other options !John M : I thought this was free shipping?Richard M : Wanted one ,,,retired Peace office and P.I.

Reviews about this item

Review Summary

2021-11-13T19:00:00

Rated 3 out of 5

Around the house

Useless in heavy brush. But great for finding dog poop when fido runs off to the neighbors yard. The flashlight lets you go in for the bagging with accuracy. I guess its kind of hunting, right?

darrel b.

2020-05-26T20:00:00

Rated 5 out of 5

Small but amazing

So far so good never thought that a small compact thing could see so much

Daniel

2019-12-19T19:00:00

Rated 5 out of 5

I would recommend this to anyone that hunt

Hunter reclaiming downed legally hunted game and hunting predators where legal at nite!

Banjo

2019-12-16T19:00:00

Rated 5 out of 5

Awesome

This thing is great. Amazing piece of technology. Easily picks up heat from 200-300 yds. Also gives you the actual surface temperature and allows you to take pictures.

Daniel

2019-12-06T19:00:00

Rated 5 out of 5

Great pocket budget thermal

I bought this for tracking wounded deer and looking for pigs & coyotes at night. For the price, it works great. Especially if it's less than 50 degrees out. I have seen squirrels on it at 50yds. The usb rechargeable battery lasts a long time too. I could have done without the flashlight feature. This thermal is nice to keep in your pack.

Chris

2019-11-29T19:00:00

Rated 4 out of 5

Mostly good

Useful tool in the arsenal. Pretty good features with this one. Battery lasted a little over an hour after full charge. Good handheld but could have better battery life. #sweepstakes

Mark

2019-11-25T19:00:00

Rated 5 out of 5

Awesome thermal viewer

Works like a charm! Easy to change the view mode (filter), capture images, and operate the built-in flashlight. Great device.

Barry

2019-10-26T20:00:00

Rated 4 out of 5

I would buy this again if I had too

It works great, unless the target runs into the brush then it has a hard time picking up the heat signature. Other than that it's a great product.

Bradley

2019-08-27T20:00:00

Rated 5 out of 5

Awesome handheld unit!

Has great clarity compared to my old Seek Unit!

Ethan

2019-05-05T20:00:00

Rated 5 out of 5

Great clarity.

I use this to check campsites for cougars, bears, raccoons, etc. If it's alive, you're going to easily see it. I also use it in communications work to look for overheating RF amplifiers and connectors on radio sites. The form factor does take getting used to, because it's like using a cell phone rather than holding it up to your eye like a scope. The resolution is great, and it's about as easy to see what you're looking at as a Flir with MDX thermal/visual overlay. (Which is useless at night because its visual cam can't see anything) If you're looking at a hot breaker in a panel, you can easily see what it is, there's no shapeless blobs with this device. The flashlight is handier than I thought it would be, because if you see something lurking in the brush, you already have the device in your hand, so you don't need to grab a separate light to illuminate whatever it is. Connects with USB and you download photos like any digital camera. My Linux machines instantly recognize it, as well as Windows 7 and 10.

Craig U.

2018-10-03T20:00:00

Rated 2 out of 5

Not for hunting

Fun to play with the kids around the house but useless for hunting. It does not pick up blood at all and barely differentiates animals 20 yards away from its surroundings.

Fritz

2017-12-14T19:00:00

Rated 5 out of 5

Worth Every Penny

Had it for two days now and it is amazing! Found out some interesting facts about thermal technology that I didn't know before. Found out how to hide from thermal completely was cool, just in the first day!! I just love it for camping when your in places that can eat you! Takes away wild animals seeing you first, with this it's the other way around! Sense of relief knowing that I can see a bear before he sees me!! With this thermal imager, nighttime is as safe as daytime! 300 yard range gives you that added comfort at night! Camp fire doesn't effect it in any way!

SolarGod

Leupold LTO-Quest Specifications

  • Array Configuration

    206x156 Uncooled VOx micro-bolometer

  • Frame Rate

    15 Hz

  • Sensitivity

    <0.1 deg.C / <0.18 deg.F at F/1

  • Temperature Range

    Detection Range: -40 to 330 deg.C / -40 to 626 deg.F
    Accuracy at 25 deg.C: Greater of 5 deg.C or 5% / 9 deg.F or 5%

  • Spectral Response

    7.5 - 14Mu m

  • Display

    2.4" TFT Color LCD

  • Display Resolution

    206x156 QVGA

  • Display Angle

    >70 deg.

  • Contrast Ratio

    500:1

  • Magnification

    1-4x digital zoom

  • Lens System

    4mm, f/1.2, AR-coated chalcogenide glass

  • Field of View

    20 deg.

  • Eye Relief

    Unlimited

  • Minimum Focus Distance

    6" (15.24cm)

  • Video Output

    No

  • External Memory

    microSD slot: up to 32GB

  • Image Format

    Image Format: PNG

  • File System

    File System: FAT32

  • Date/Time Stamp

    Yes

  • Reticle

    Digital reticle

  • Ports

    Micro-USB port

  • PC Compatibility

    Windows, MAC OS 9 & X, Linux

  • Language Support

    English, Spanish, French, German

  • Built-in Light

    Type: LED
    Hi Mode: 300 lumens
    Low Mode: 120 lumens

  • Battery / Runtime

    1 x 1900 mAh polymer lithium-ion battery / Camera Only: 10 hours, Camera & Flashlight: 2 hours, In Storage (off): 60 days

  • Weatherproofing

    Water- and dust-resistant

  • Humidity

    10 - 95%, non-condensing

  • Operating Temperature

    14 to 149 deg. F (-10 to 65 deg. C)

  • Storage Temperature

    -40 to 131 deg. F (-40 to 55 deg. C)

  • Battery Charge Temperature

    32 to 113 deg. F (0 to 45 deg. C)

  • Shock

    3.3' (1.01m) drop

  • Dimensions

    5.0 x 2.4 x 1.2" (12.70 x 6.10 x 3.05cm)

  • Weight

    6.25 oz (177.18g)

  • UPC Code

    030317017484

About Leupold LTO-Quest

FEATURED REVIEWS

Great clarity.

By Craig U.

I use this to check campsites for cougars, bears, raccoons, etc. If it's alive, you're going to easily see it. I also use it in communications work to look for overheating RF amplifiers and connectors on radio sites. The form factor does take getting used to, because it's like using a cell phone rather than holding it up to your eye like a scope. The resolution is great, and it's about as easy to see what you're looking at as a Flir with MDX thermal/visual overlay. (Which is useless at night ...

View full Review

Worth Every Penny

By SolarGod

Had it for two days now and it is amazing! Found out some interesting facts about thermal technology that I didn't know before. Found out how to hide from thermal completely was cool, just in the first day!! I just love it for camping when your in places that can eat you! Takes away wild animals seeing you first, with this it's the other way around! Sense of relief knowing that I can see a bear before he sees me!! With this thermal imager, nighttime is as safe as daytime! 300 yard range gi...

View full Review

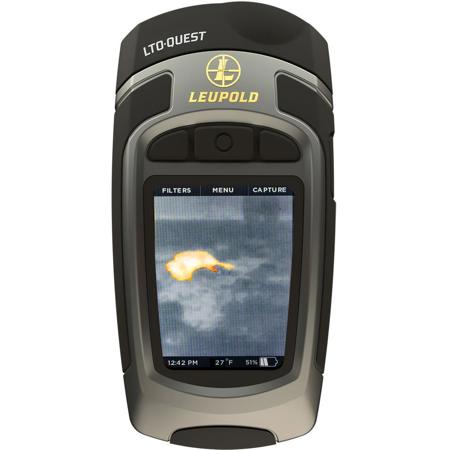

Built for the outdoors and the palm of your hand, the new Leupold LTO- Quest is an advanced thermal imaging viewer and camera with a built in 300 lumen, dual intensity flashlight. The rugged, rubberized body is small enough to fit in your pocket and weighing in under 7 ounces, it won't slow you down in the field. Featuring a 206x156 thermal sensor with a 20 degree field of view, the Quest can detect a thermal reading out to 300 yards using any one if its 8 color palettes.

Its controls are intuitive and the customizable settings let you choose from dozens of preferences that will allow the rechargeable Quest to run up to 10 hours. The micro USB port is used to both charge the Quest and download any images that are stored on the included, removable microSD card. The Leupold LTO-Quest is Designed, Machined and Assembled in the United States and backed by the Leupold 5 Year Electronics Warranty.

What's in the box:

  • Leupold LTO-Quest 1-4x Thermal Viewer
  • USB Cable
  • Power Adapter
  • microSD Card
  • Leupold 5 Year Electronics Warranty
